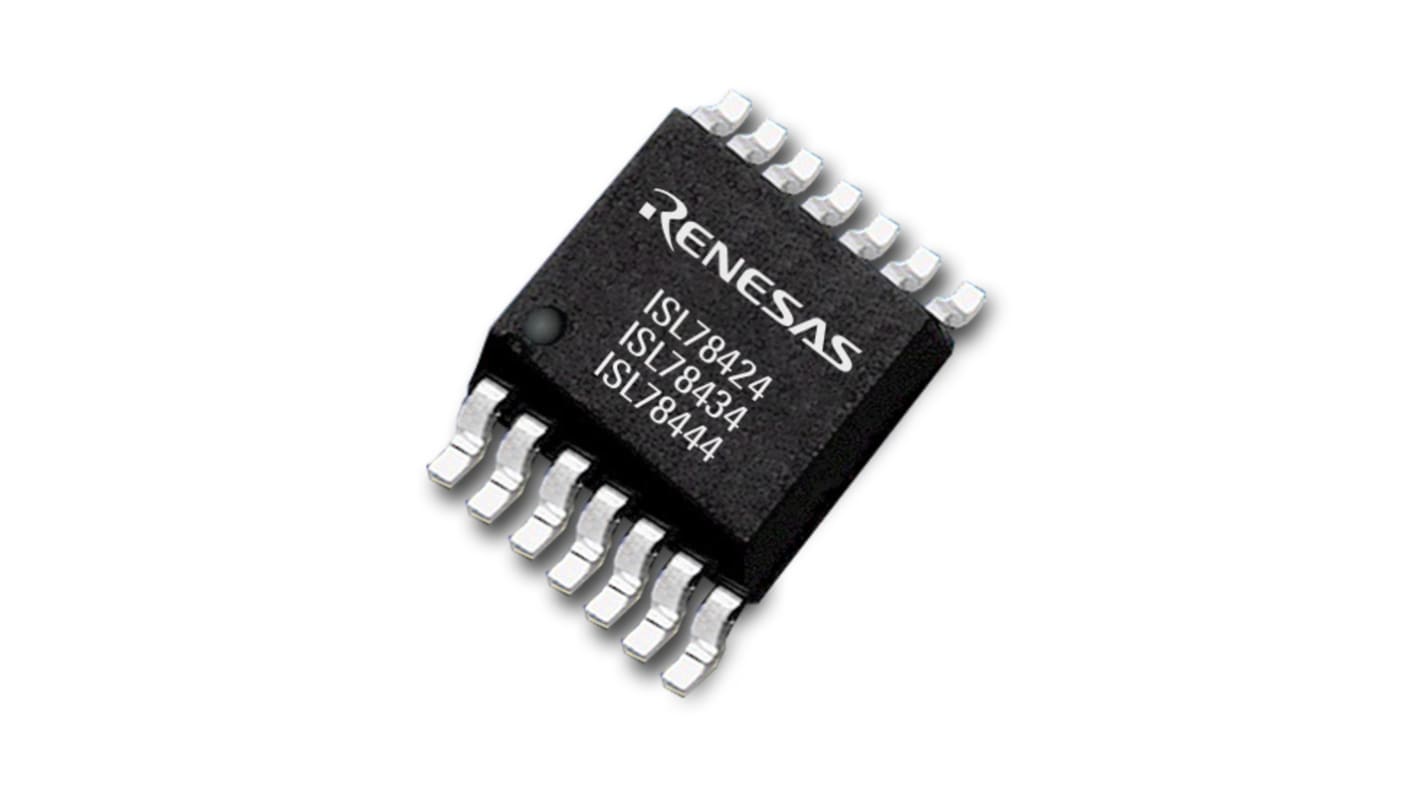

Renesas Electronics ISL78424AVEZ-T7A Motor Driver IC 14-Pin, HTSSOP

View all Motor Driver ICs

Subtotal (1 reel of 250 units)*

£827.75

(exc. VAT)

£993.25

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,750 unit(s) shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
250 +£3.311£827.75

*price indicative

RS Stock No.:
181-3178
Mfr. Part No.:
ISL78424AVEZ-T7A
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Maximum Output Current

3 (Source) A, 4 (Sink) A

Maximum Supply Voltage

18 V

Mounting Type

Surface Mount

Package Type

HTSSOP

Pin Count

14

Maximum Operating Supply Voltage

18 V

Minimum Operating Supply Voltage

8 V

Series

ISL78424

Length

5mm

Automotive Standard

AEC-Q100

Maximum Operating Temperature

+125 °C

Product Width

4.4mm

Dimensions

5 x 4.4 x 1.1mm

Product Length

5mm

Height

1.1mm

Width

4.4mm

Product Height

1.1mm

Minimum Operating Temperature

-40 °C

Patented gate-sensed adaptive dead time control provides shoot-through protection and minimized deadtime
Unique tri-level PWM input for integration with Renesas multiphase controllers (for example, ISL78225 and ISL78226)
3A sourcing and 4A sinking output current
On-chip 3Ω bootsrap FET switch
Programmable dead time delay with single resistor
Tri-level PWM input (ISL78424, ISL78444)
Independent HI/LI inputs (ISL78434)
Separate source/sink pins at driver outputs (ISL78424, ISL78434)
Bootstrap and VDD Undervoltage Lockout (UVLO)
Wide supply range: 8V to 18V
Bootstrap supply maximum voltage: 100V
Maximum phase voltage: 86V
Minimum phase voltage: -10V
