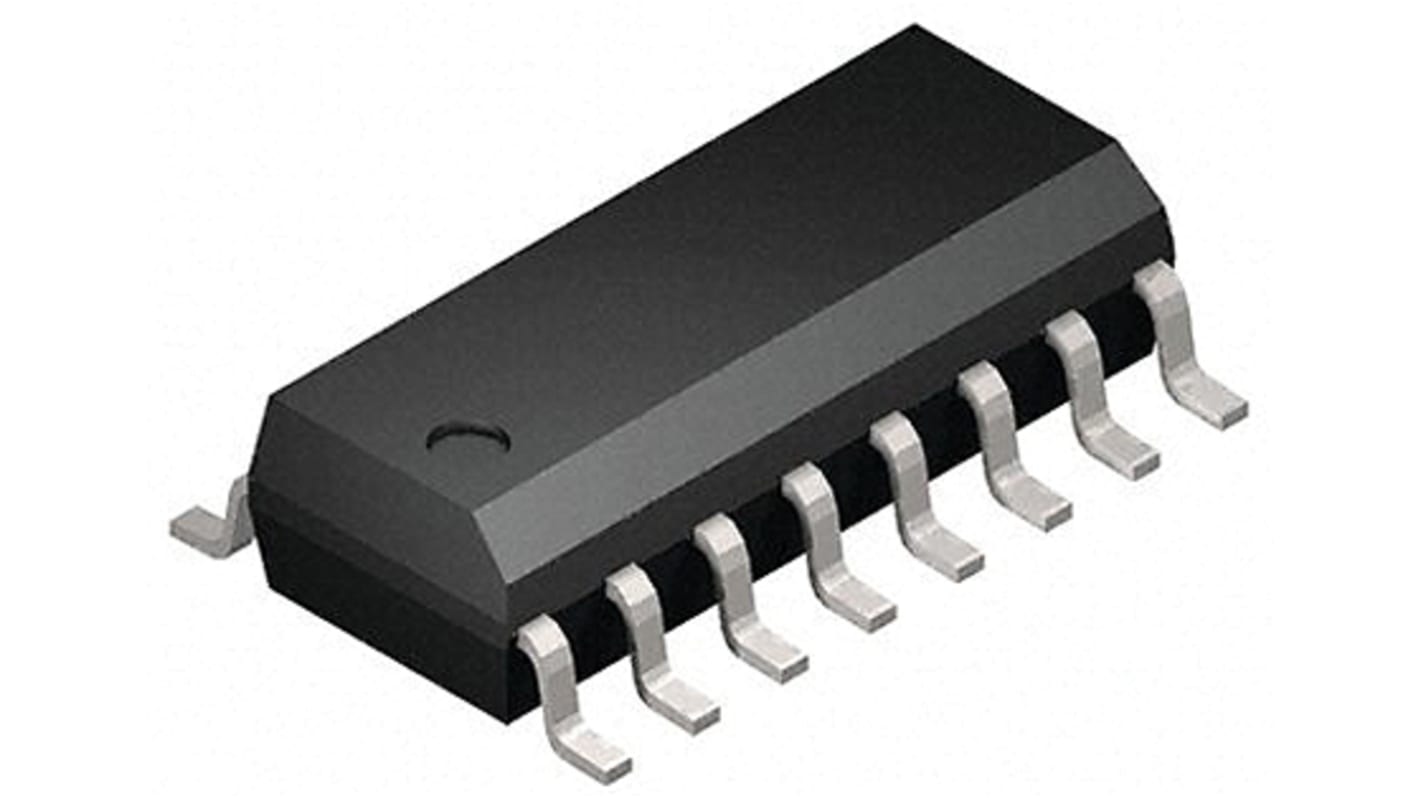

STMicroelectronics VNH7100ASTR Motor Driver IC 16-Pin, SOIC

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The device is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high-side driver and two low-side switches. Both switches are designed using STMicroelectronics’ well known and proven proprietary VIPower® M0 technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal/protection circuitry. The three dies are assembled in SO-16N package on electrically isolated leadframes. Moreover, its fully symmetrical mechanical design allows superior manufacturability at board level.

Output current: 15 A
3 V CMOS-compatible inputs
Undervoltage shutdown
Overvoltage clamp
Thermal shutdown
Cross-conduction protection
Current and power limitation
Very low standby power consumption
Protection against loss of ground and loss of VCC

Specifications
Attribute Value
Output Configuration Dual Half Bridge
Configuration H Bridge
Maximum Output Current 15A
Maximum Supply Voltage 41 V
Mounting Type Surface Mount
Package Type SOIC
Maximum Operating Supply Voltage 28 V
Pin Count 16
Minimum Operating Supply Voltage 4 V
Typical Switching Frequency 20kHz
Series VNH
Minimum Operating Temperature -40 °C
Product Height 1.25mm
Width 4mm
Height 1.25mm
Product Length 10mm
Length 10mm
Automotive Standard AEC-Q100
Maximum Operating Temperature +150 °C
Product Width 4mm
Dimensions 10 x 4 x 1.25mm
64 In stock for FREE next working day delivery
Price Each (In a Pack of 2)
£ 2.40
(exc. VAT)
£ 2.88
(inc. VAT)
Units
Per unit
Per Pack*
2 - 8
£2.40
£4.80
10 - 98
£2.045
£4.09
100 - 498
£1.775
£3.55
500 - 998
£1.515
£3.03
1000 +
£1.28
£2.56
*price indicative
