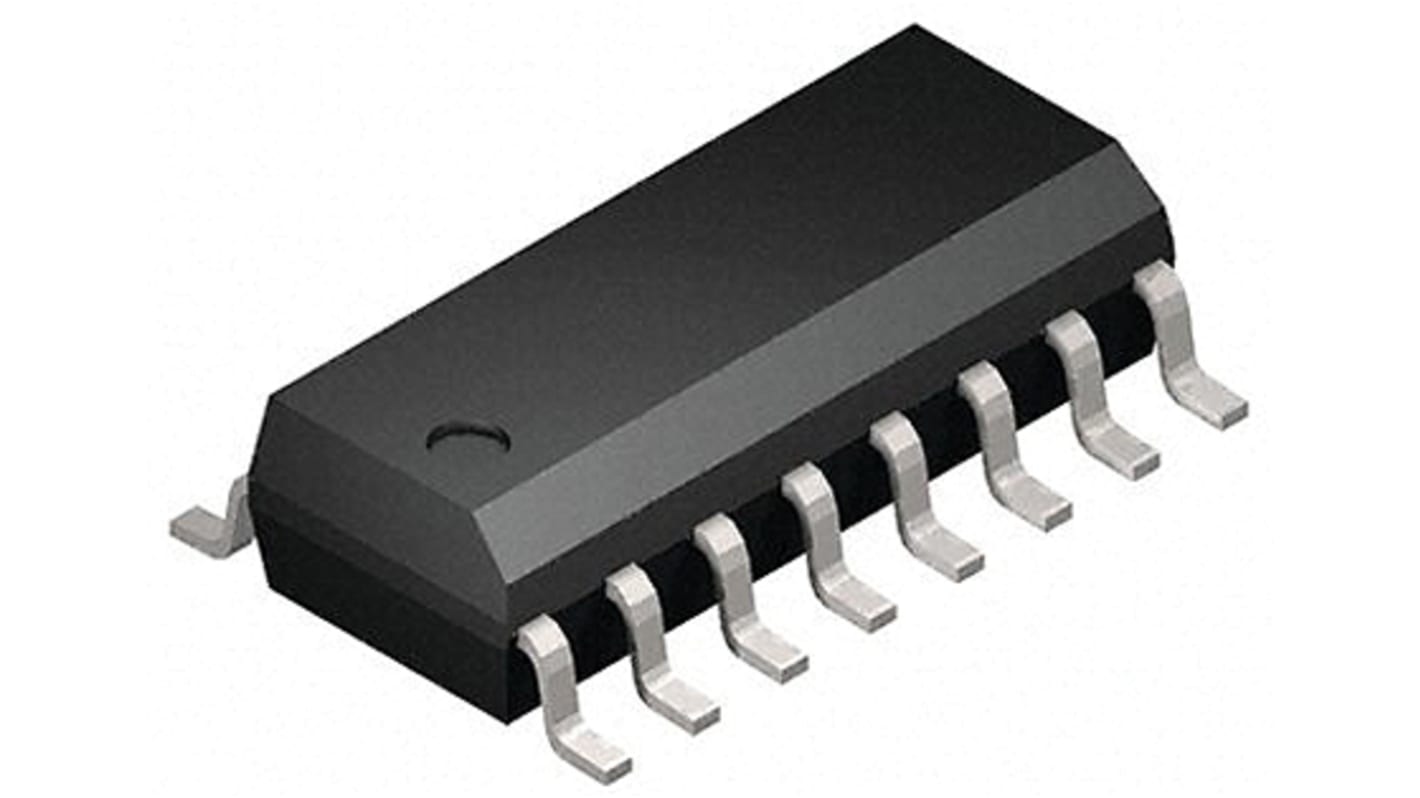

STMicroelectronics VNH7070BASTR, DC Motor Driver IC 16-Pin, SOIC

View all Motor Driver ICs

Subtotal (1 pack of 2 units)*

£4.43

(exc. VAT)

£5.316

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,448 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 +£2.215£4.43

*price indicative

Packaging Options:
RS Stock No.:
164-7023
Mfr. Part No.:
VNH7070BASTR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Motor Type

DC

Output Configuration

Dual Half Bridge

Configuration

H Bridge

Maximum Output Current

15A

Maximum Supply Voltage

38 V

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

16

Maximum Operating Supply Voltage

28 V

Minimum Operating Supply Voltage

4 V

Typical Switching Frequency

20kHz

Series

VNH

Product Length

10mm

Height

1.25mm

Length

10mm

Product Height

1.25mm

Minimum Operating Temperature

-40 °C

Dimensions

10 x 4 x 1.25mm

Width

4mm

Automotive Standard

AEC-Q100

Maximum Operating Temperature

+150 °C

Product Width

4mm

The device is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high-side driver and two low-side switches. Both switches are designed using STMicroelectronics’ well known and proven proprietary VIPower®M0-7 technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal/protection circuitry. The three dies are assembled in SO-16N package on electrically isolated lead-frames. Moreover, its fully symmetrical mechanical design allows superior manufacturability at board level.

Output current: 15 A
3 V CMOS-compatible inputs
Undervoltage shutdown
Overvoltage clamp
Thermal shutdown
Cross-conduction protection
Current and power limitation
Very low standby power consumption
Protection against loss of ground and loss of VCC
