STMicroelectronics VNH7040AYTR, DC Motor Driver IC 6-Pin, PSSO
- RS Stock No.:
- 164-6977
- Mfr. Part No.:
- VNH7040AYTR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 1000 units)*
£3,246.00
(exc. VAT)
£3,895.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,000 unit(s) shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £3.246 | £3,246.00 |
*price indicative
- RS Stock No.:
- 164-6977
- Mfr. Part No.:
- VNH7040AYTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Motor Type | DC | |
| Configuration | H Bridge | |
| Output Configuration | Dual Half Bridge | |
| Maximum Output Current | 35A | |
| Maximum Supply Voltage | 38 V | |
| Mounting Type | Surface Mount | |
| Package Type | PSSO | |
| Maximum Operating Supply Voltage | 28 V | |
| Pin Count | 6 | |
| Minimum Operating Supply Voltage | 4 V | |
| Typical Switching Frequency | 20kHz | |
| Series | VNH | |
| Minimum Operating Temperature | -40 °C | |
| Product Height | 2.4mm | |
| Dimensions | 10.5 x 7.6 x 2.4mm | |
| Height | 2.4mm | |
| Width | 7.6mm | |
| Product Width | 7.6mm | |
| Maximum Operating Temperature | +150 °C | |
| Automotive Standard | AEC-Q100 | |
| Length | 10.5mm | |
| Product Length | 10.5mm | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Motor Type DC | ||
Configuration H Bridge | ||
Output Configuration Dual Half Bridge | ||
Maximum Output Current 35A | ||
Maximum Supply Voltage 38 V | ||
Mounting Type Surface Mount | ||
Package Type PSSO | ||
Maximum Operating Supply Voltage 28 V | ||
Pin Count 6 | ||
Minimum Operating Supply Voltage 4 V | ||
Typical Switching Frequency 20kHz | ||
Series VNH | ||
Minimum Operating Temperature -40 °C | ||
Product Height 2.4mm | ||
Dimensions 10.5 x 7.6 x 2.4mm | ||
Height 2.4mm | ||
Width 7.6mm | ||
Product Width 7.6mm | ||
Maximum Operating Temperature +150 °C | ||
Automotive Standard AEC-Q100 | ||
Length 10.5mm | ||
Product Length 10.5mm | ||

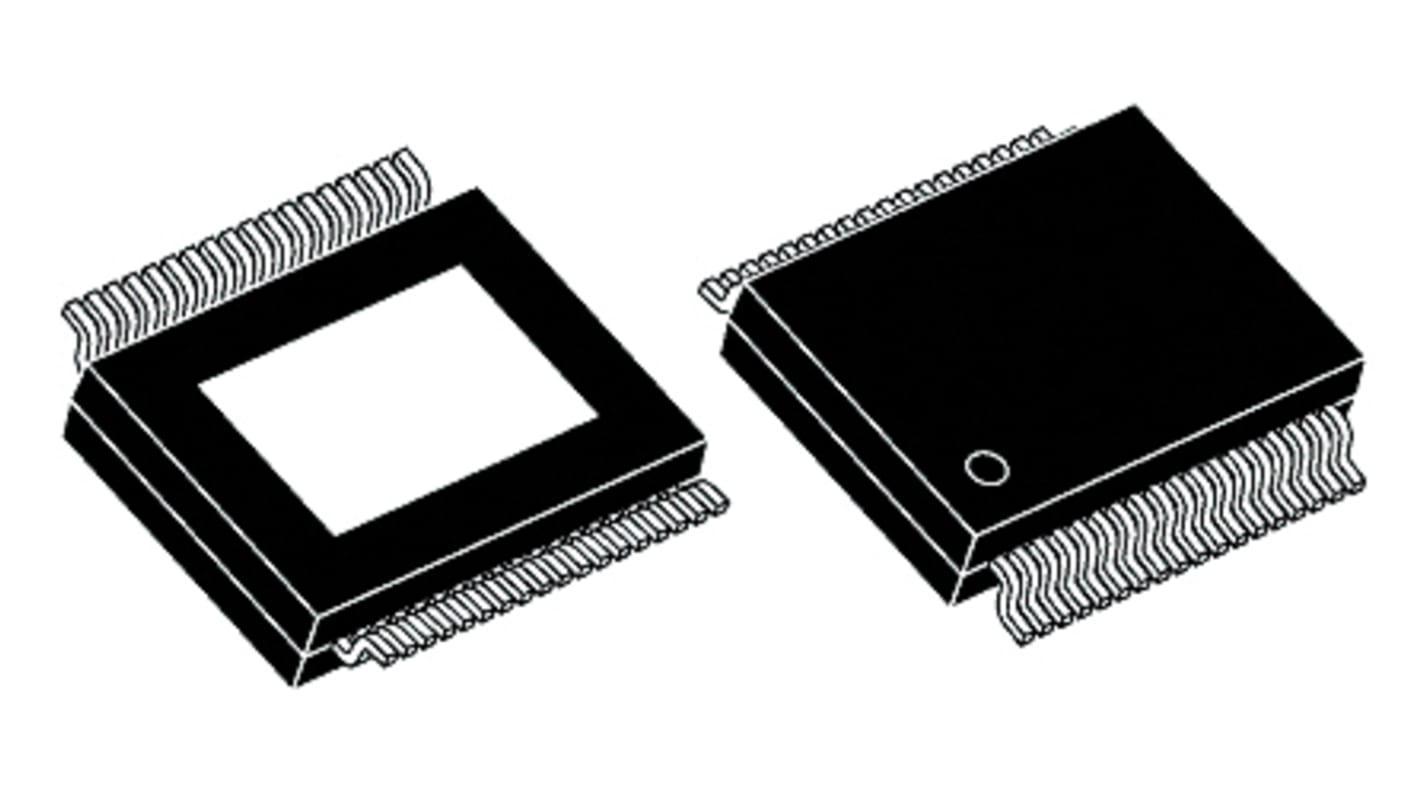

The device is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high-side driver and two low-side switches. All switches are designed using STMicroelectronics® well known and proven proprietary VIPower® M0 technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal/protection circuitry. The three dice are assembled in a PowerSSO-36 package equipped with three exposed islands for optimized dissipation performances. This package is specifically designed for the harsh automotive environment and offers improved thermal performance thanks to exposed die pads.
Output current: 35 A
3 V CMOS compatible inputs
Undervoltage shutdown
Overvoltage clamp
Thermal shutdown
Cross-conduction protection
Current and power limitation
Very low standby power consumption
Protection against loss of ground and loss of VCC
3 V CMOS compatible inputs
Undervoltage shutdown
Overvoltage clamp
Thermal shutdown
Cross-conduction protection
Current and power limitation
Very low standby power consumption
Protection against loss of ground and loss of VCC
