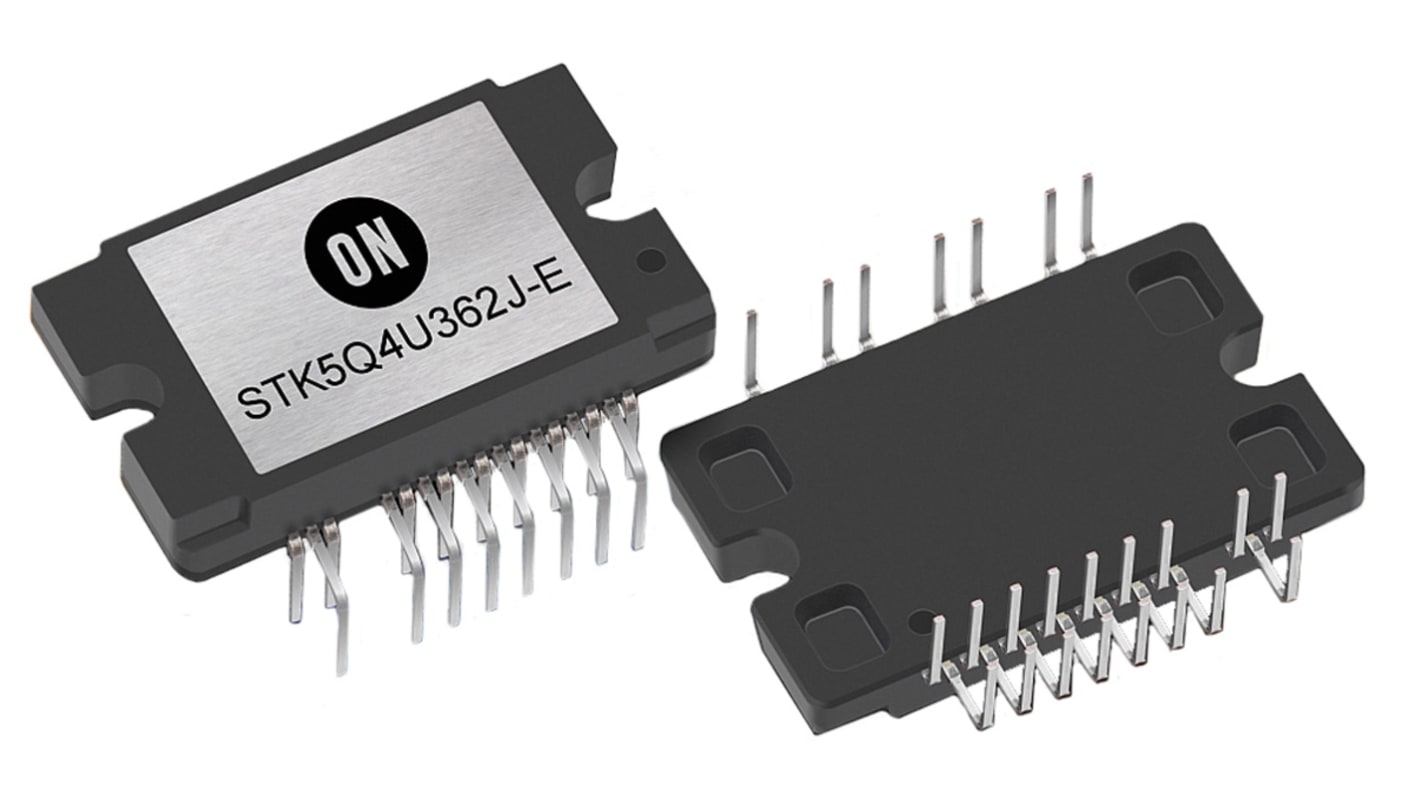

onsemi STK5Q4U362J-E, AC Induction Motor Driver IC, 600 V 10A 38-Pin, SPCM
- RS Stock No.:
- 163-0317
- Mfr. Part No.:
- STK5Q4U362J-E
- Brand:
- ON Semiconductor
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 163-0317
- Mfr. Part No.:
- STK5Q4U362J-E
- Brand:
- ON Semiconductor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ON Semiconductor | |
Motor Type | AC Induction | |
Output Configuration | 3 Phase | |
Maximum IGBT Collector Current | 10A | |
Maximum Collector Emitter Voltage | 600 V | |
Mounting Type | Through Hole | |
Package Type | SPCM | |
Pin Count | 38 | |
Maximum Operating Supply Voltage | 16.5 V | |
Minimum Operating Supply Voltage | 13.5 V | |
Typical Switching Frequency | 1 → 20kHz | |
Series | Intelligent Power Module | |
Maximum Operating Temperature | +100 °C | |
Height | 4.8mm | |
Length | 30.1mm | |
Width | 18.7mm | |
Dimensions | 30.1 x 18.7 x 4.8mm | |
Minimum Operating Temperature | -20 °C | |
Select all | ||
---|---|---|
Brand ON Semiconductor | ||
Motor Type AC Induction | ||
Output Configuration 3 Phase | ||
Maximum IGBT Collector Current 10A | ||
Maximum Collector Emitter Voltage 600 V | ||
Mounting Type Through Hole | ||
Package Type SPCM | ||
Pin Count 38 | ||
Maximum Operating Supply Voltage 16.5 V | ||
Minimum Operating Supply Voltage 13.5 V | ||
Typical Switching Frequency 1 → 20kHz | ||
Series Intelligent Power Module | ||
Maximum Operating Temperature +100 °C | ||
Height 4.8mm | ||
Length 30.1mm | ||
Width 18.7mm | ||
Dimensions 30.1 x 18.7 x 4.8mm | ||
Minimum Operating Temperature -20 °C | ||
- COO (Country of Origin):
- MY
Intelligent Power Modules (IPM) in Compact DIP Package for 3-Phase Motor Drive
The Intelligent Power Module (IPM) is a fully integrated three phase inverter power stage. It is best suited for driving permanent magnet synchronous motors (PMSM), brushless-DC (BLDC) motors and AC asynchronous motors.
3-Phase IGBT Motor Drive module with integrated drivers
Three Separate Emitter Connections
Cross-Conduction protection
Current Sense with an External Resistor
Enable Pin for external shutdown
Under Voltage lockout protection
Adjustable Overcurrent protection level
Compact ( 29.6 x 18.2 mm) Dual in Line Package
Three Separate Emitter Connections
Cross-Conduction protection
Current Sense with an External Resistor
Enable Pin for external shutdown
Under Voltage lockout protection
Adjustable Overcurrent protection level
Compact ( 29.6 x 18.2 mm) Dual in Line Package
