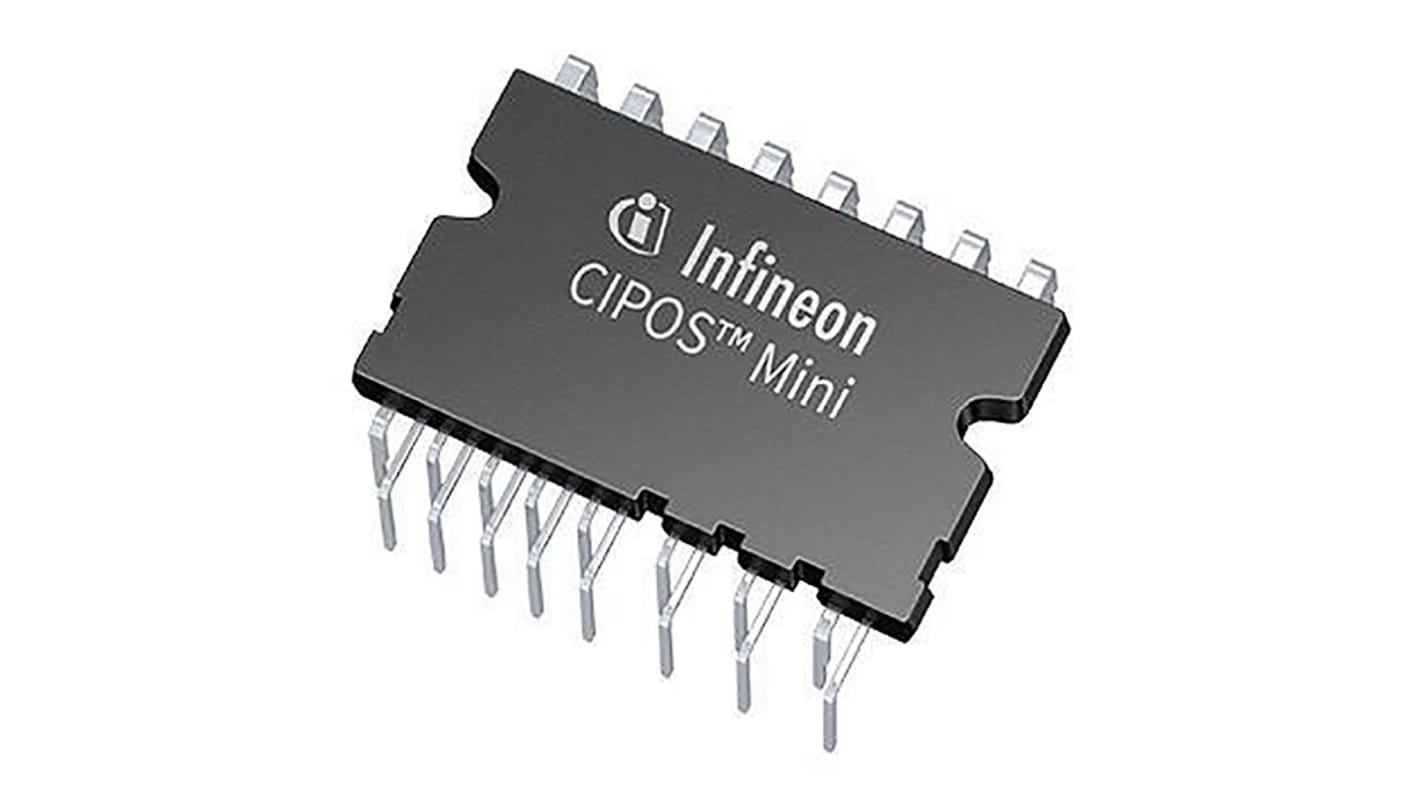

Infineon IGCM04F60GAXKMA1, AC Motor, Permanent Magnet Motor Motor Driver IC, 2 V 8A 24-Pin

View all Motor Driver ICs

Subtotal (1 unit)*

£7.32

(exc. VAT)

£8.78

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
1 +£7.32

*price indicative

RS Stock No.:
133-9826
Mfr. Part No.:
IGCM04F60GAXKMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Motor Type

AC Motor, Permanent Magnet Motor

Output Configuration

Half Bridge

Configuration

3 Phase

Maximum IGBT Collector Current

8A

Maximum Output Current

4A

Maximum Supply Voltage

600 V

Maximum Collector Emitter Voltage

2 V

Mounting Type

Through Hole

Pin Count

24

Maximum Operating Supply Voltage

400 V

Minimum Operating Supply Voltage

0 V

Typical Switching Frequency

20 (Maximum)kHz

Series

CIPOS

Width

21mm

Minimum Operating Temperature

-40 °C

Dimensions

36 x 21 x 3.1mm

Height

3.1mm

Maximum Operating Temperature

+150 °C

Length

36mm

COO (Country of Origin):
KR

Intelligent Power Modules (IPM), CIPOS family, Infineon


The Control Integrated Power System (CIPOS) are families of highly integrated, compact power modules. They are designed to drive motors in home appliances, fan and pump applications. These energy-efficient Intelligent Power Modules (IPM) deliver increased power density with enhanced system ruggedness and reliability that improve motor system performance and energy efficiency.


Motor Controllers & Drivers, Infineon
