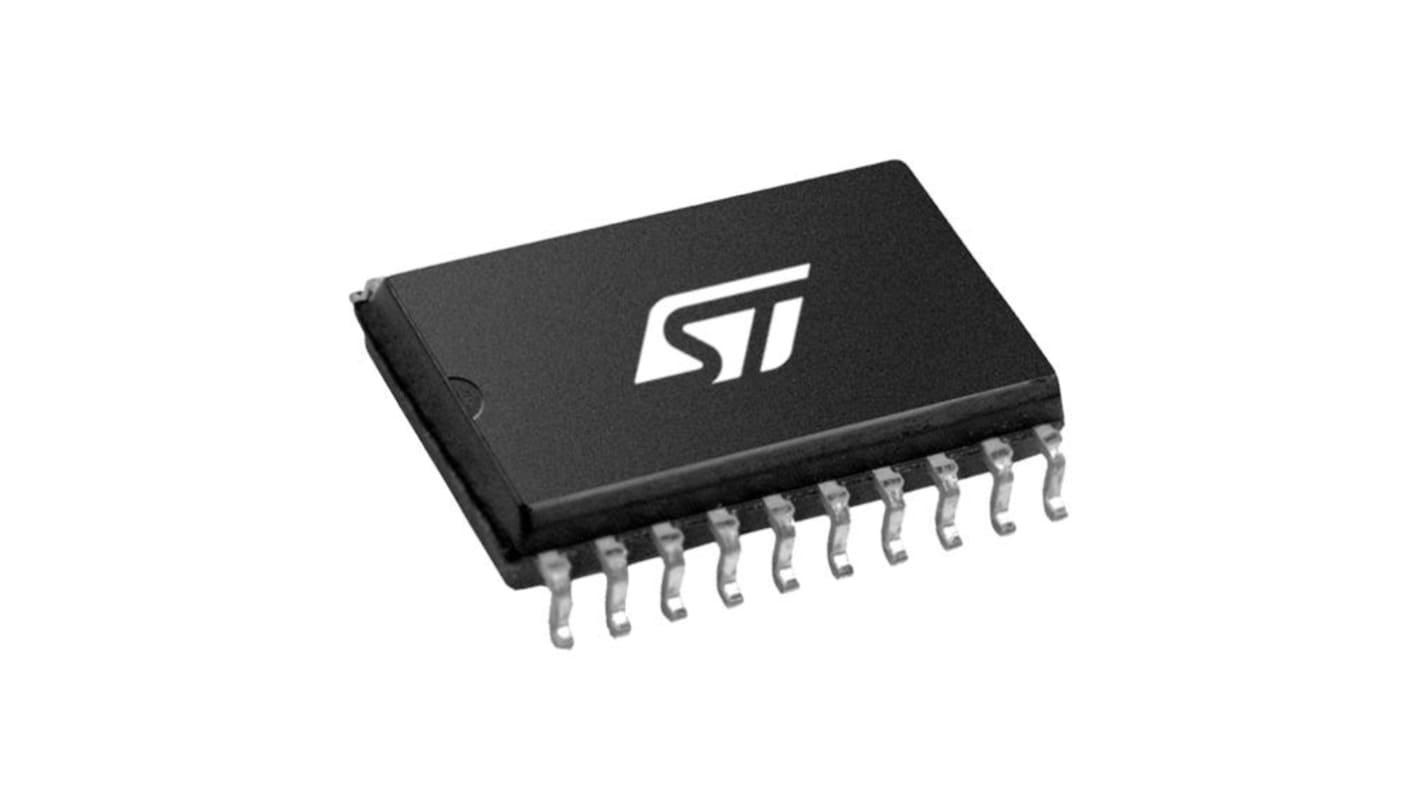

STMicroelectronics L6201013TR, DC Motor Motor Driver IC 20-Pin, SO-20
- RS Stock No.:
- 151-999
- Mfr. Part No.:
- L6201013TR
- Brand:
- STMicroelectronics
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 1000 units)*
£4,090.00
(exc. VAT)
£4,910.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | £4.09 | £4,090.00 |
| 2000 + | £4.039 | £4,039.00 |
*price indicative
- RS Stock No.:
- 151-999
- Mfr. Part No.:
- L6201013TR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Motor Type | DC Motor | |
| Product Type | Motor Driver IC | |
| Configuration | Full Bridge | |
| Mount Type | Surface | |
| Package Type | SO-20 | |
| Pin Count | 20 | |
| Output Current | 2mA | |
| Minimum Supply Voltage | 12V | |
| Maximum Supply Voltage | 48V | |
| Minimum Operating Temperature | -40°C | |
| Typical Switching Frequency | 100kHz | |
| Maximum Operating Temperature | 150°C | |
| Series | L6201 | |
| Width | 14.5mm | |
| Standards/Approvals | RoHS | |
| Length | 16mm | |
| Height | 3.6mm | |
| Supply Current | 15mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Motor Type DC Motor | ||
Product Type Motor Driver IC | ||
Configuration Full Bridge | ||
Mount Type Surface | ||
Package Type SO-20 | ||
Pin Count 20 | ||
Output Current 2mA | ||
Minimum Supply Voltage 12V | ||
Maximum Supply Voltage 48V | ||
Minimum Operating Temperature -40°C | ||
Typical Switching Frequency 100kHz | ||
Maximum Operating Temperature 150°C | ||
Series L6201 | ||
Width 14.5mm | ||
Standards/Approvals RoHS | ||
Length 16mm | ||
Height 3.6mm | ||
Supply Current 15mA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
The STMicroelectronics full bridge driver for motor control applications realized in Multipower-BCD technology which combines isolated DMOS power transistors with CMOS and Bipolar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The DMOS output transistors can operate at supply voltages up to 42V and efficiently at high switching speeds.
Thermal shutdown
Internal logic supply
High efficiency
