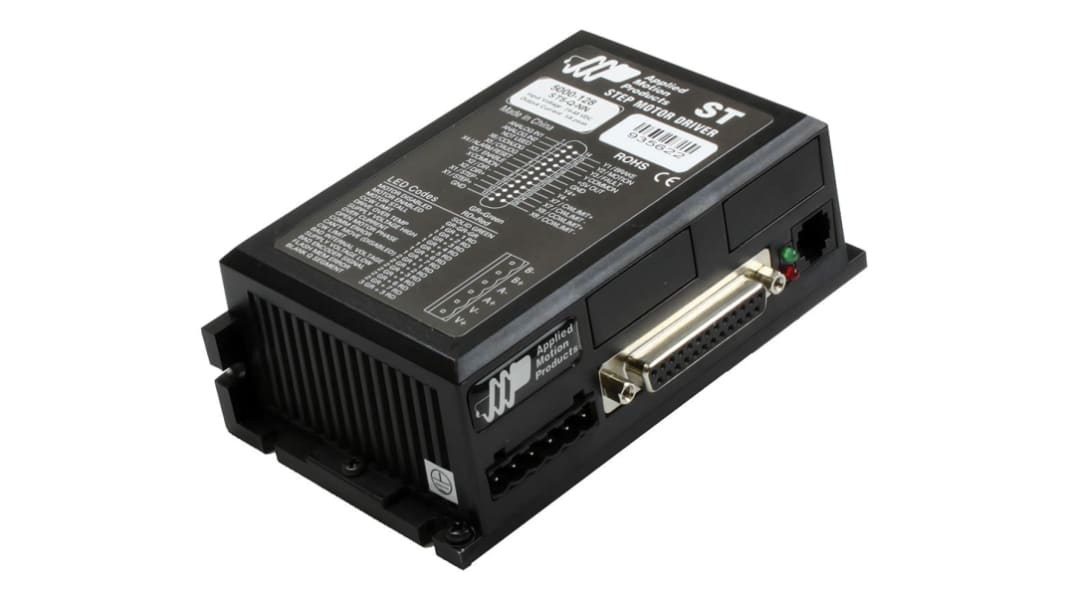

Applied Motion Systems Stepper Motor Controller, 0.1 → 5 A, 24 → 48 V dc
- RS Stock No.:
- 877-7225
- Mfr. Part No.:
- ST5-Q-NN
- Brand:
- Applied Motion Systems
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 877-7225
- Mfr. Part No.:
- ST5-Q-NN
- Brand:
- Applied Motion Systems
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Applied Motion Systems | |
| Current Rating | 0.1 → 5 A | |
| Voltage Rating | 24 → 48 V dc | |
| Overall Length | 127mm | |
| Overall Width | 76mm | |
| Overall Depth | 44.5mm | |
| Select all | ||
|---|---|---|
Brand Applied Motion Systems | ||
Current Rating 0.1 → 5 A | ||
Voltage Rating 24 → 48 V dc | ||
Overall Length 127mm | ||
Overall Width 76mm | ||
Overall Depth 44.5mm | ||
- COO (Country of Origin):
- US
ST5-Q and ST10-Q - Stepper Drives
ST5-Q and ST10-Q - High Performance Stepper Motor Drives with multiple control options.
Stepper Motor Drives ST-Q
Advanced Current Control
Anti-Resonance
Torque Ripple Smoothing
Microstep Emulation
Stall Detection/Prevention
Executes stored Q programs
Networking with RS-485 or Ethernet options
Conditional processing & multi-tasking
Math functions, register manipulation
Encoder following
Pulse and direction: pulse/direction, CW/CCW, A/B quadrature
RS232 interface
8 digital inputs, 2 analog inputs
4 digital outputs
