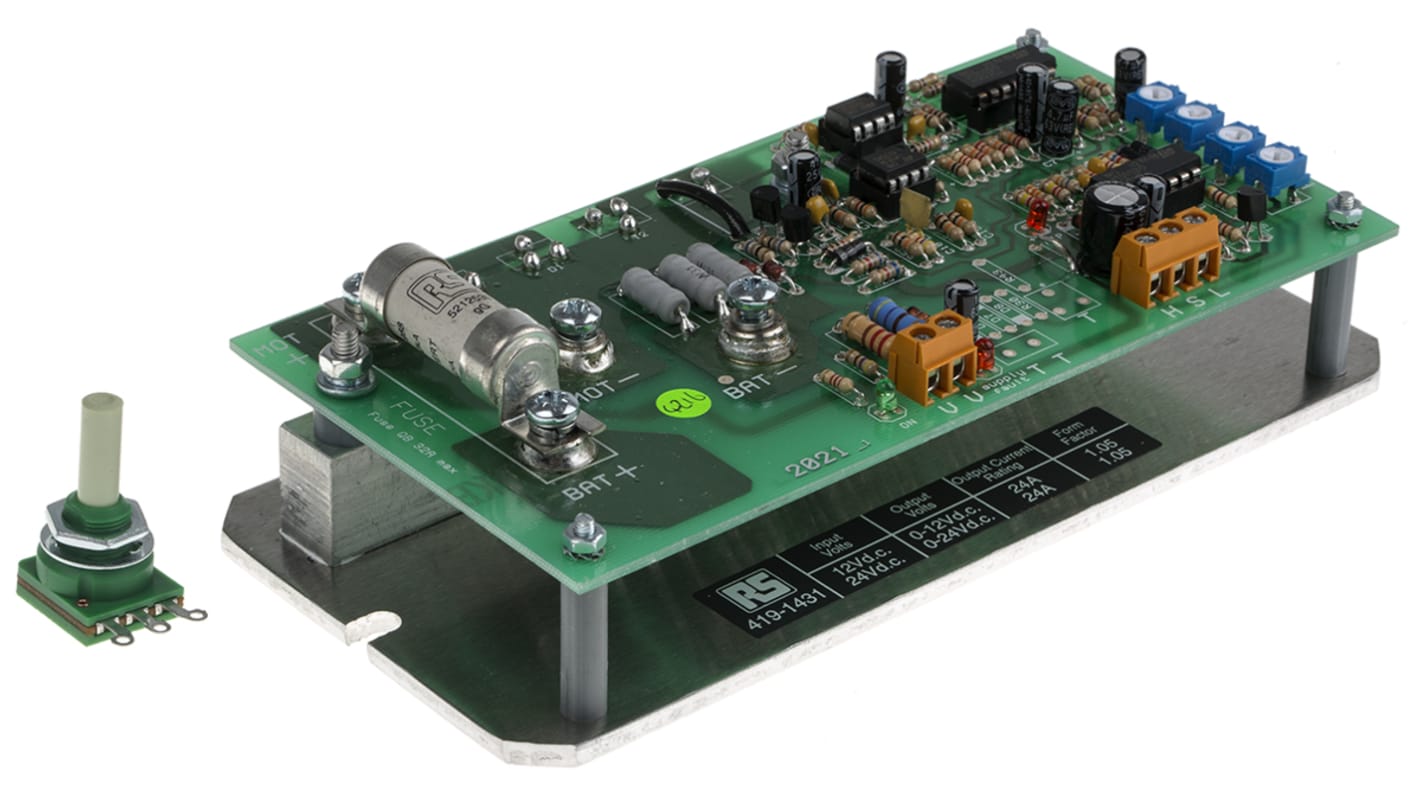

RS PRO, DC Motor Controller, Potentiometer Control, 12 V dc, 24 V dc, 24 A, Panel Mount
- RS Stock No.:
- 419-1431
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 419-1431
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Supply Voltage | 12 V dc, 24 V dc | |
| Current Rating | 24 A | |
| Voltage Rating | 24 V dc | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Supply Voltage 12 V dc, 24 V dc | ||
Current Rating 24 A | ||
Voltage Rating 24 V dc | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Low Voltage Type 2021
Suitable for permanent magnet and wound field dc motors
Supply 12 or 24Vdc battery or linear power supply
Continuous rating 24A, maximum current limited to less than 36A
Adjustable electronic current limit up to 36A
Speed control by potentiometer
Soft start
Heatsink thermally protected
Running/Fault/Trip indication
Adjustable load compensation
Single quadrant drive
Supply 12 or 24Vdc battery or linear power supply
Continuous rating 24A, maximum current limited to less than 36A
Adjustable electronic current limit up to 36A
Speed control by potentiometer
Soft start
Heatsink thermally protected
Running/Fault/Trip indication
Adjustable load compensation
Single quadrant drive
