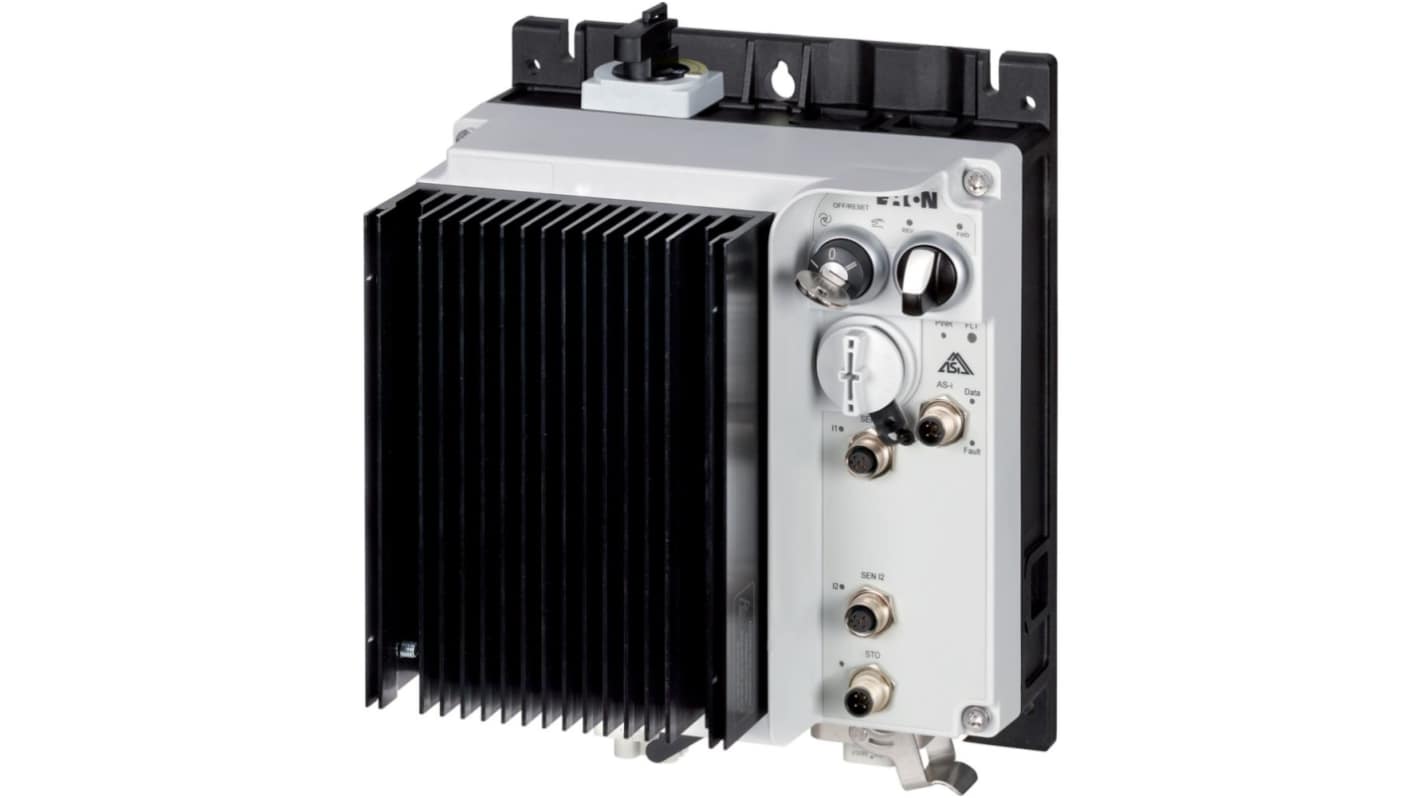

Eaton 2.2 kW Motor Controller, 400/480 V ac, 3 Phase, 5.6 A, Speed Controller Function
- RS Stock No.:
- 252-621
- Mfr. Part No.:
- 198830 RASP5-5402A31-412R110S1
- Brand:
- Eaton
Subtotal (1 unit)*
£1,299.55
(exc. VAT)
£1,559.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,299.55 |
*price indicative
- RS Stock No.:
- 252-621
- Mfr. Part No.:
- 198830 RASP5-5402A31-412R110S1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Motor Controller | |
| Number of Phases | 3 | |
| Control Function | Speed Controller | |
| Supply Voltage | 400/480 V ac | |
| Output Voltage | 500 V | |
| Current Rating | 5.6 A | |
| Power Rating | 2.2kW | |
| Overall Length | 157mm | |
| Overall Width | 220mm | |
| Overall Depth | 270 mm | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 40°C | |
| Series | Moeller | |
| Standards/Approvals | RoHS, UL 61800-5-1, UL Approval, CE IEC/EN 61800-5-1 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Motor Controller | ||
Number of Phases 3 | ||
Control Function Speed Controller | ||
Supply Voltage 400/480 V ac | ||
Output Voltage 500 V | ||
Current Rating 5.6 A | ||
Power Rating 2.2kW | ||
Overall Length 157mm | ||
Overall Width 220mm | ||
Overall Depth 270 mm | ||
IP Rating IP65 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 40°C | ||
Series Moeller | ||
Standards/Approvals RoHS, UL 61800-5-1, UL Approval, CE IEC/EN 61800-5-1 | ||
- COO (Country of Origin):
- GB
The Eaton Speed controller is engineered to deliver exceptional performance and reliability in speed regulation applications. This innovative product accommodates a wide range of motor types, including synchronous reluctance and BLDC motors, making it an ideal choice for diverse operational settings. With a robust input voltage capability of up to 480 V, the controller supports multiple operational modes, ensuring flexibility for your unique requirements.
Provides a vertical mounting option for versatile installation
Incorporates a durable degree of protection rated IP65 for reliable performance
Features adjustable braking torque for enhanced control in various applications
Supports a maximum output frequency of 500 Hz for high performance applications
Adapts smoothly to both domestic and industrial environments
