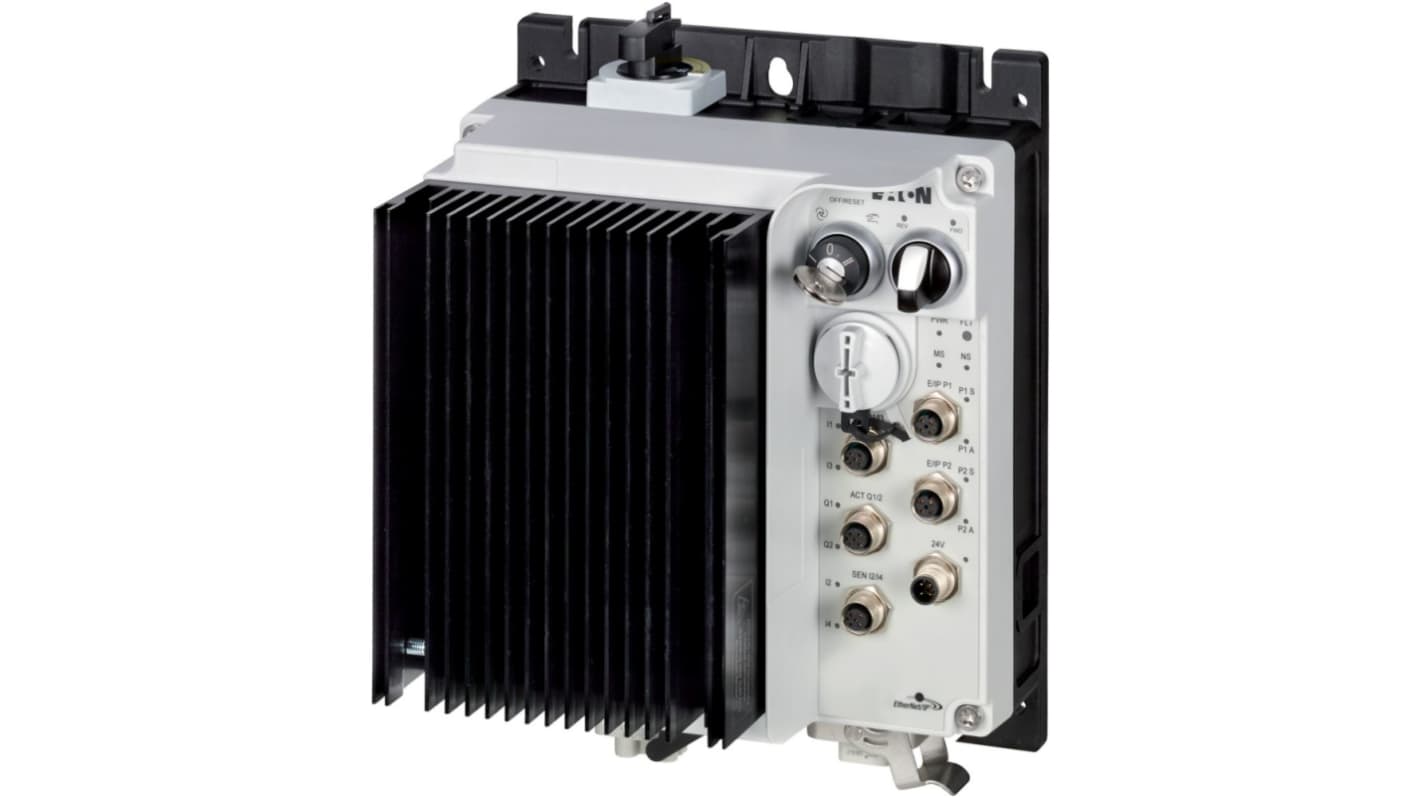

Eaton 1.5 kW, 400V ac, 480 V ac, 3 Phase, 4.3A Motor Controller, Speed Controller Function
- RS Stock No.:
- 252-364
- Mfr. Part No.:
- 198884 RASP5-4420EIP-412R000S1
- Brand:
- Eaton
Subtotal (1 unit)*
£1,340.54
(exc. VAT)
£1,608.65
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,340.54 |
*price indicative
- RS Stock No.:
- 252-364
- Mfr. Part No.:
- 198884 RASP5-4420EIP-412R000S1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Phases | 3 | |
| Product Type | Motor Controller | |
| Control Function | Speed Controller | |
| Supply Voltage | 400V ac, 480V ac | |
| Output Voltage | 480V | |
| Current Rating | 4.3A | |
| Power Rating | 1.5kW | |
| Overall Length | 270mm | |
| Overall Width | 220mm | |
| Overall Depth | 157mm | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 40°C | |
| Series | Moeller | |
| Standards/Approvals | IEC/EN 61800-5-1, UL Approval, RoHS, UL 61800-5-1, CE | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Phases 3 | ||
Product Type Motor Controller | ||
Control Function Speed Controller | ||
Supply Voltage 400V ac, 480V ac | ||
Output Voltage 480V | ||
Current Rating 4.3A | ||
Power Rating 1.5kW | ||
Overall Length 270mm | ||
Overall Width 220mm | ||
Overall Depth 157mm | ||
IP Rating IP65 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 40°C | ||
Series Moeller | ||
Standards/Approvals IEC/EN 61800-5-1, UL Approval, RoHS, UL 61800-5-1, CE | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
The Eaton Speed controller rapid Link excels in delivering precise control for your motor applications. Designed with a user-friendly interface, it accommodates a range of motors including synchronous reluctance and brushless DC varieties. This innovative controller also features comprehensive diagnostics via Ethernet IP, ensuring optimal performance with seamless integration into your existing systems.
Features adjustable current limitation for tailored performance
Supports multiple sensor inputs for dynamic operation
Ensures compliance with stringent electromagnetic compatibility standards
Delivers consistent performance with its robust heat dissipation capabilities
