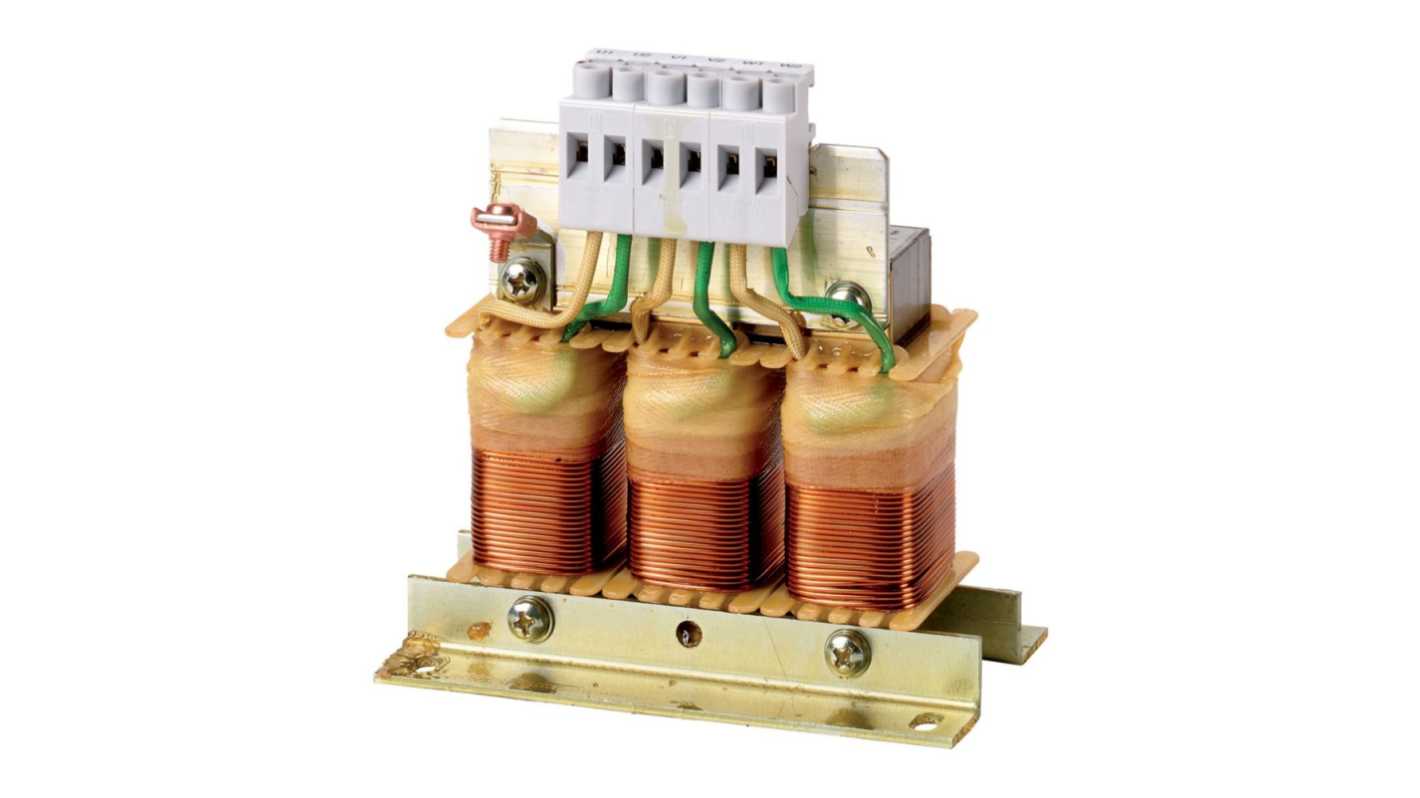

Eaton DX Series Motor Choke for Use with DA1, DC1, DE1, DG1, DM1, 265mm Length, 3-Phase
- RS Stock No.:
- 258-403
- Mfr. Part No.:
- 269542 DX-LM3-016
- Brand:
- Eaton
Subtotal (1 unit)*
£131.78
(exc. VAT)
£158.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £131.78 |
*price indicative
- RS Stock No.:
- 258-403
- Mfr. Part No.:
- 269542 DX-LM3-016
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Accessory Type | Choke | |
For Use With | DA1, DC1, DE1, DG1, DM1 | |
Series | DX | |
Current Rating | 16 A | |
Electrical Phase | 3 | |
Length | 265mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Accessory Type Choke | ||
For Use With DA1, DC1, DE1, DG1, DM1 | ||
Series DX | ||
Current Rating 16 A | ||
Electrical Phase 3 | ||
Length 265mm | ||
- COO (Country of Origin):
- HU
The Eaton three-phase motor choke is expertly tailored for enhancing the performance of variable frequency drives. Designed to operate efficiently within a voltage range of up to 750 V and across a frequency range of 0 to 400 Hz, this device ensures optimal power supply for motor applications. The motor choke features a robust design with a 1.5 mH inductance, providing essential filtering capabilities that help to mitigate electrical noise and improve the overall reliability of motor control systems. Its compact dimensions allow for easy integration into existing setups while maintaining a duty factor of 100%, ensuring it remains effective under demanding conditions. The unit's high-quality construction also assures compliance with various industry standards, making it a reliable choice for professionals seeking durability and efficiency.
Robust three-phase design enhances motor control performance
Compact footprint facilitates straightforward installation
Certified for use in North America and Europe, ensuring compliance
Provides excellent filtering to reduce electrical noise
Versatile operating temperature range for various applications
Designed for high efficiency with low power loss
IP20 rating protects against solid objects and indirect moisture
Flexible mounting options to suit different installation needs
Compact footprint facilitates straightforward installation
Certified for use in North America and Europe, ensuring compliance
Provides excellent filtering to reduce electrical noise
Versatile operating temperature range for various applications
Designed for high efficiency with low power loss
IP20 rating protects against solid objects and indirect moisture
Flexible mounting options to suit different installation needs
