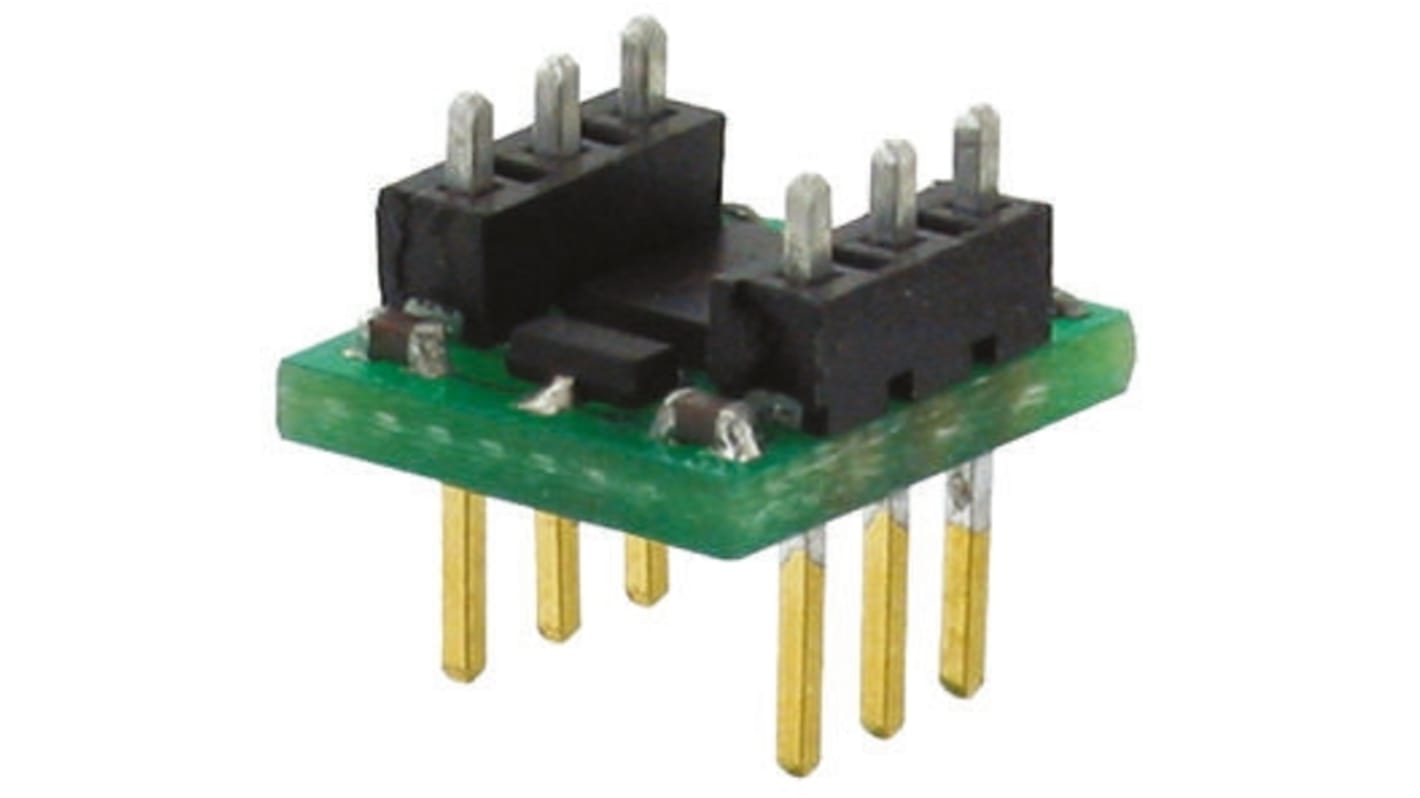

Parallax Inc 2-Axis Surface Mount Sensor, SMD, Digital PWM, 5-Pin
- RS Stock No.:
- 666-6631
- Mfr. Part No.:
- 28017
- Brand:
- Parallax Inc
Image representative of range
Discontinued
- RS Stock No.:
- 666-6631
- Mfr. Part No.:
- 28017
- Brand:
- Parallax Inc
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Parallax Inc | |
| Sensor Type | Accelerometer | |
| Number of Axis | 2 | |
| Technology | Analogue | |
| Mounting Type | Surface Mount | |
| Interface Type | Digital PWM | |
| Maximum Operating Supply Voltage | 5 V | |
| Minimum Operating Supply Voltage | 3.3 V | |
| Package Type | SMD | |
| Pin Count | 5 | |
| Maximum Operating Temperature | +70 °C | |
| Minimum Operating Temperature | 0 °C | |
| Select all | ||
|---|---|---|
Brand Parallax Inc | ||
Sensor Type Accelerometer | ||
Number of Axis 2 | ||
Technology Analogue | ||
Mounting Type Surface Mount | ||
Interface Type Digital PWM | ||
Maximum Operating Supply Voltage 5 V | ||
Minimum Operating Supply Voltage 3.3 V | ||
Package Type SMD | ||
Pin Count 5 | ||
Maximum Operating Temperature +70 °C | ||
Minimum Operating Temperature 0 °C | ||
- COO (Country of Origin):
- CN
2-axis accelerometer module
The Memsic 2125 is a low-cost thermal accelerometer chip capable of measuring tilt, collision, static and dynamic acceleration, rotation and vibration with a range of ±3g on two axes.
Measures ±3g on each axis
Communication: TTL/CMOS compatible 100Hz PWM output signal with duty cycle proportional to acceleration
Analogue temperature output (TOut pin)
Fully temperature compensated
Power supply: +3.3 to +5Vdc @ < 5mA
6-pin 0.1in pitch DIP module
Dimensions: 10.7 x 10.7 x 11.8mm
Operating temperature range: 0 to +70°C
Communication: TTL/CMOS compatible 100Hz PWM output signal with duty cycle proportional to acceleration
Analogue temperature output (TOut pin)
Fully temperature compensated
Power supply: +3.3 to +5Vdc @ < 5mA
6-pin 0.1in pitch DIP module
Dimensions: 10.7 x 10.7 x 11.8mm
Operating temperature range: 0 to +70°C
Parallax offer an extensive range of sensor, communication and interface modules for the experimenter working on robotic systems. Most are supplied with extensive documentation making them ideal for use in education. Further information and tutorials are available from the Parallax website: http://learn.parallax.com/
