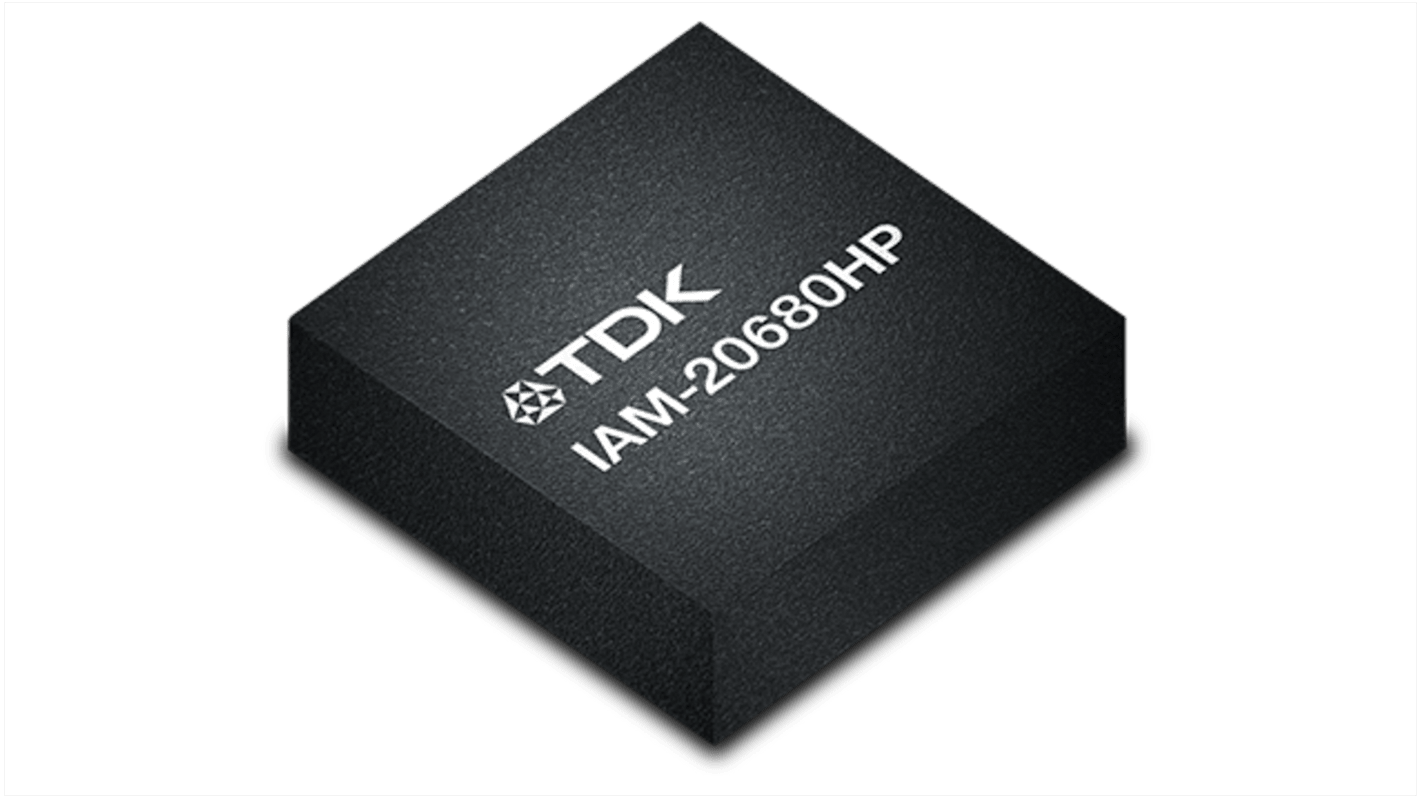

InvenSense 6 Axis Surface Motion Tracking device 1.71 V 3.6V, I2C/SPI, LGA, 16-Pin
- RS Stock No.:
- 218-2209
- Mfr. Part No.:
- IAM-20680HP
- Brand:
- InvenSense
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£11.17
(exc. VAT)
£13.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 453 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £11.17 |
| 50 - 99 | £9.33 |
| 100 - 499 | £8.37 |
| 500 + | £7.76 |
*price indicative
- RS Stock No.:
- 218-2209
- Mfr. Part No.:
- IAM-20680HP
- Brand:
- InvenSense
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | InvenSense | |
| Sensor Type | Motion Sensor Module | |
| Product Type | Motion Tracking device | |
| Number of Axis | 6 | |
| Technology | Digital | |
| Mount Type | Surface | |
| Interface Type | I2C/SPI | |
| Minimum Supply Voltage | 1.71V | |
| Maximum Supply Voltage | 3.6V | |
| Package Type | LGA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Pin Count | 16 | |
| Height | 0.75mm | |
| Standards/Approvals | AEC-Q100 | |
| Series | IAM-20680HP | |
| Length | 3mm | |
| Automotive Standard | No | |
| Supply Current | 3mA | |
| Select all | ||
|---|---|---|
Brand InvenSense | ||
Sensor Type Motion Sensor Module | ||
Product Type Motion Tracking device | ||
Number of Axis 6 | ||
Technology Digital | ||
Mount Type Surface | ||
Interface Type I2C/SPI | ||
Minimum Supply Voltage 1.71V | ||
Maximum Supply Voltage 3.6V | ||
Package Type LGA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Pin Count 16 | ||
Height 0.75mm | ||
Standards/Approvals AEC-Q100 | ||
Series IAM-20680HP | ||
Length 3mm | ||
Automotive Standard No | ||
Supply Current 3mA | ||
- COO (Country of Origin):
- TW
The InvenSense IAM series is a 6-axis motion tracking device for automotive applications that combines a 3-axis gyroscope and a 3-axis accelerometer. The gyroscope has a programmable full-scale range of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps. The accelerometer has a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g. It also features a 4096-byte FIFO that can lower the traffic on the serial bus interface.
User-programmable digital filters for gyroscope, accelerometer, and temperature sensor
Self-test
Wake-on-motion interrupt for low power operation of applications processor
Reliability testing performed according to AEC–Q100
