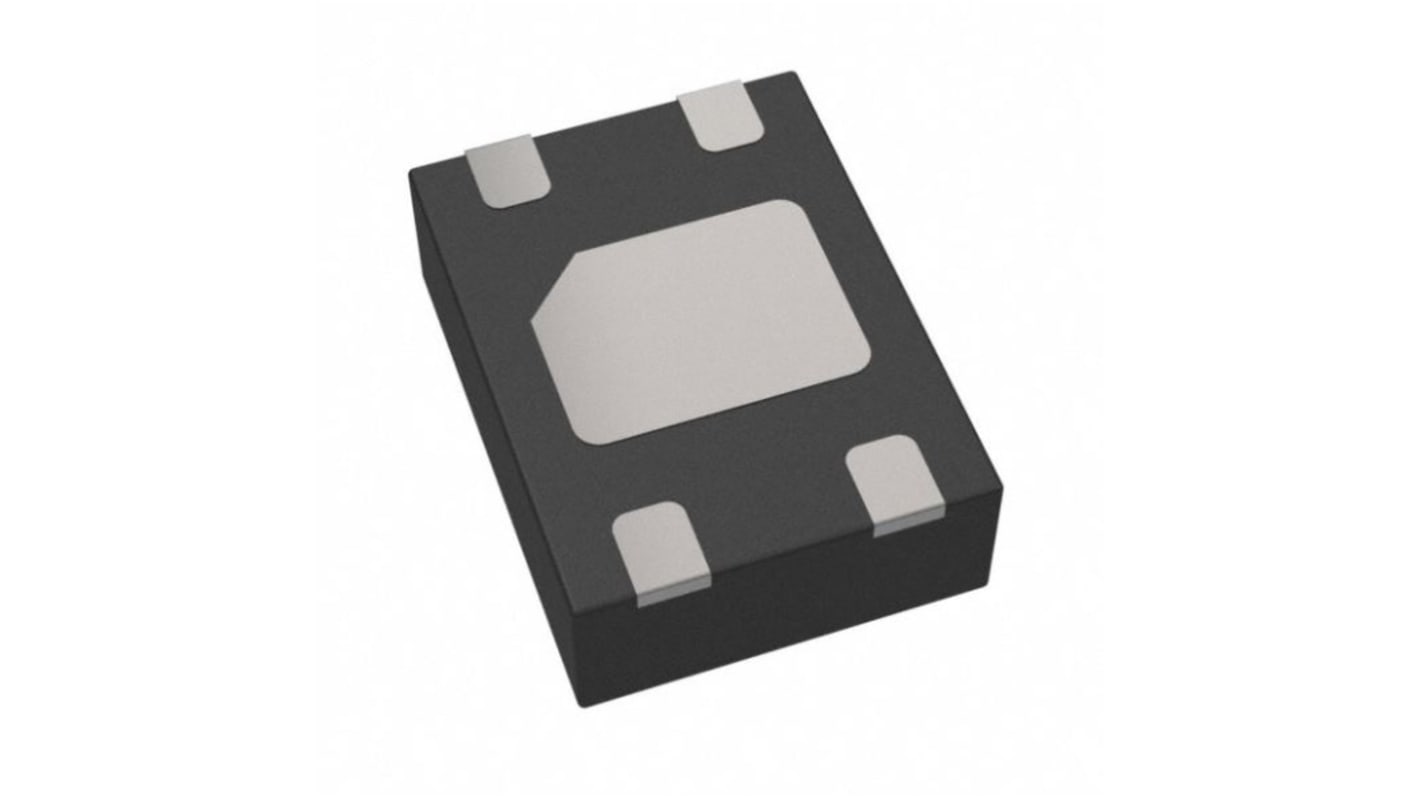

DiodesZetex Surface Hall Effect Sensor 1.6 V 3.6 V, X1-DFN1216-4 (Type B), 4-Pin
- RS Stock No.:
- 213-9016
- Mfr. Part No.:
- AH1897S-FAN-7
- Brand:
- DiodesZetex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 213-9016
- Mfr. Part No.:
- AH1897S-FAN-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Hall Effect Sensor | |
| Sensor Type | Hall Effect | |
| Mount Type | Surface | |
| Magnetic Type | Omnipolar | |
| Minimum Supply Voltage | 1.6V | |
| Package Type | X1-DFN1216-4 (Type B) | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Pin Count | 4 | |
| Standards/Approvals | RoHS | |
| Height | 0.48mm | |
| Series | AH1897S | |
| Width | 1.6 mm | |
| Length | 1.2mm | |
| Supply Current | 2.1mA | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Hall Effect Sensor | ||
Sensor Type Hall Effect | ||
Mount Type Surface | ||
Magnetic Type Omnipolar | ||
Minimum Supply Voltage 1.6V | ||
Package Type X1-DFN1216-4 (Type B) | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Pin Count 4 | ||
Standards/Approvals RoHS | ||
Height 0.48mm | ||
Series AH1897S | ||
Width 1.6 mm | ||
Length 1.2mm | ||
Supply Current 2.1mA | ||
Automotive Standard AEC-Q100 | ||
The DiodesZetex AH1897S series is a high sensitivity micro power Omni polar hall effect switch IC with an internal pull up and pull down capability. It is designed for portable and battery powered equipment such as cellular phones and portable PCs.
Operating temperature : -40°C to +85°C
Good RF noise immunity
