- RS Stock No.:
- 193-9607
- Mfr. Part No.:
- TLI4965-5M
- Brand:
- Infineon
1150 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 25)
£0.361
(exc. VAT)
£0.433
(inc. VAT)
Units | Per unit | Per Pack* |
25 - 25 | £0.361 | £9.025 |
50 - 75 | £0.353 | £8.825 |
100 - 225 | £0.282 | £7.05 |
250 - 975 | £0.276 | £6.90 |
1000 + | £0.268 | £6.70 |
*price indicative |
- RS Stock No.:
- 193-9607
- Mfr. Part No.:
- TLI4965-5M
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
TLI496x-xM is an integrated Hall effect sensor specially designed for highly accurate
applications. The sensor provides an easy-to-use and cost effective solution for position
sensing applications, requiring high temperature stability of the magnetic threshold.
Target applications for the TLI496x-xM Hall switch family are all applications requesting
a precision Hall latch or Hall switch with an operating temperature from -40 °C to 125 °C.
applications. The sensor provides an easy-to-use and cost effective solution for position
sensing applications, requiring high temperature stability of the magnetic threshold.
Target applications for the TLI496x-xM Hall switch family are all applications requesting
a precision Hall latch or Hall switch with an operating temperature from -40 °C to 125 °C.
3.0 V to 5.5 V operating supply voltage
Low current consumption 1.4 mA
ESD protection 4 kV HBM
Active error compensation (chopped)
High stability of magnetic thresholds
Low jitter (typ. 0.35 μs)
Operating temperature range from -40 °C to 125 °C

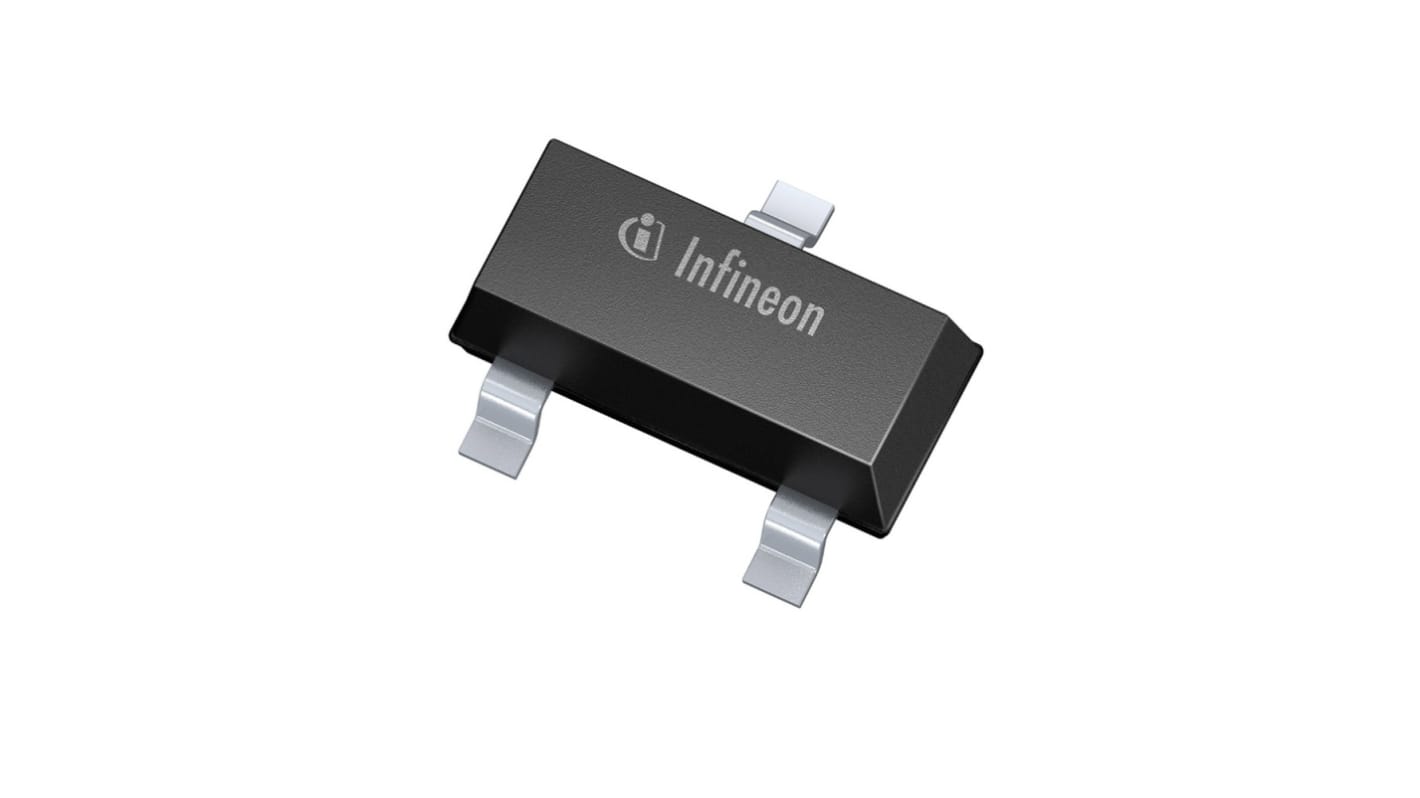

Small SMD package SOT23
Target Applications:
By offering an excellent magnetic behavior Infineons switches are ideally suited for:
Index counting applications with a pole wheel
Rotor position detection (BLDC motors)
Open/close detection
Low current consumption 1.4 mA
ESD protection 4 kV HBM
Active error compensation (chopped)
High stability of magnetic thresholds
Low jitter (typ. 0.35 μs)
Operating temperature range from -40 °C to 125 °C
Small SMD package SOT23
Target Applications:
By offering an excellent magnetic behavior Infineons switches are ideally suited for:
Index counting applications with a pole wheel
Rotor position detection (BLDC motors)
Open/close detection
Specifications
Attribute | Value |
---|---|
Sensor Type | Hall Effect Sensors |
Mounting Type | Surface Mount |
Magnetic Type | Unipolar |
Maximum Operating Supply Voltage | 5.5 V |
Minimum Operating Supply Voltage | 3 V |
Package Type | PG-SOT23 |
Pin Count | 3 |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -40 °C |
