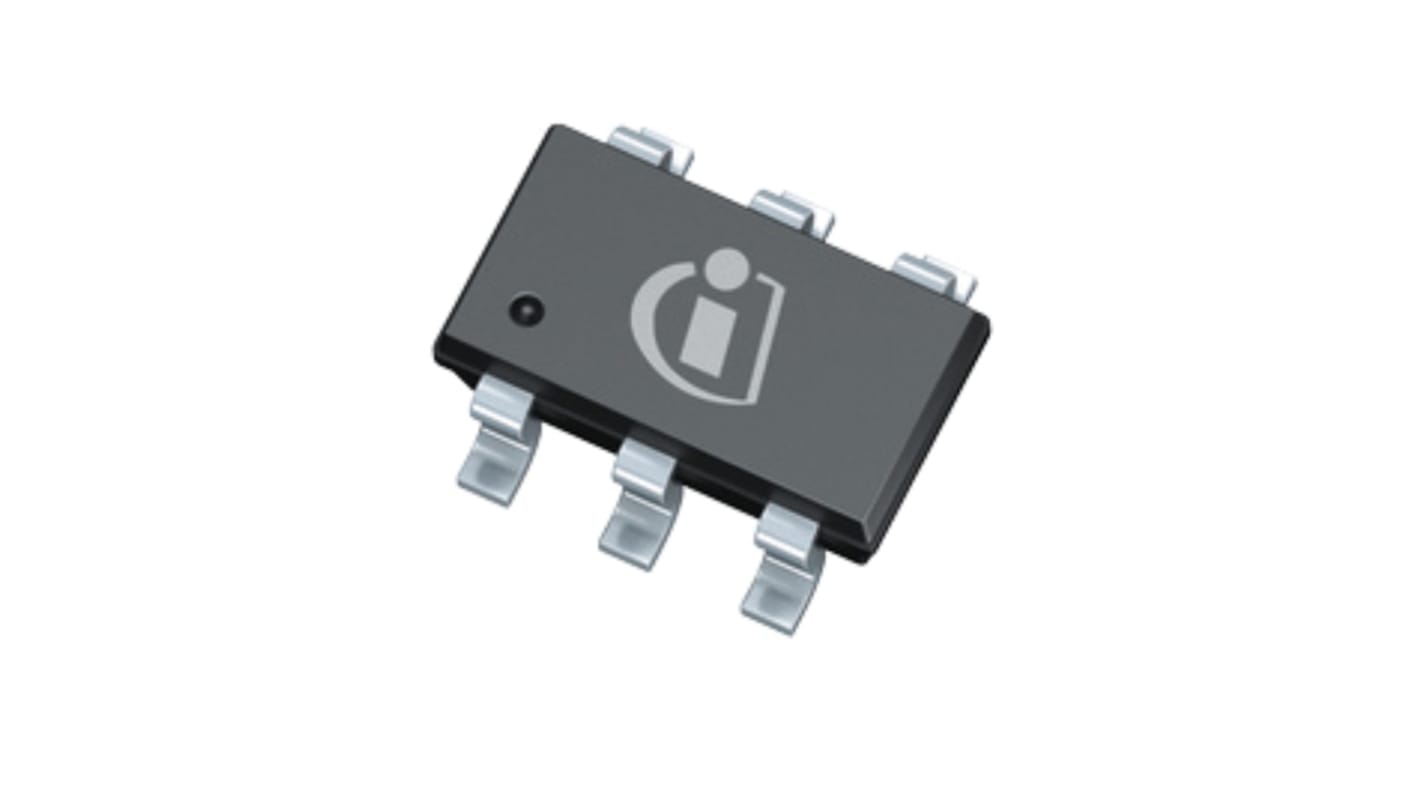

Infineon Surface Mount Hall Effect Sensor, PG-TSOP, 6-Pin
- RS Stock No.:
- 193-9576
- Mfr. Part No.:
- TLE4966V-1K
- Brand:
- Infineon
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 193-9576
- Mfr. Part No.:
- TLE4966V-1K
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Sensor Type | Hall Effect Sensors | |
| Mounting Type | Surface Mount | |
| Maximum Operating Supply Voltage | 32 V | |
| Minimum Operating Supply Voltage | 3.5 V | |
| Package Type | PG-TSOP | |
| Pin Count | 6 | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -40 °C | |
| Automotive Standard | AEC-Q100 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Sensor Type Hall Effect Sensors | ||
Mounting Type Surface Mount | ||
Maximum Operating Supply Voltage 32 V | ||
Minimum Operating Supply Voltage 3.5 V | ||
Package Type PG-TSOP | ||
Pin Count 6 | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -40 °C | ||
Automotive Standard AEC-Q100 | ||
Vertical Hall plates to measure magnetic field parallel to PCB and package surface
3.5V to 32V operating supply voltage
Operation from unregulated power supply
Reverse polarity protection (-18V)
Overvoltage capability up to 42V without external resistor
Low current consumption
Output short-circuit & overtemperature protection
High stability of magnetic thresholds
Small SMD package (TSOP6)
Target Applications:
Window lifter (index counting)
Power closing (index counting)
Driver controls (index counting)
3.5V to 32V operating supply voltage
Operation from unregulated power supply
Reverse polarity protection (-18V)
Overvoltage capability up to 42V without external resistor
Low current consumption
Output short-circuit & overtemperature protection
High stability of magnetic thresholds
Small SMD package (TSOP6)
Target Applications:
Window lifter (index counting)
Power closing (index counting)
Driver controls (index counting)
