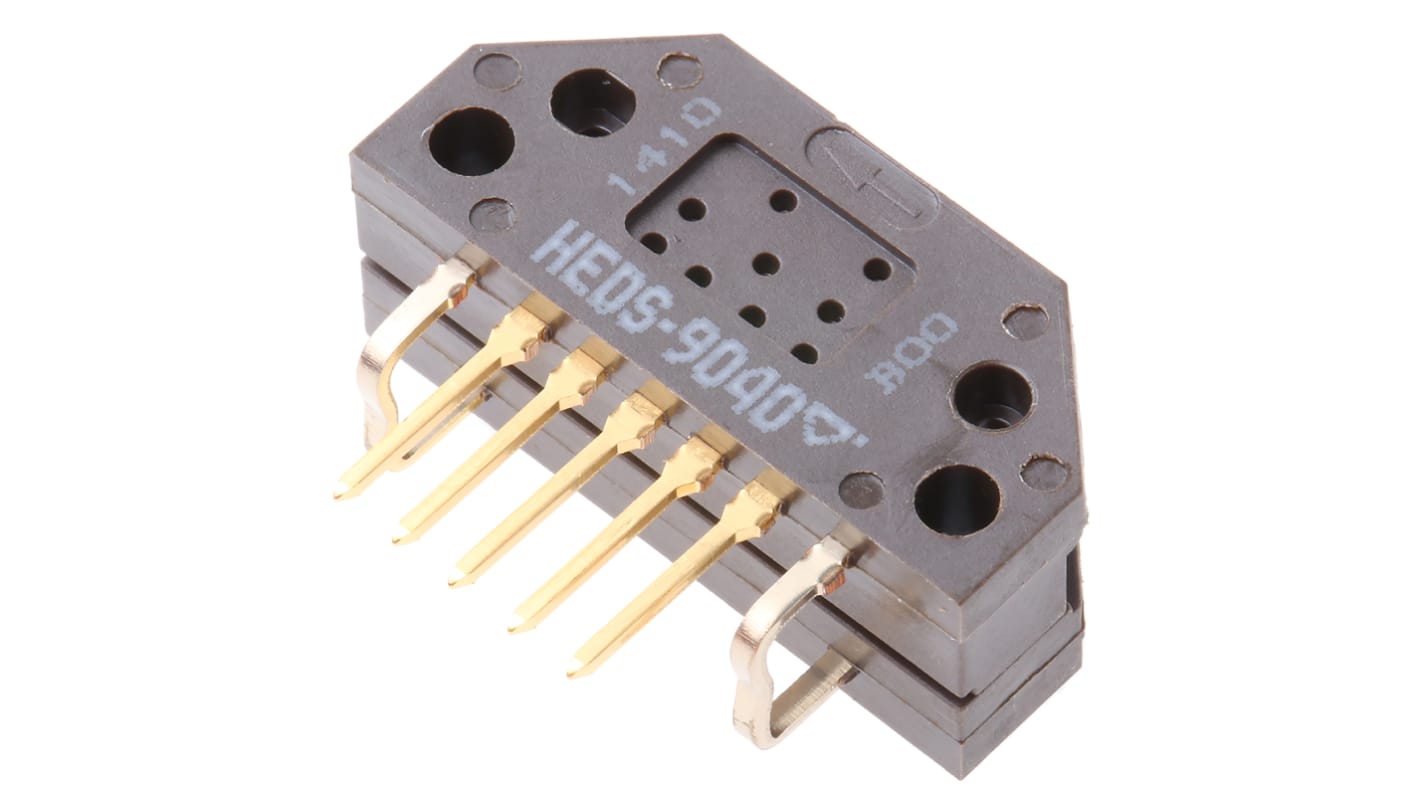

Broadcom Incremental Incremental Encoder, Push Pull Signal

View all Motion Control Sensors
Bulk discount available

Subtotal (1 unit)*

£26.97

(exc. VAT)

£32.36

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 4£26.97
5 - 9£26.01
10 - 49£25.04
50 - 99£20.94
100 +£18.54

*price indicative

Packaging Options:
RS Stock No.:
796-7871
Mfr. Part No.:
HEDS-9040#B00
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Encoder Technology

Incremental

Maximum Revolutions

30000rpm

Output Signal Type

Push Pull

Supply Voltage

4.5 → 5.5 V dc

Resolution

1000 CPR

Overall Height

10.16mm

Overall Width

26.67mm

Overall Depth

11.71mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+100°C

Switching Frequency

100 kHz

The Broadcom HEDS-9040 and HEDS-9140 series are three channel optical incremental encoder modules. When used with a code wheel, these low cost modules detect rotary position. Each module consists of a lensed LED source and a detector IC enclosed in a small plastic package. Due to a highly collimated light source and a unique photodetector array, these modules provide the same high performance found in the HEDS-9000/9100 two channel encoder family.

Two Channel Quadrature Output with Index Pulse
Resolution Up to 2000 CPR Counts Per Revolution
Low Cost
Easy to Mount
No Signal Adjustment Required
Small Size
-40 degrees C to 100 degrees C Operating Temperature
TTL Compatible
Single 5 V Supply
