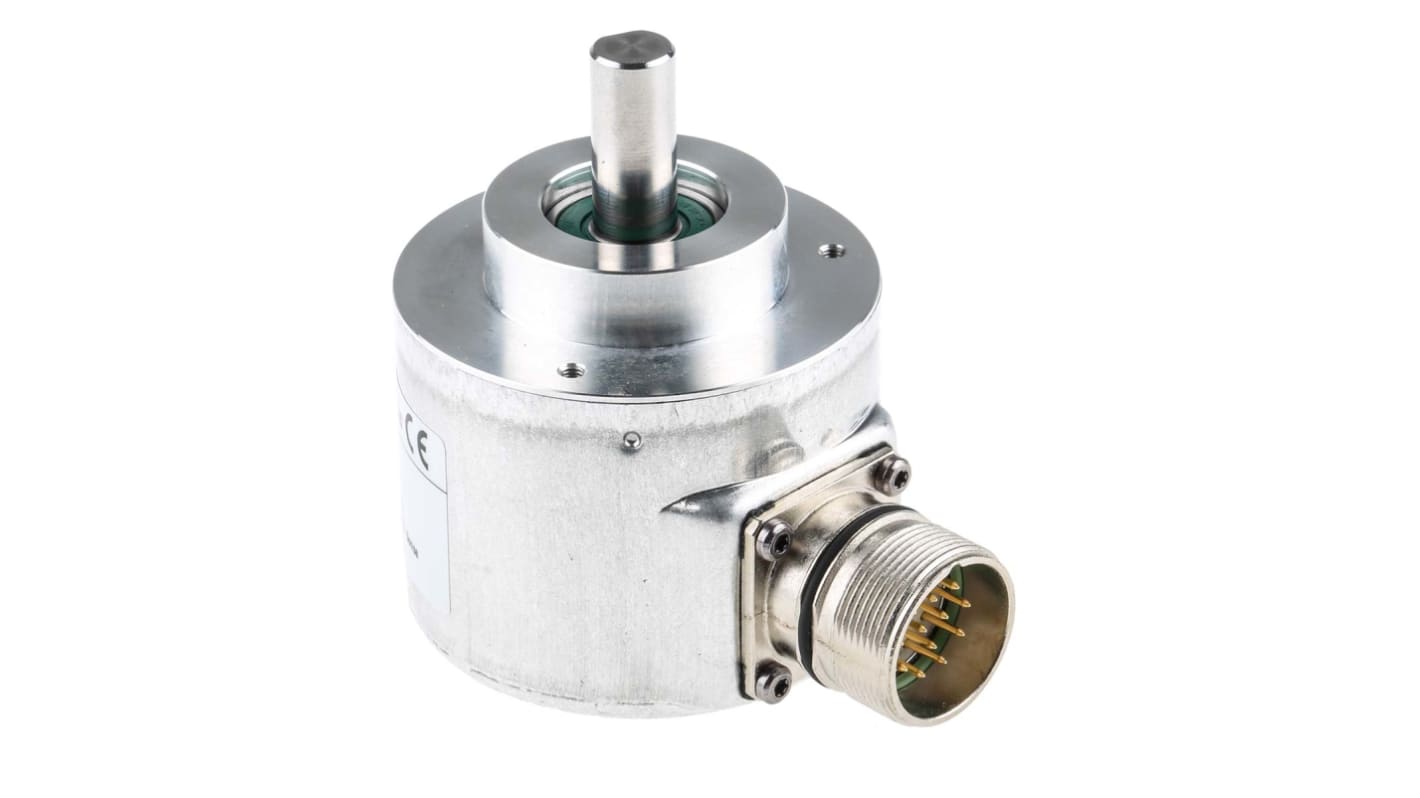

Baumer GI355 Series Optical Incremental Encoder, 5000 ppr, HTL/Push Pull Signal, Solid Type, 10mm Shaft
- RS Stock No.:
- 481-7436
- Mfr. Part No.:
- GI355.070R035 (GI355.070C335)
- Brand:
- Baumer
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£272.79
(exc. VAT)
£327.35
(inc. VAT)
- RS Stock No.:
- 481-7436
- Mfr. Part No.:
- GI355.070R035 (GI355.070C335)
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Encoder Technology | Optical | |
| Series | GI355 | |
| Pulses Per Revolution | 5000 | |
| Maximum Revolutions | 10000rpm | |
| Output Signal Type | HTL/Push Pull | |
| Shaft Type | Solid | |
| Shaft Diameter | 10mm | |
| Supply Voltage | 4.75 → 30 V dc | |
| IP Rating | IP54 | |
| Overall Width | 58mm | |
| Minimum Operating Temperature | -25°C | |
| Mounting Type | Clamping Flange | |
| Maximum Operating Temperature | +85°C | |
| Connection Type | Flange connector M23 | |
| Switching Frequency | ≤150 kHz | |
| Select all | ||
|---|---|---|
Brand Baumer | ||
Encoder Technology Optical | ||
Series GI355 | ||
Pulses Per Revolution 5000 | ||
Maximum Revolutions 10000rpm | ||
Output Signal Type HTL/Push Pull | ||
Shaft Type Solid | ||
Shaft Diameter 10mm | ||
Supply Voltage 4.75 → 30 V dc | ||
IP Rating IP54 | ||
Overall Width 58mm | ||
Minimum Operating Temperature -25°C | ||
Mounting Type Clamping Flange | ||
Maximum Operating Temperature +85°C | ||
Connection Type Flange connector M23 | ||
Switching Frequency ≤150 kHz | ||
