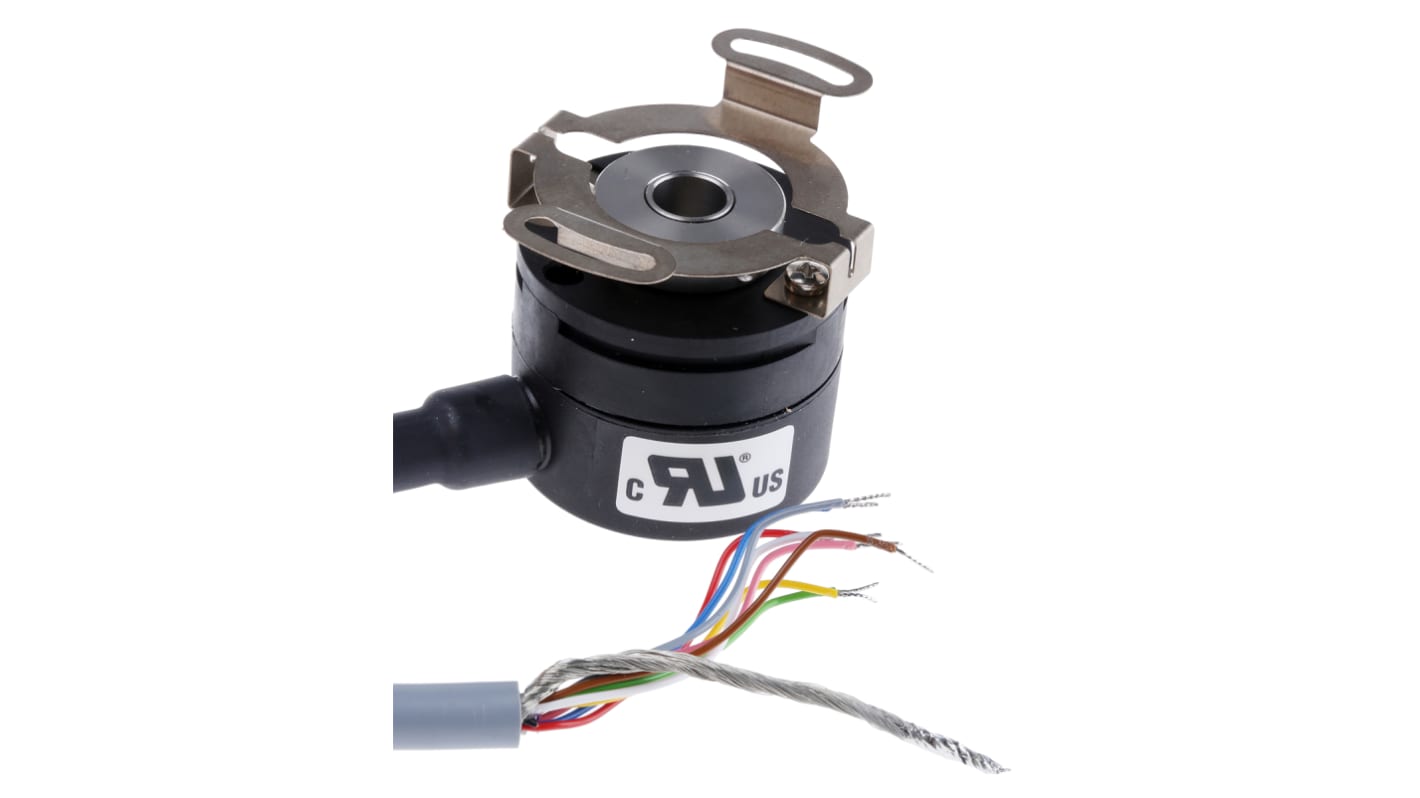

Kubler Incremental Encoder, 1000 ppr, Push Pull Signal, Hollow Type, 8mm Shaft
- RS Stock No.:
- 441-6128
- Mfr. Part No.:
- 8.3720.5621.1000
- Brand:
- Kubler
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£267.52
(exc. VAT)
£321.02
(inc. VAT)
- RS Stock No.:
- 441-6128
- Mfr. Part No.:
- 8.3720.5621.1000
- Brand:
- Kubler
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kubler | |
| Encoder Technology | Incremental | |
| Pulses Per Revolution | 1000 | |
| Maximum Revolutions | 6000rpm | |
| Output Signal Type | Push Pull | |
| Shaft Type | Hollow | |
| Supply Voltage | 5 → 30 V dc | |
| Shaft Diameter | 8mm | |
| IP Rating | IP65 | |
| Overall Height | 44.5mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +85°C | |
| Switching Frequency | 250 kHz | |
| Select all | ||
|---|---|---|
Brand Kubler | ||
Encoder Technology Incremental | ||
Pulses Per Revolution 1000 | ||
Maximum Revolutions 6000rpm | ||
Output Signal Type Push Pull | ||
Shaft Type Hollow | ||
Supply Voltage 5 → 30 V dc | ||
Shaft Diameter 8mm | ||
IP Rating IP65 | ||
Overall Height 44.5mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +85°C | ||
Switching Frequency 250 kHz | ||
- COO (Country of Origin):
- DE
Solid/Hollow Shaft
Supply voltage 5-30Vdc
Kubler
Push pull interface with inverted signals
Short circuit protection
Age and temperature compensation
Short circuit protection
Age and temperature compensation
