SICK TTK70S Series Magnetic Linear Measuring Encoder

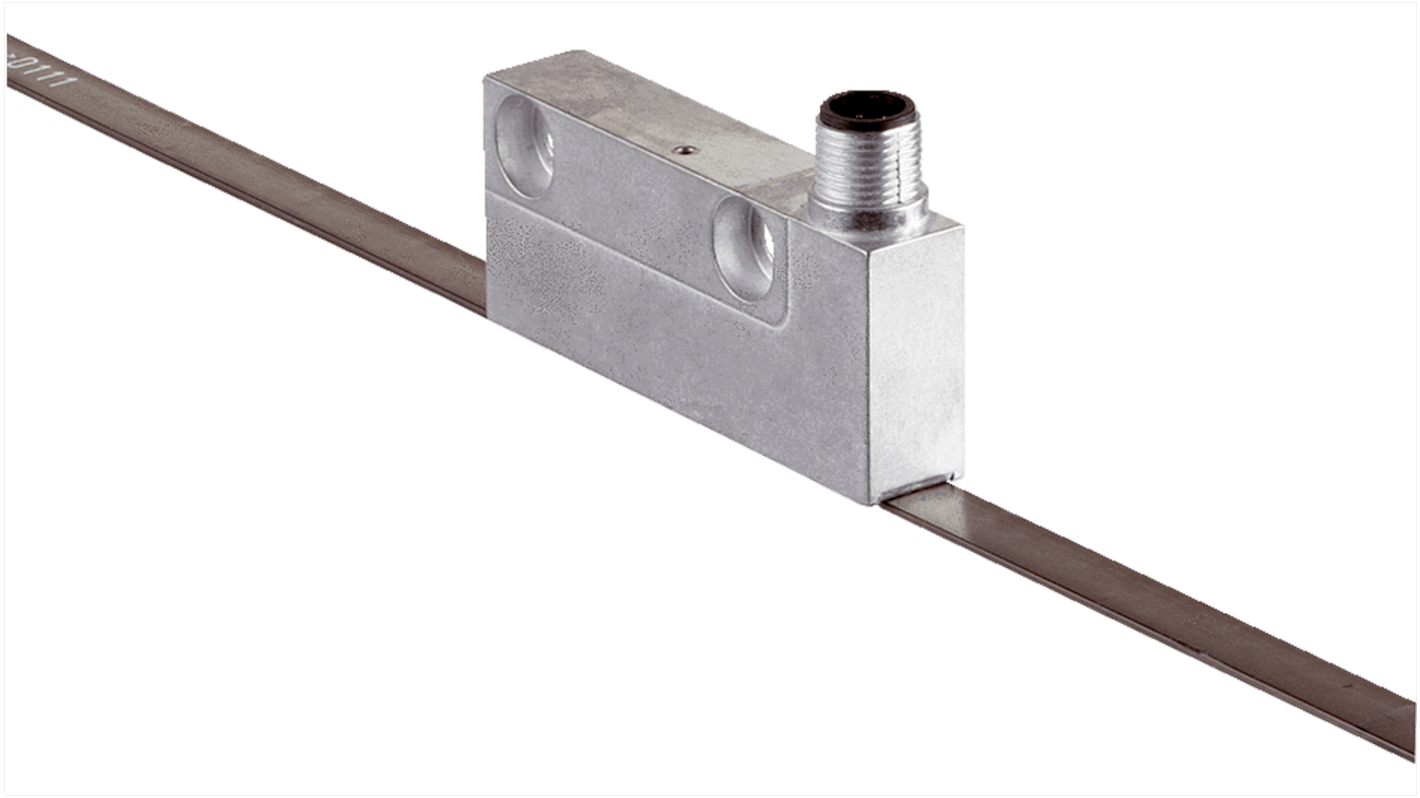

Linear encoder offers precision, speed and dynamics which play a particularly important role in the measurement of linear movements. The compact linear measurement system TTK70 with HIPERFACE® or SSI interface fulfils all these properties. The magnetic principle of operation, the long measuring lengths, and the extremely high resolution open up all kinds of application possibilities for absolute position and speed recording. The non-contact measuring system consists of a compact read head and magnetic tape.

The read head is responsible for recording position values. The magnetic tape is the measuring element and features a magnetic division into an incremental and an absolute track.

Non-contact absolute position and speed recording
With HIPERFACE® or SSI interface
Measurement lengths of up to 4 m
For high traversing speeds of up to 10 m/s
Reliable measurements, even in the event of contamination and condensation on the magnetic tape
Small, compact read head
Certified according to SIL2 and PL d (HIPERFACE® interface)

Available with the HIPERFACE® and SSI interfaces
Measurement lengths of up to 4 m
Maintenance and wear-free thanks to non-contact measurement principle
Compact design, low weight, and high traversing speed
Immune to ambient conditions such as contamination and condensation
No need for a reference run due to the absolute position recording
Certification allows for easy integration into a safe drive system

Fields of applications
Linear motors
Pick and Place applications
