SICK DBV50E Series Incremental Incremental Encoder 30V, 1000 ppr ppr, HTL, Push Pull Signal, Solid Shaft Type, 8 mm

View all Motion Control Sensors

Subtotal (1 unit)*

£189.18

(exc. VAT)

£227.02

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 14 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£189.18

*price indicative

RS Stock No.:
285-1089
Mfr. Part No.:
DBV50E-22EMA1000 / 1081894
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Product Type

Incremental Encoder

Encoder Technology

Incremental

Series

DBV50E

Pulses Per Revolution

1000ppr

Output Signal Type

HTL, Push Pull

Shaft Type

Solid Shaft

Shaft Diameter

8mm

Interface Type

Incremental

Terminal Type

Cable

IP Rating

IP65

Maximum Supply Voltage

30V

Minimum Operating Temperature

-20°C

Overall Width

50mm

Overall Height

50mm

Standards/Approvals

CE, cULus, EU declaration of conformity, UK declaration of conformity, ACMA declaration of conformity, CHINA-RoHS

Maximum Operating Temperature

85°C

Mount Type

Flange

Switching Frequency

300kHz

Overview

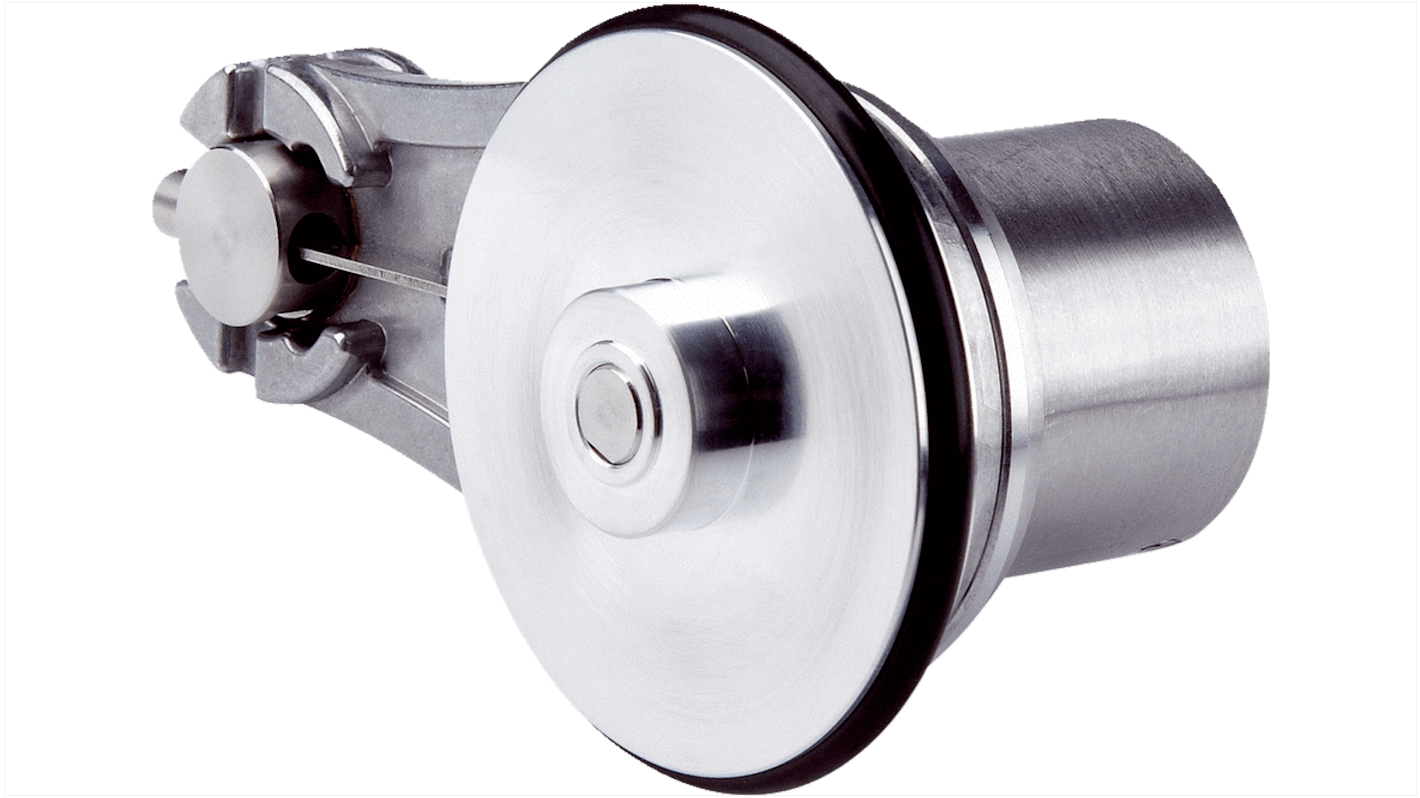

The DBV50 measuring wheel encoder is a measuring wheel system for measuring linear movements. It consists of the DBS50 incremental encoder, an aluminium measuring wheel with a 200 mm diameter and a spring-loaded arm. The maximum resolution is 0.08 mm per pulse. The spring arm has a maximum spring travel of 14 mm, a maximum spring force of 20 N and features a convenient pretension setting for repeatable setting the spring pretension.

A spring travel limiter protects the spring from being overloaded. The encoder can be rotated and mounted on both sides of the spring arm; routing of the cable can be adapted to the application. The measuring wheel system can be delivered with numerous electrical interfaces, facilities for connecting and resolutions.

At a glance


Axis distance: 63.5 mm

Measuring wheel circumference: 200 mm

Resolution: 0.08 mm per pulse, 12.5 pulses per mm

Max. spring travel: 14 mm, mechanically limited, max. spring force: 21 N

Encoder rotation in 30° increments

The encoder can be mounted on both spring arm sides, wheel support from top and bottom

Adjustable spring pretension

Your Benefit


Compact, space-saving measuring wheel system with low installation depth

Large spring travel and high press-on force to compensate for unevenness in the surface being measured

Easy and repeatable setting of the spring pretension

Prevents system failures by limiting the spring travel to protect the spring from being overloaded

Highly adaptable to various applications thanks to a variety of options for mounting the encoder on the spring arm

Reliable operation thanks to the reliable encoder with a high radial load

Numerous electrical interfaces, facilities for connecting and resolutions

Applications


Fields of applications

Measuring of position, speed and distance in applications with linear movements in storage logistics and mechanical engineering.

Conveyor belts

Wood industry

Laser and inkjet printers for labels, packaging and bottles

Shuttle system
