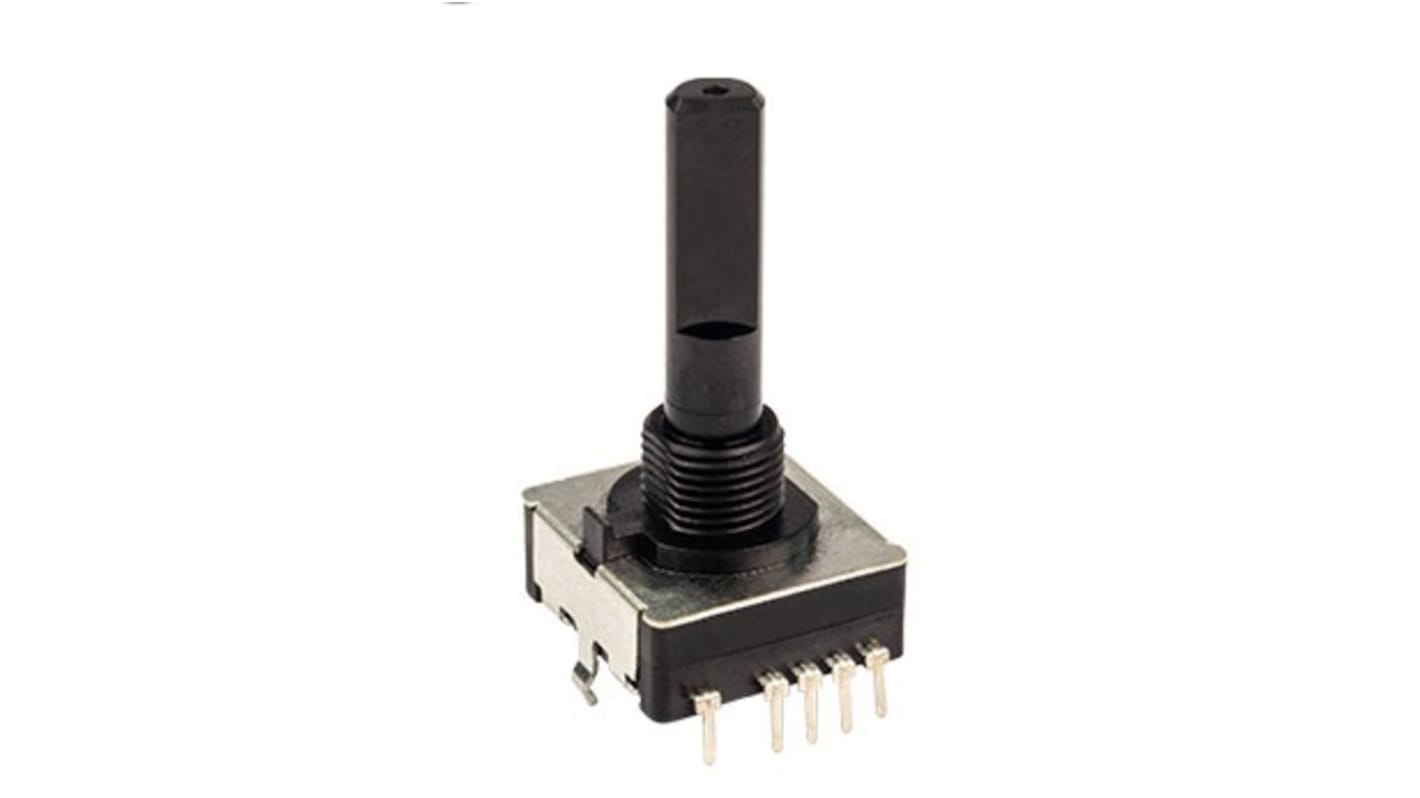

Bourns PAC18R1 Series Absolute Absolute Encoder 10V, Gray Signal, Flatted Type, 5 mm Shaft
- RS Stock No.:
- 269-2383
- Mfr. Part No.:
- PAC18R1-33D28F
- Brand:
- Bourns
Subtotal (1 tray of 1000 units)*
£1,569.00
(exc. VAT)
£1,883.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 19 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 1000 + | £1.569 | £1,569.00 |
*price indicative
- RS Stock No.:
- 269-2383
- Mfr. Part No.:
- PAC18R1-33D28F
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Absolute Encoder | |
| Encoder Technology | Absolute | |
| Series | PAC18R1 | |
| Maximum Revolutions | 60rpm | |
| Output Signal Type | Gray | |
| Shaft Type | Flatted | |
| Shaft Diameter | 5mm | |
| IP Rating | IP64 | |
| Terminal Type | PC Terminal | |
| Maximum Supply Voltage | 10V | |
| Minimum Operating Temperature | -35°C | |
| Overall Depth | 18.8mm | |
| Standards/Approvals | RoHS | |
| Overall Height | 20.2mm | |
| Overall Width | 11.1mm | |
| Maximum Operating Temperature | 70°C | |
| Mount Type | PCB | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Absolute Encoder | ||
Encoder Technology Absolute | ||
Series PAC18R1 | ||
Maximum Revolutions 60rpm | ||
Output Signal Type Gray | ||
Shaft Type Flatted | ||
Shaft Diameter 5mm | ||
IP Rating IP64 | ||
Terminal Type PC Terminal | ||
Maximum Supply Voltage 10V | ||
Minimum Operating Temperature -35°C | ||
Overall Depth 18.8mm | ||
Standards/Approvals RoHS | ||
Overall Height 20.2mm | ||
Overall Width 11.1mm | ||
Maximum Operating Temperature 70°C | ||
Mount Type PCB | ||
The Bourns Rotary encoders are ideal for use as digital panel controls or position sensing devices in a wide range of applications where digital circuitry is used. These devices are available in contacting and optical types and in various resolutions. This encoder has insulated plastic shaft and bushing and 30000 cycles minimum rotational life.
Sealed shaft
RoHS compliant
Haptic detent feedback
High class rotational feel
Low profile absolute encoder
