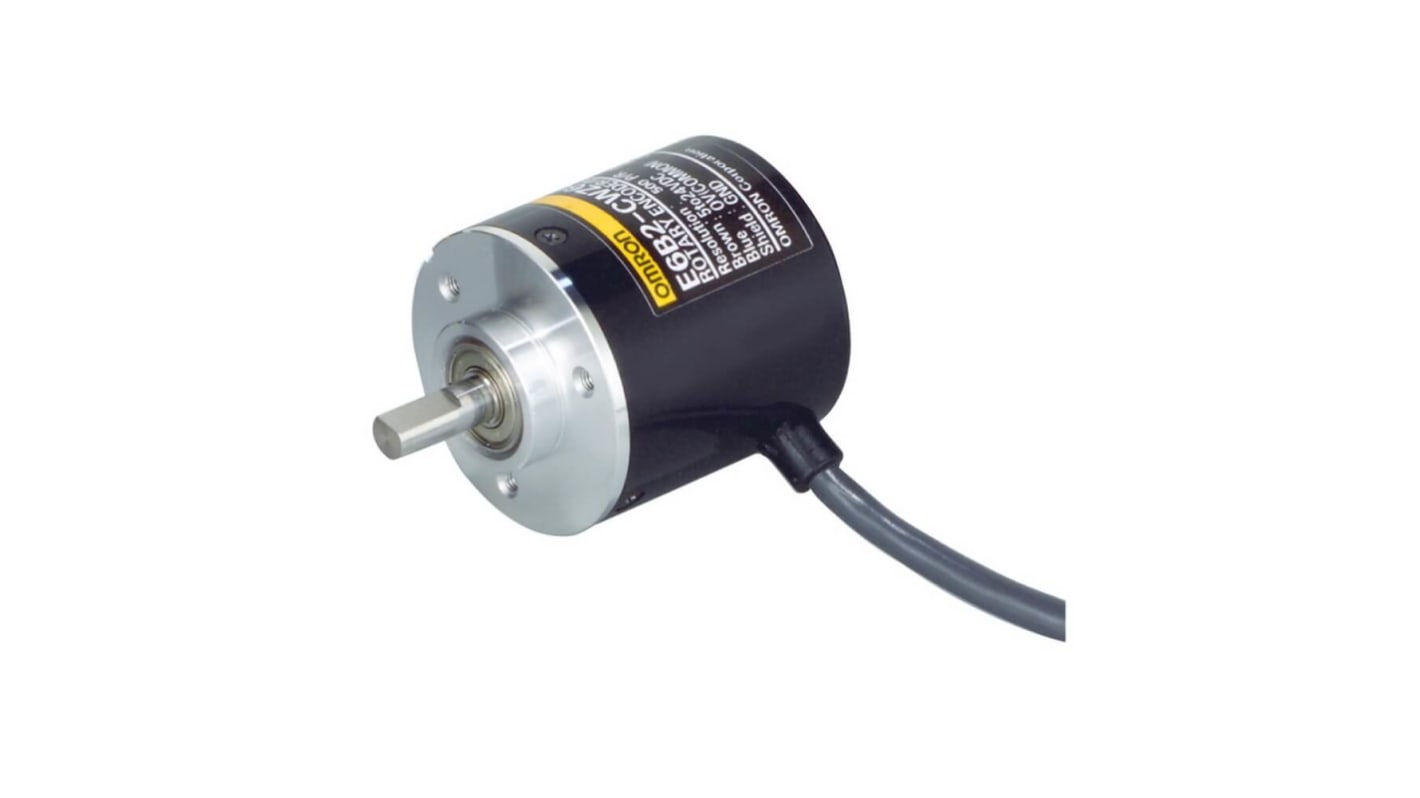

Omron E6B2-C Series Incremental Incremental Encoder 24V, 600 ppr ppr, NPN Open Collector Signal, 6 mm Shaft
- RS Stock No.:
- 268-8412
- Mfr. Part No.:
- E6B2-CWZ6C 600P/R 2M
- Brand:
- Omron
Subtotal (1 unit)*
£231.80
(exc. VAT)
£278.16
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £231.80 |
*price indicative
- RS Stock No.:
- 268-8412
- Mfr. Part No.:
- E6B2-CWZ6C 600P/R 2M
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Encoder Technology | Incremental | |
| Product Type | Incremental Encoder | |
| Pulses Per Revolution | 600ppr | |
| Series | E6B2-C | |
| Maximum Revolutions | 6000rpm | |
| Output Signal Type | NPN Open Collector | |
| Shaft Diameter | 6mm | |
| Interface Type | PNP, Open Collector, NPN | |
| Maximum Supply Voltage | 24V | |
| Overall Depth | 39mm | |
| Standards/Approvals | RoHS | |
| Overall Width | 40mm | |
| Mount Type | Threaded, Bracket | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Encoder Technology Incremental | ||
Product Type Incremental Encoder | ||
Pulses Per Revolution 600ppr | ||
Series E6B2-C | ||
Maximum Revolutions 6000rpm | ||
Output Signal Type NPN Open Collector | ||
Shaft Diameter 6mm | ||
Interface Type PNP, Open Collector, NPN | ||
Maximum Supply Voltage 24V | ||
Overall Depth 39mm | ||
Standards/Approvals RoHS | ||
Overall Width 40mm | ||
Mount Type Threaded, Bracket | ||
- COO (Country of Origin):
- CN
The Omron general purpose incremental rotary encoder with large shaft of 40 diameter has a wide operating voltage range from 5 to 24 VDC. A large load of 30 N in the radial direction and 20 N in the thrust direction are permitted. The load short-circuit and reversed connection protecting circuit assure high operation reliability.
Shock resistance strengthened by metal disk
Available with line driver output
