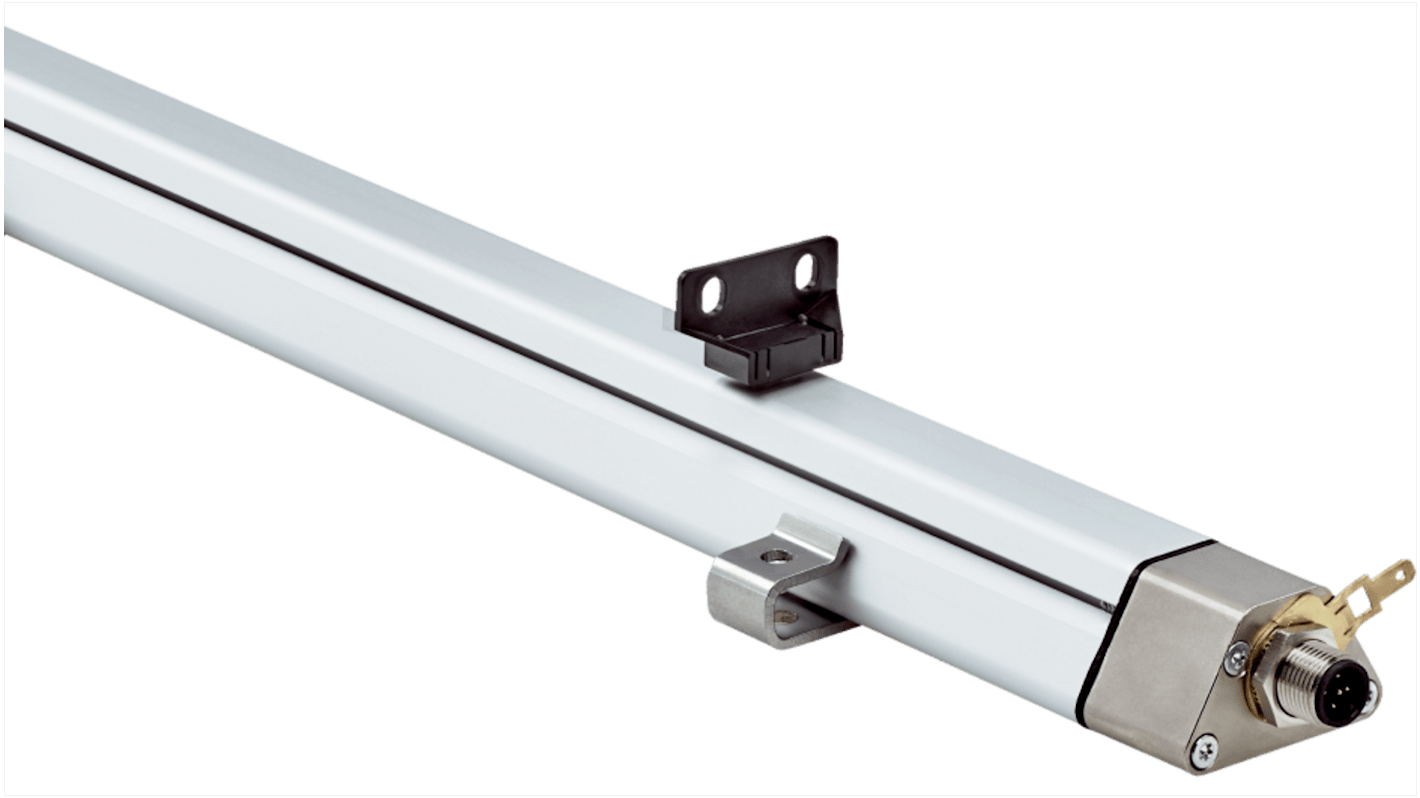

SICK DAX Series Linear Measuring Linear Measuring Encoder, Analogue Signal

RS Stock No.:: 267-1262
Mfr. Part No.:: DAXLVN-0300BA080000M01 / 1133523
Brand:: SICK

SICK DAX Series Linear Measuring Linear Measuring Encoder, Analogue Signal

Subtotal (1 unit)*

£382.18

(exc. VAT)

£458.62

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2 unit(s) ready to ship
Plus 2 unit(s) shipping from 26 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£382.18

*price indicative

RS Stock No.:: 267-1262
Mfr. Part No.:: DAXLVN-0300BA080000M01 / 1133523
Brand:: SICK

Overview

Linear encoders from the DAX product family are well-suited for determining the absolute position of piston rods in hydraulic cylinders as well as linear movements in industrial plants. Thanks to the use of magnetostrictive technology, the encoder is completely wear- and maintenance-free. Individual configuration options ensure customized integration in nearly any application. Thanks to the flexible system architecture, the DAX linear encoder enables properties such as backwards compatibility with manufacturer-specific position magnets.

Other intelligent functions for condition monitoring allow for predictive maintenance, for example, and create transparency about the current machine condition. This minimizes unplanned downtime and increases efficiency.

At a glance

Magnetostrictive principle of operation
Absolute position feedback
Resolution: up to 10 μm
Measuring lengths: 50 mm to 2,500 mm
Available interfaces: Analog and CANopen
Highly-flexible system architecture
Intelligent diagnostic functions and condition monitoring
Profile and hydraulic variants for many installation situations

Your Benefit

Easy integration into new and existing machine designs thanks to high system flexibility, low space requirements and customizable functions, such as backward compatibility with manufacturer-specific position magnets.
Low maintenance costs due to wear- and maintenance-free measurement principle
Absolute measurement without reference run
Intelligent condition monitoring enables predictive maintenance of machines
Fail-safe operation due to under voltage control and integrated overvoltage protection, also making them suitable for areas susceptible to voltage supplies fluctuations.

Applications

Injection moulding machines
Hydraulic presses
Packaging machines
Renewable energies: For example, hydropower, wind power and photovoltaic systems
Metal and steel processing
Wood production and processing
Mechanical engineering
Medical technology

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Encoder Technology	Linear Measuring
	Series	DAX
	Output Signal Type	Analogue
	Stroke	300mm
	Supply Voltage	24 V dc
	IP Rating	IP65, IP67
	Overall Height	68mm
	Interface	Analog 0-10V
	Overall Width	50mm
	Minimum Operating Temperature	-40°C
	Mounting Type	Flange Mount
	Maximum Operating Temperature	+85°C
	Current Rating	50 → 100 mA
	Connection Type	8-pin, M12, Male

	Select all
	Brand SICK
	Encoder Technology Linear Measuring
	Series DAX
	Output Signal Type Analogue
	Stroke 300mm
	Supply Voltage 24 V dc
	IP Rating IP65, IP67
	Overall Height 68mm
	Interface Analog 0-10V
	Overall Width 50mm
	Minimum Operating Temperature -40°C
	Mounting Type Flange Mount
	Maximum Operating Temperature +85°C
	Current Rating 50 → 100 mA
	Connection Type 8-pin, M12, Male
