SICK DGS80 Series Incremental Incremental Encoder 30V dc, 2400 ppr ppr, TTL/HTL Signal

View all Motion Control Sensors

Subtotal (1 unit)*

£339.19

(exc. VAT)

£407.03

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£339.19

*price indicative

Sponsored
Sick encoder
SICK LOGO IMAGE
Complete your solution with SICK products associated with Encoders
View a selection of SICK products designed for compatibility with encoders. Enhance your operational efficiency with our innovative automation solutions.
Shop Now
RS Stock No.:
266-7796
Mfr. Part No.:
DUV60E-D4KFWAAA / 1084635
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Product Type

Incremental Encoder

Encoder Technology

Incremental

Pulses Per Revolution

2400ppr

Series

DGS80

Maximum Revolutions

1500rpm

Output Signal Type

TTL/HTL

Terminal Type

12-Pin M23

IP Rating

IP65

Maximum Supply Voltage

30V dc

Minimum Operating Temperature

85°C

Overall Depth

35mm

Standards/Approvals

CE

Overall Height

35mm

Overall Width

115.5mm

Mount Type

Flange

Maximum Operating Temperature

-25°C

Overview

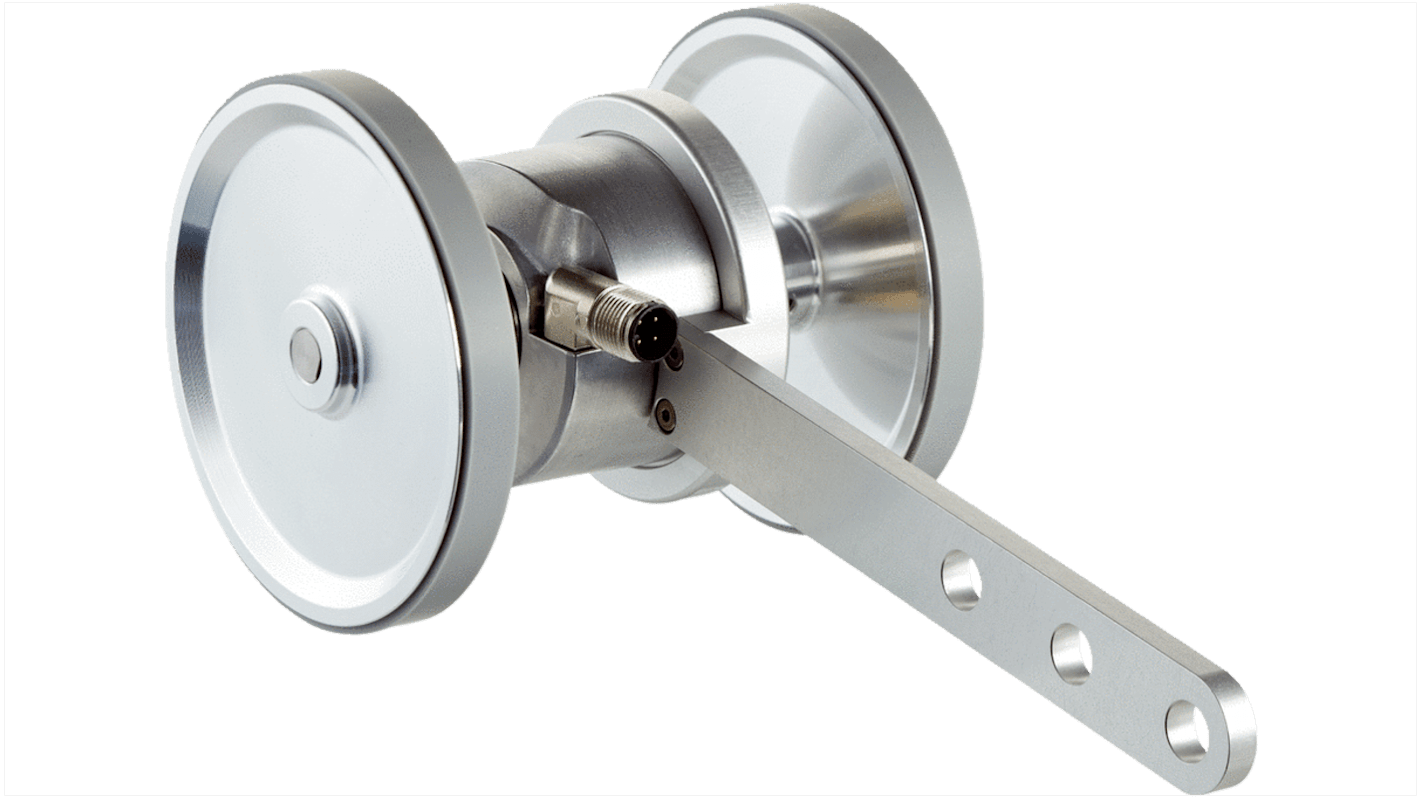

The DUV60 is a measuring wheel encoder with DIP switch configuration, designed to be optimized for conveyor and web feedback. The ability to configure the output voltage, resolution, and counting direction reduces the number of variants, enables easy replacement and quick commissioning, and increases the likelihood that spare parts will be in stock – all without any additional programming tools. The on-board status and signal LEDs and optional fault output quickly indicate the functionality of the encoder, minimizing time required for both installation and troubleshooting.

The DUV60 offers a range of mounting configurations for dual or single wheel applications, making the DUV60 the ideal solution for conveyor, web, and logistics applications.

At a glance


Single or dual wheel measuring wheel encoder

DIP switches for programming resolution, signal output,

And counting direction

Universal 4.5 V ... 30 V supply

LEDs that indicate encoder status and output signal.

M12 male connector, 4- or 8-pin, or universal cable outlet

Optional fault output directly from encoder

Your Benefit


Quickly commission the encoder using the built-in DIP switches. No additional programming tool or laptop required

Status and signal LEDs quickly indicate whether the encoder is properly connected, functional, or needs to be replaced

Universal voltage supply and multiple bracket options for the measuring wheel encoder provide increased installation flexibility

Maintain a high level of productivity using the anti-dither functionality

Compatible with existing and low-cost input cards with output types like Clockwise/Counter clockwise and Signal/Direction

Applications


Measuring the position, speed and distance in applications with low speeds and low resolution in the logistics and factory automation markets.

Conveyor belts

Packaging machines

Printing machines

Storage systems

Web tracking applications
