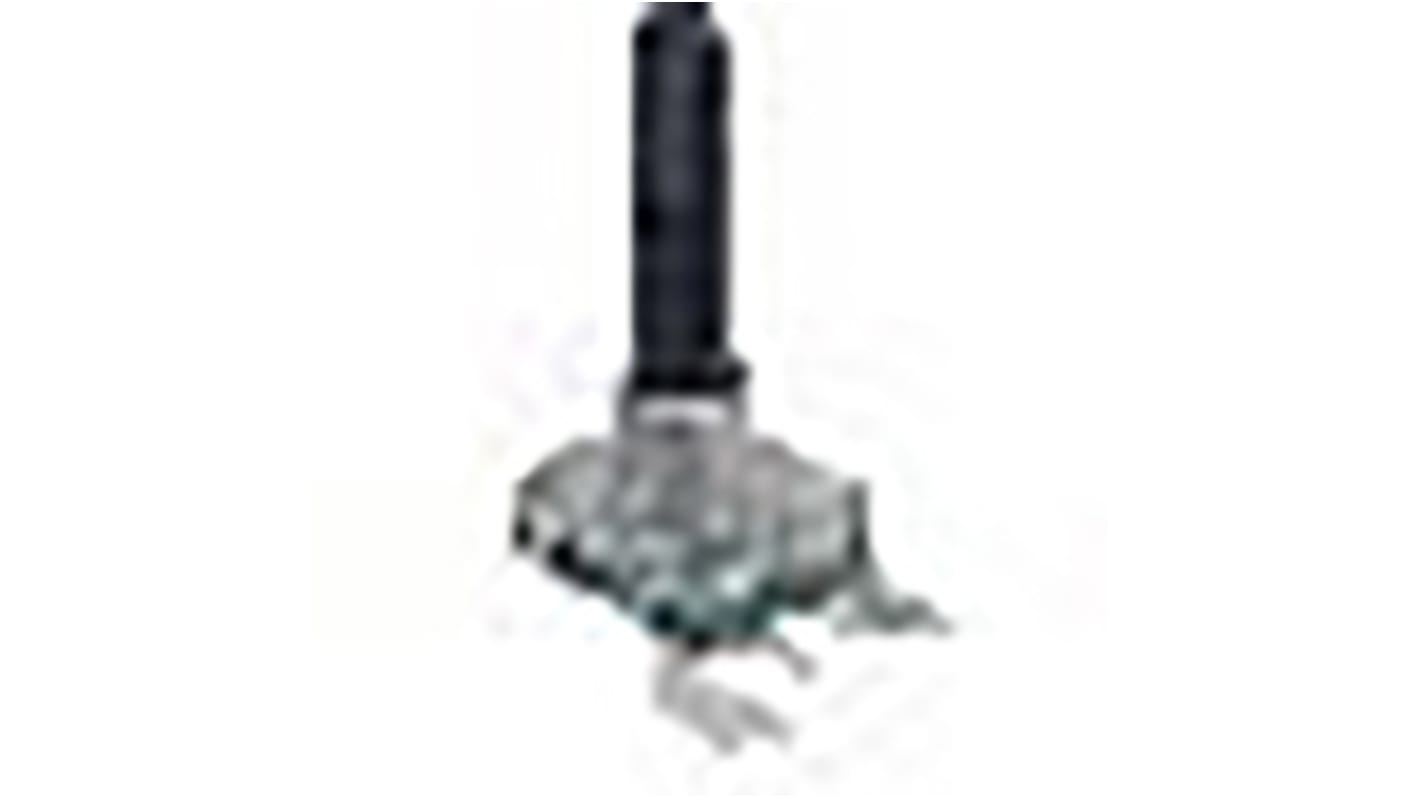

Bourns PEC16 Series Incremental Rotary Encoder 5V dc, 24 ppr ppr, Quadrature Signal, Solid Type, 6 mm Shaft
- RS Stock No.:
- 181-4486
- Distrelec Article No.:
- 304-30-143
- Mfr. Part No.:
- PEC16-4220F-S0024
- Brand:
- Bourns
Bulk discount available
Subtotal (1 pack of 5 units)*
£6.40
(exc. VAT)
£7.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 35 unit(s) shipping from 04 May 2026
- Plus 1,000 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.28 | £6.40 |
| 50 - 95 | £0.802 | £4.01 |
| 100 + | £0.76 | £3.80 |
*price indicative
- RS Stock No.:
- 181-4486
- Distrelec Article No.:
- 304-30-143
- Mfr. Part No.:
- PEC16-4220F-S0024
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Rotary Encoder | |
| Encoder Technology | Incremental | |
| Series | PEC16 | |
| Pulses Per Revolution | 24ppr | |
| Maximum Revolutions | 100rpm | |
| Output Signal Type | Quadrature | |
| Shaft Type | Solid | |
| Shaft Diameter | 6mm | |
| IP Rating | IP40 | |
| Terminal Type | PCB Terminal | |
| Maximum Supply Voltage | 5V dc | |
| Minimum Operating Temperature | -30°C | |
| Overall Depth | 31.5mm | |
| Overall Width | 16mm | |
| Overall Height | 17.7mm | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | 70°C | |
| Mount Type | Panel Mount | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Rotary Encoder | ||
Encoder Technology Incremental | ||
Series PEC16 | ||
Pulses Per Revolution 24ppr | ||
Maximum Revolutions 100rpm | ||
Output Signal Type Quadrature | ||
Shaft Type Solid | ||
Shaft Diameter 6mm | ||
IP Rating IP40 | ||
Terminal Type PCB Terminal | ||
Maximum Supply Voltage 5V dc | ||
Minimum Operating Temperature -30°C | ||
Overall Depth 31.5mm | ||
Overall Width 16mm | ||
Overall Height 17.7mm | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature 70°C | ||
Mount Type Panel Mount | ||
Compact design,long life and high reliability
Low cost compared to optical type encoders
Available in a wide variety of configurations to meet many user requirements
