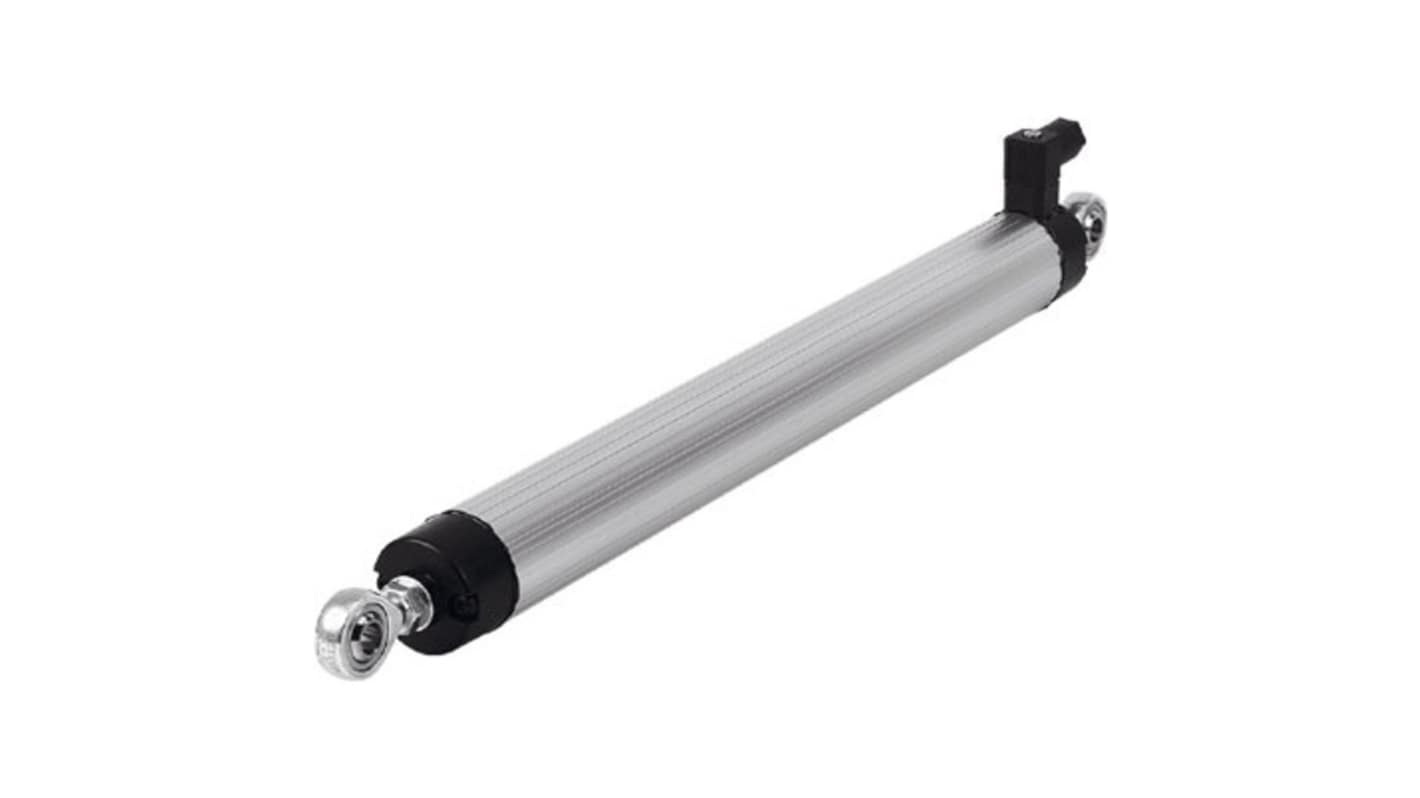

Festo MLO-POT Series Linear Measuring Encoder, Analogue Signal, Round Type
- RS Stock No.:
- 650-432
- Mfr. Part No.:
- MLO-POT-360-LWG
- Brand:
- Festo
Subtotal (1 unit)*
£837.73
(exc. VAT)
£1,005.28
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £837.73 |
*price indicative
- RS Stock No.:
- 650-432
- Mfr. Part No.:
- MLO-POT-360-LWG
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Encoder Technology | Linear Measuring | |
| Product Type | Encoder | |
| Series | MLO-POT | |
| Output Signal Type | Analogue | |
| Shaft Type | Round | |
| Stroke | 360 mm | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -30°C | |
| Standards/Approvals | RoHS, IEC 60529 | |
| Maximum Operating Temperature | 100°C | |
| Mount Type | Optional | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Encoder Technology Linear Measuring | ||
Product Type Encoder | ||
Series MLO-POT | ||
Output Signal Type Analogue | ||
Shaft Type Round | ||
Stroke 360 mm | ||
IP Rating IP65 | ||
Minimum Operating Temperature -30°C | ||
Standards/Approvals RoHS, IEC 60529 | ||
Maximum Operating Temperature 100°C | ||
Mount Type Optional | ||
- COO (Country of Origin):
- DE
The Festo Displacement Encoder is designed for precision measurement in dynamic environments. This robust device operates efficiently within a temperature range of -30 °C to 100 °C, making it suitable for a variety of demanding industrial applications. With a stroke length of 360 mm, it ensures high-resolution displacement measurements up to 0.01 mm. Its analogue output signal enhances compatibility with existing systems, while the IP65 degree of protection guarantees reliability against dust and moisture. Built with high-quality materials, including anodised housing and high-alloy stainless steel connecting rods, this encoder promises durability and long-lasting performance, making it an essential component for ensuring accurate positioning in automation processes.
Achieves a high-resolution displacement measurement of 0.01 mm
Provides an analogue output signal for seamless system integration
Features a stroke length of 360 mm for versatile application
Ensures reliability with an IP65 degree of protection against dust and moisture
Constructed from premium materials for enhanced durability
Capable of withstanding maximum travel speeds of up to 5 m/s
Offers a maximum operating voltage of DC 42 V to accommodate varied applications
Designed with a vibration resistance to severity level 2 which ensuring stability in harsh environments
Supports optional mounting positions for flexible installation
