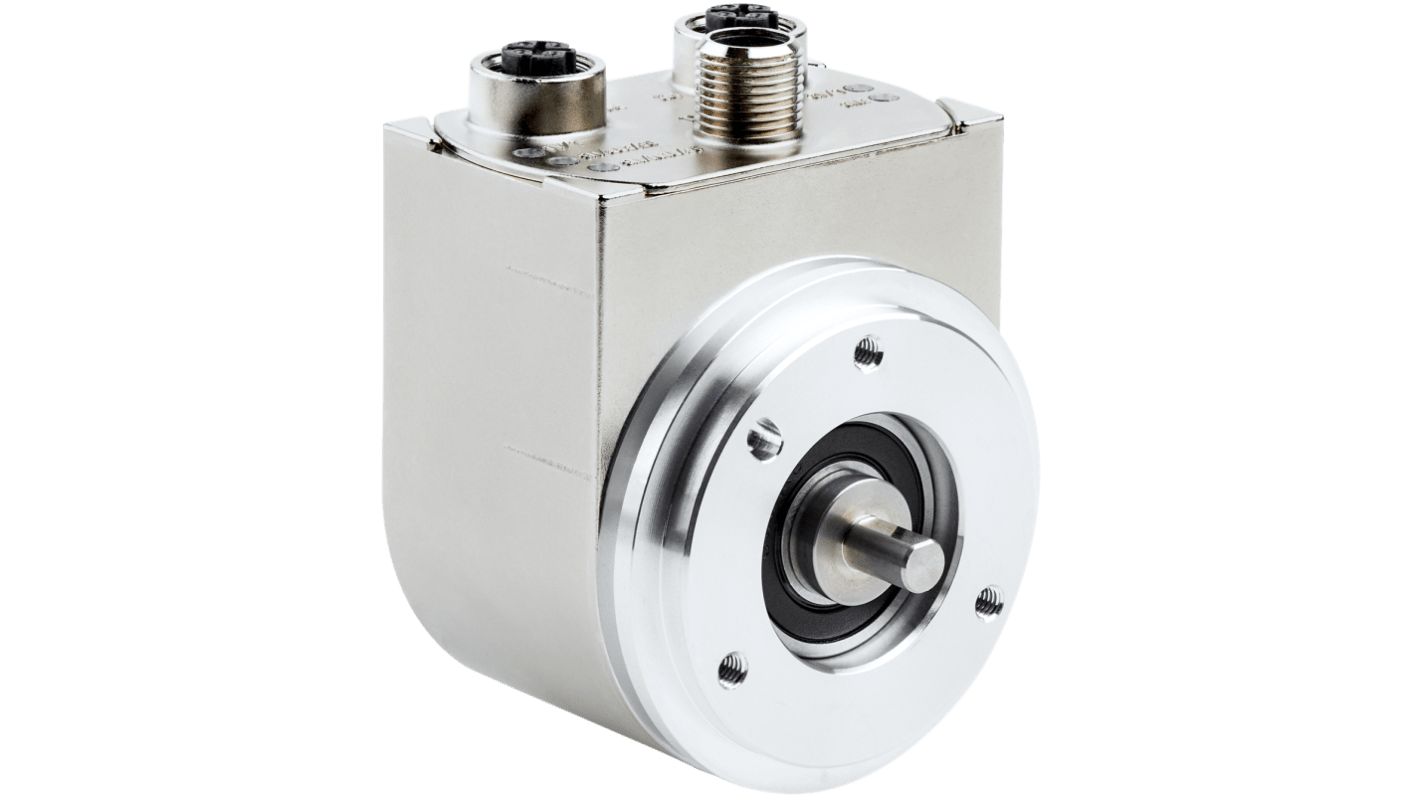

SICK ANM58B Series Absolute Absolute Encoder 32V, 262144 ppr ppr, Solid Shaft Type, 6 mm Shaft

View all Motion Control Sensors

Subtotal (1 unit)*

£767.24

(exc. VAT)

£920.69

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£767.24

*price indicative

RS Stock No.:
647-947
Mfr. Part No.:
ANM58B-SANNA0000101000XX018X16
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Encoder Technology

Absolute

Product Type

Absolute Encoder

Series

ANM58B

Pulses Per Revolution

262144ppr

Maximum Revolutions

65536rpm

Shaft Type

Solid Shaft

Shaft Diameter

6mm

Interface Type

PROFINET

IP Rating

IP65

Terminal Type

4-Pin

Maximum Supply Voltage

32V

Minimum Operating Temperature

-40°C

Overall Depth

54.8mm

Overall Height

85mm

Standards/Approvals

CE, RoHS, UKCA, UL

Overall Width

29mm

Maximum Operating Temperature

85°C

SICK ANM58B Series Absolute Encoder, 262144 Pulses Per Revolution, 6mm Shaft Diameter - ANM58B-SANNA0000101000XX018X16


This absolute encoder is an essential component for precision control in industrial automation applications. Designed with high-resolution capabilities, it features a solid shaft with a diameter of 6mm. Measuring 85mm in height, 29mm in width, and 54.8mm in depth, this device operates effectively within a wide temperature range of -40 °C to +85 °C, making it suitable for various challenging environments.

Features & Benefits


• Utilises absolute encoder technology for accurate position measurement
• Provides up to 262,144 steps per revolution for high-resolution performance
• IP65 rated for excellent protection against dust and water
• Supports PROFINET for seamless integration in industrial settings
• Solid shaft design ensures durability and reliability in operation
• Built-in diagnostics for real-time monitoring of performance and status

Applications


• Used for precise position tracking in manufacturing machinery
• Employed in robotics for accurate movement control
• Integrated into conveyor systems requiring high reliability
• Utilised in automated assembly lines for efficient performance

What voltage range is required for operation?


The encoder requires a supply voltage between 10V and 32V to function effectively across various applications.

How does the standard of repeatability benefit system performance?


With a repeatability standard deviation of just 0.002°, the encoder ensures minimal measurement errors, enhancing overall system reliability.

What type of connectors are compatible with this encoder?


The device features one 4-pin M12 male connector and two 4-pin M12 female connectors for versatile connectivity options in industrial setups.

What is the maximum operating speed this encoder can handle?


This encoder can operate at speeds of up to 9,000 min⁻¹, making it suitable for high-speed applications requiring precision.
