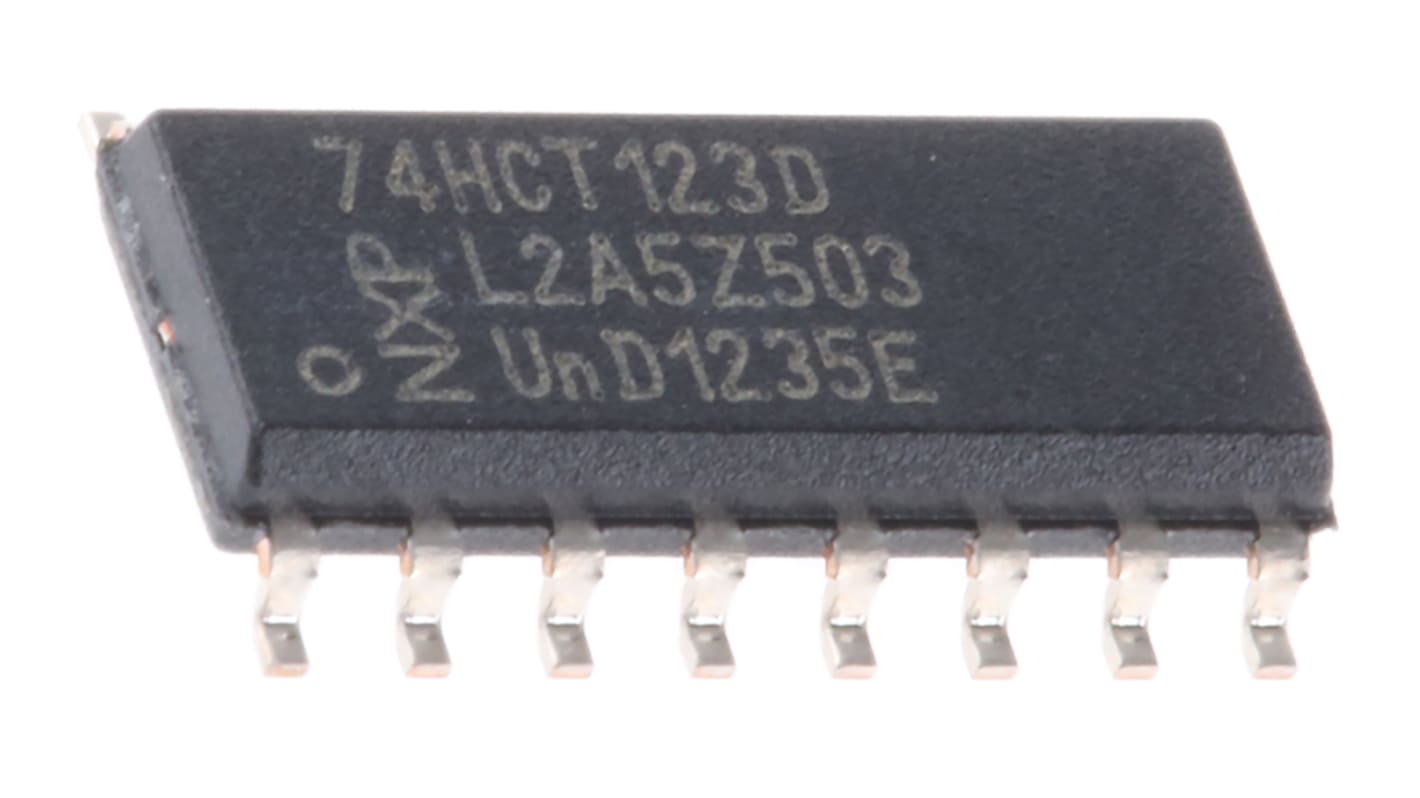

Nexperia 74HCT123D,653, Dual Monostable Multivibrator 4mA, 16-Pin SOIC

View all Monostable Multivibrators
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
742-3974
Mfr. Part No.:
74HCT123D,653
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Logic Family

74HCT

Logic Function

Monostable Multivibrator

Number of Elements per Chip

2

Maximum High Level Output Current

-4mA

Maximum Low Level Output Current

4mA

Minimum Pulse Width

30 ns

Maximum Propagation Delay Time @ Maximum CL

77ns

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

16

Dimensions

10 x 4 x 1.45mm

Height

1.45mm

Length

10mm

Maximum Operating Supply Voltage

5.5 V

Width

4mm

Minimum Operating Supply Voltage

4.5 V

Maximum Operating Temperature

+125 °C

Propagation Delay Test Condition

50pF

Minimum Operating Temperature

-40 °C

COO (Country of Origin):
TH

74HCT Family Monostable Multivibrators, Nexperia


High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS

The 74HC123, 74HCT123 are high-speed Si-gate CMOS devices and are pin compatible with Low-power Schottky TTL (LSTTL). The 74HC123, 74HCT123 are dual retriggerable monostable multivibrators with output pulse width control by three methods: The basic pulse is programmed by selection of an external resistor (REXT) and capacitor (CEXT). Once triggered, the basic output pulse width may be extended by retriggering the gated active LOW-going edge input (nA) or the active HIGH-going edge input (nB). By repeating this process, the output pulse period (nQ = HIGH, nQ = LOW) can be made as long as desired.

Simple control interface
Power on reset
Dual devices with separate reset inputs
Negative or positive edge triggered
CMOS low power
Key applications
Timing delays in control circuits
