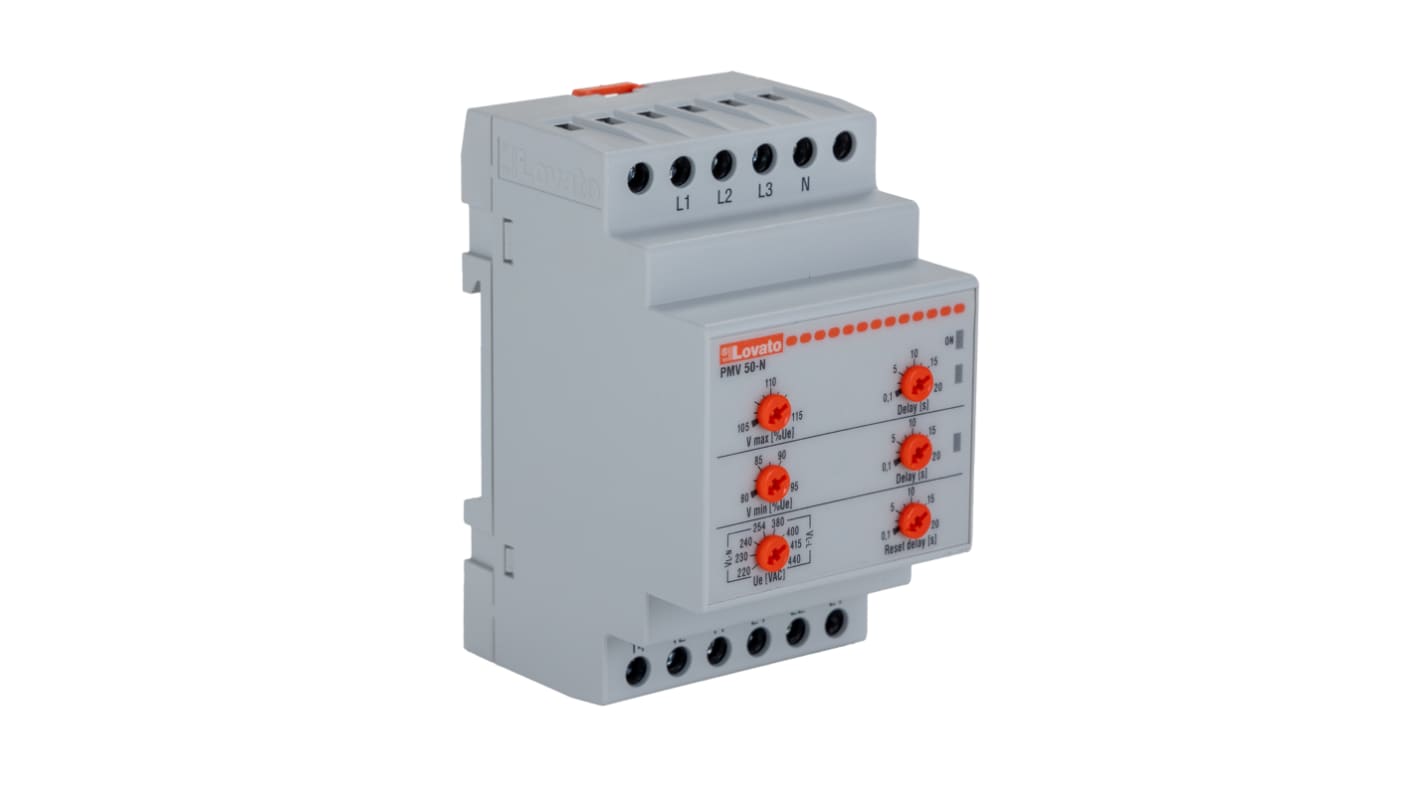

Lovato Monitoring Relay, 3 Phase, SPDT, DIN Rail, 380/440 V ac

RS Stock No.:: 916-0120
Mfr. Part No.:: PMV50NA440
Brand:: Lovato

Lovato Monitoring Relay, 3 Phase, SPDT, DIN Rail, 380/440 V ac

Subtotal (1 unit)*

£327.04

(exc. VAT)

£392.45

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

6 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£327.04

*price indicative

RS Stock No.:: 916-0120
Mfr. Part No.:: PMV50NA440
Brand:: Lovato

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lovato
	Product Type	Monitoring Relay
	Electrical Phase	3
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Power Consumption	27VA
	Switching Voltage	400 V ac
	Terminal Type	Screw
	IP Rating	IP40, IP20
	Supply AC Voltage	380/440 V ac
	Minimum Operating Temperature	-20°C
	Contact Current	8A
	Maximum Operating Temperature	60°C
	Length	35.8mm
	Standards/Approvals	UL 508, IEC/EN 61000-6-3, IES/EN 60255-5, CSA C22, RoHS, IEC/EN 61000-6-2
	Series	PMV50
	Height	104.7mm
	Width	64.9 mm

	Select all
	Brand Lovato
	Product Type Monitoring Relay
	Electrical Phase 3
	Contact Configuration SPDT
	Mount Type DIN Rail
	Power Consumption 27VA
	Switching Voltage 400 V ac
	Terminal Type Screw
	IP Rating IP40, IP20
	Supply AC Voltage 380/440 V ac
	Minimum Operating Temperature -20°C
	Contact Current 8A
	Maximum Operating Temperature 60°C
	Length 35.8mm
	Standards/Approvals UL 508, IEC/EN 61000-6-3, IES/EN 60255-5, CSA C22, RoHS, IEC/EN 61000-6-2
	Series PMV50
	Height 104.7mm
	Width 64.9 mm

COO (Country of Origin):: IT

Lovato PMV50 Series Monitoring Relay, SPDT, DIN Rail Mounting - PMV50NA440

This monitoring relay provides effective voltage monitoring in electrical systems, with a sensing range of 380 to 440V AC. It is essential for ensuring safety and efficiency across various applications, particularly in 3-phase environments. Its robust construction and IP20 rating make it suitable for diverse industrial automation tasks.

Features & Benefits

• Self-powered operation enables continuous voltage monitoring

• SPDT configuration offers flexible installation options

• Adjustable time delay settings from 0.1 to 20 seconds enhance accuracy

• Touch-safe terminals ensure secure and safe connections

• Compact dimensions facilitate easy integration onto DIN rails

Applications

• Manages voltage stability in industrial environments

• Utilised in electrical panel monitoring systems

• Suitable for installations requiring 3-phase voltage assessment

• Integrated into automation systems for reliable voltage regulation

• Applicable in machinery that may experience voltage fluctuations

How can it be install this device safely in my electrical panel?

Disconnect the power before installation. Mount the relay onto a DIN rail and securely connect the screw terminals to the voltage lines.

Can this relay be used with other monitoring devices?

Yes, it can be integrated with additional monitoring systems to enhance overall electrical safety and performance.

In what temperature range does this relay operate effectively?

The device operates efficiently within a temperature range of -20 to +60°C, providing versatility in various environments.
