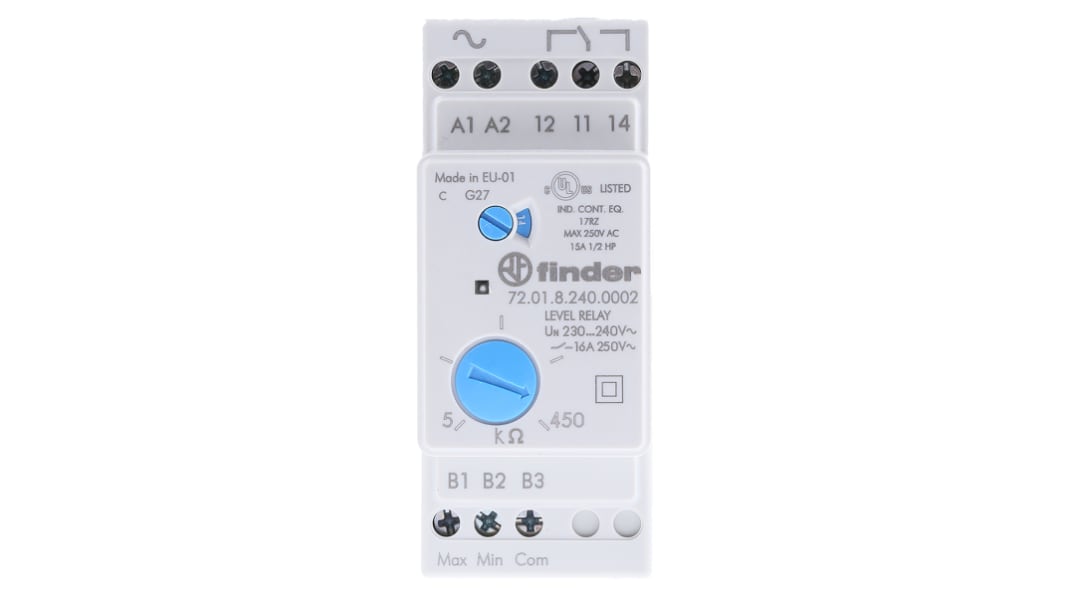

Finder Level Monitoring Relay, 1 Phase, SPDT, DIN Rail

View all Monitoring Relays
Bulk discount available

Subtotal (1 unit)*

£78.50

(exc. VAT)

£94.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 23 unit(s) shipping from 03 November 2025
  • Plus 8 unit(s) shipping from 03 November 2025
  • Plus 22 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£78.50
5 +£75.30

*price indicative

RS Stock No.:
776-1585
Mfr. Part No.:
72.01.8.240.0002
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Monitoring Application

Level

Electrical Phase

1

Contact Configuration

SPDT

Mounting Type

DIN Rail

Time Delay

0.5 → 7s

Temperature Sensing Range

-20 → +60°C

Series

72

Operating Temperature Range

+60°C

Dimensions

58 x 35 x 84mm

Maximum Operating Temperature

+60°C

Length

58mm

Terminal Type

Screw

Number of Poles

1

Minimum Operating Temperature

-20°C

Width

35mm

Height

84mm

COO (Country of Origin):
IT

Finder Series 72 Monitoring Relay, Level monitoring, Current Sensitivity 16A - 72.01.8.240.0002


This monitoring relay is a vital component in automation systems, designed for level monitoring of conductive liquids. It operates within a voltage sensing range of 184 to 253V and features a compact DIN rail mounting design. Measuring 58 x 35 x 84mm, it provides reliable performance with adjustable sensitivity settings, making it suitable for various applications.

Features & Benefits


• Adjustable current sensitivity up to 16A for diverse applications
• SPDT relay configuration allows for simple integration
• Quick time delay settings from 0.5 to 7 seconds enhance control
• Meets CE, cULus, and EAC standards for assured quality
• Screw terminal type ensures secure and easy connections

Applications


• Used in swimming pools for water level control
• Suitable for monitoring in bottling and milk processing plants
• Employed in control panels for pumps and industrial washing machines
• Functions effectively in level control for conductive liquids in various industries

How does the adjustable sensitivity feature benefit my application?


The adjustable sensitivity allows precise control of the relay based on the specific conductivity of liquids, which optimises operational efficiency and prevents false readings.

What safety standards does this device comply with?


This relay meets several safety standards including CE, cULus, and EAC, ensuring its reliability and suitability for industrial applications.

Can this relay be used for both filling and emptying functions?


Yes, it is designed to operate in both filling and emptying roles, allowing flexibility in liquid management processes across various setups.

What is the maximum operating temperature for this relay?


The maximum operating temperature is +60°C, allowing it to function effectively in a range of environments commonly found in industrial settings.
