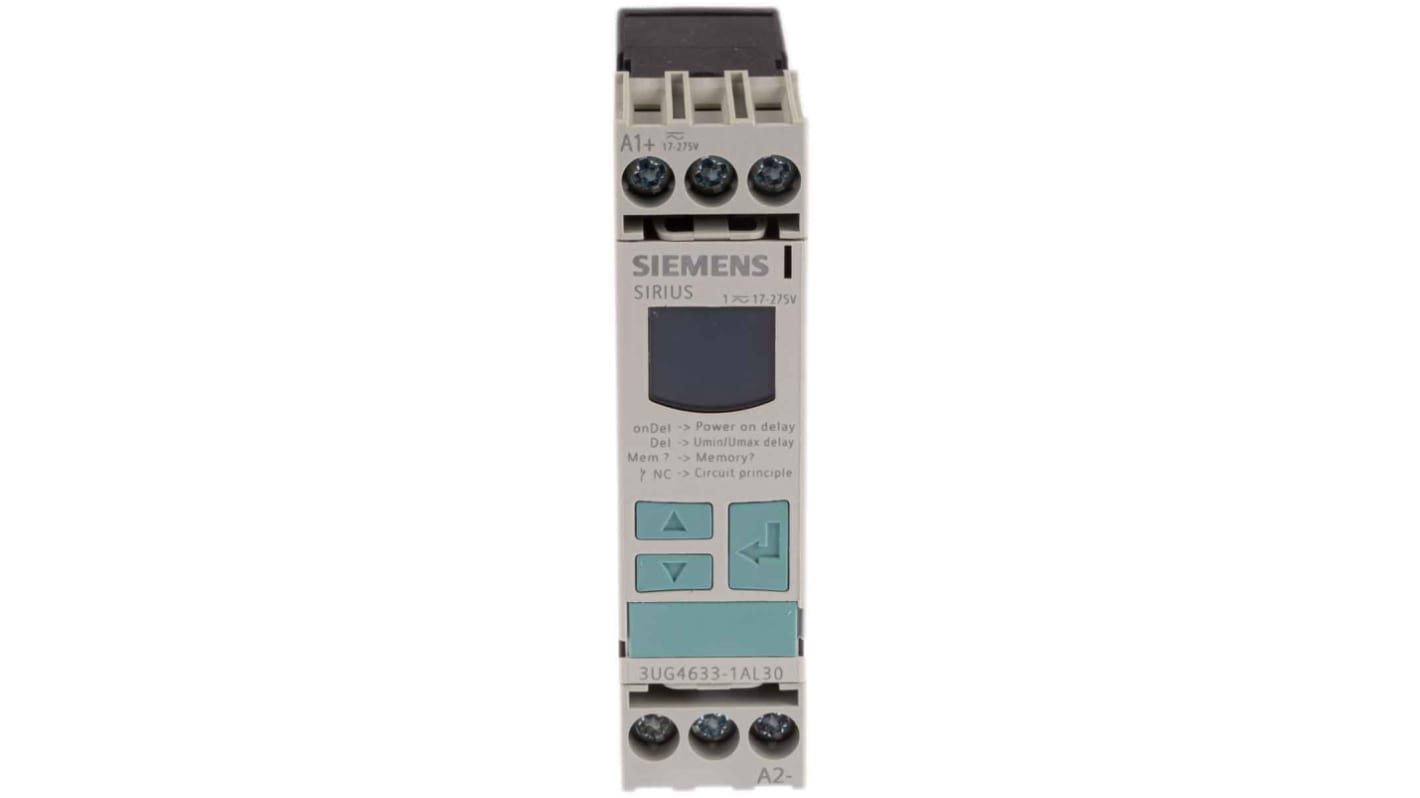

Siemens Voltage Monitoring Relay, 1 Phase, SPDT, 17 → 275V ac/dc, DIN Rail
- RS Stock No.:
- 758-6946
- Mfr. Part No.:
- 3UG4633-1AL30
- Brand:
- Siemens
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 758-6946
- Mfr. Part No.:
- 3UG4633-1AL30
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Monitoring Application | Voltage | |
Electrical Phase | 1 | |
Voltage Sensing Range | 17 → 275V ac/dc | |
Contact Configuration | SPDT | |
Voltage Sensitivity | Overvoltage, Undervoltage | |
Mounting Type | DIN Rail | |
Time Delay | 0.1 → 20s | |
Series | 3UG4 | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +60°C | |
Width | 22.5mm | |
Dimensions | 92 x 22.5 x 91mm | |
Terminal Type | Screw | |
Height | 92mm | |
Operating Temperature Range | -25 → +60°C | |
Maximum Voltage Sensed | 275V ac/dc | |
Length | 91mm | |
Number of Poles | 1 | |
Standards Met | EAC | |
Minimum Voltage Sensed | 17V ac/dc | |
Select all | ||
---|---|---|
Brand Siemens | ||
Monitoring Application Voltage | ||
Electrical Phase 1 | ||
Voltage Sensing Range 17 → 275V ac/dc | ||
Contact Configuration SPDT | ||
Voltage Sensitivity Overvoltage, Undervoltage | ||
Mounting Type DIN Rail | ||
Time Delay 0.1 → 20s | ||
Series 3UG4 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +60°C | ||
Width 22.5mm | ||
Dimensions 92 x 22.5 x 91mm | ||
Terminal Type Screw | ||
Height 92mm | ||
Operating Temperature Range -25 → +60°C | ||
Maximum Voltage Sensed 275V ac/dc | ||
Length 91mm | ||
Number of Poles 1 | ||
Standards Met EAC | ||
Minimum Voltage Sensed 17V ac/dc | ||
- COO (Country of Origin):
- DE
Siemens 3UG4 Series Monitoring Relay, SPDT Contact Configuration, 17 to 275V AC/DC Voltage Sensing Range - 3UG4633-1AL30
This monitoring relay is designed for effective voltage control in various electrical applications. It provides overvoltage and undervoltage protection, playing a critical role in safeguarding equipment from electrical anomalies. The device is suitable for environments requiring dependable monitoring, serving as an essential tool for professionals in the automation and electrical sectors.
Features & Benefits
• Voltage sensing range from 17 to 275V AC/DC for versatile Applications
• SPDT relay configuration supports flexible circuit design
• Adjustable time delay of 0.1 to 20 seconds for precise control
• Operates effectively within a temperature range of -25 to +60°C
• Easy installation on DIN rail for space-efficient mounting
• EAC standards compliance ensures safety and consistency
• SPDT relay configuration supports flexible circuit design
• Adjustable time delay of 0.1 to 20 seconds for precise control
• Operates effectively within a temperature range of -25 to +60°C
• Easy installation on DIN rail for space-efficient mounting
• EAC standards compliance ensures safety and consistency
Applications
• Real-time voltage monitoring in critical systems
• Electrical phase monitoring in industrial environments
• Integration in control panels for enhanced functionality
• Automation systems requiring consistent voltage oversight
• Protection circuits to prevent equipment damage
• Electrical phase monitoring in industrial environments
• Integration in control panels for enhanced functionality
• Automation systems requiring consistent voltage oversight
• Protection circuits to prevent equipment damage
How can the time delay be adjusted for specific applications?
The time delay can be modified using the designated control on the device, allowing settings between 0.1 to 20 seconds.
What kind of systems is this relay compatible with?
It is compatible with various industrial and automation systems needing effective voltage monitoring and phase protection.
