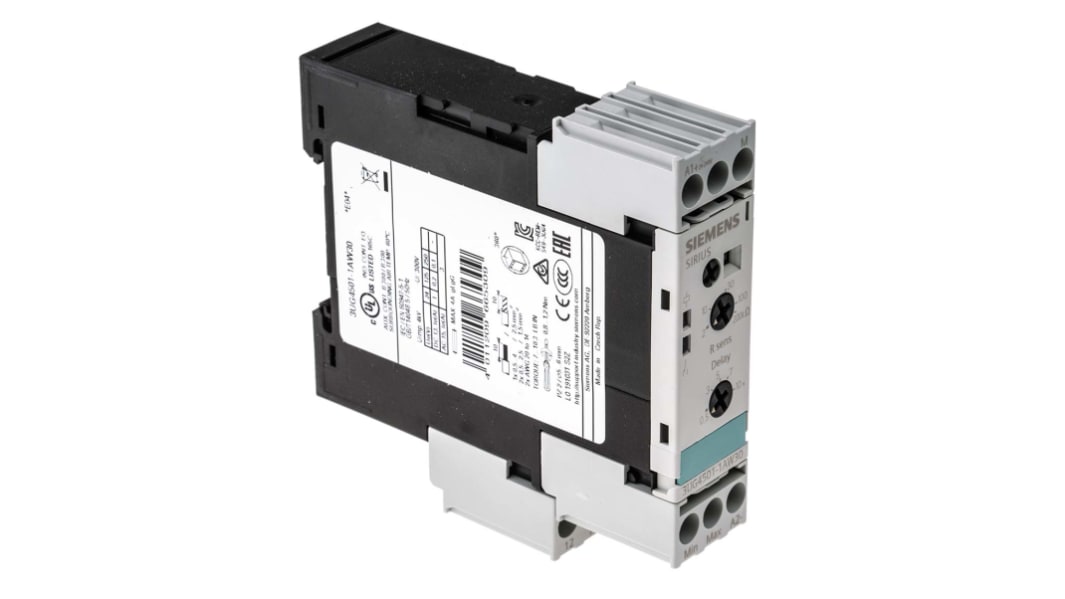

Siemens Monitoring Relay, SPDT, Snap-On, 275V ac 275 V dc
- RS Stock No.:
- 758-6927
- Distrelec Article No.:
- 137-54-788
- Mfr. Part No.:
- 3UG4501-1AW30
- Brand:
- Siemens
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 758-6927
- Distrelec Article No.:
- 137-54-788
- Mfr. Part No.:
- 3UG4501-1AW30
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Monitoring Relay | |
| Contact Configuration | SPDT | |
| Mount Type | Snap-On | |
| Switching Voltage | 275V | |
| Power Consumption | 2W | |
| Terminal Type | Screw | |
| Time Delay | 0.3 to 10 s | |
| IP Rating | IP20 | |
| Contact Current | 3A | |
| Supply DC Voltage | 275 V dc | |
| Minimum Operating Temperature | -25°C | |
| Supply AC Voltage | 275V ac | |
| Maximum Operating Temperature | 60°C | |
| Series | 3UG4 | |
| Length | 91mm | |
| Height | 92mm | |
| Width | 22.5mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Monitoring Relay | ||
Contact Configuration SPDT | ||
Mount Type Snap-On | ||
Switching Voltage 275V | ||
Power Consumption 2W | ||
Terminal Type Screw | ||
Time Delay 0.3 to 10 s | ||
IP Rating IP20 | ||
Contact Current 3A | ||
Supply DC Voltage 275 V dc | ||
Minimum Operating Temperature -25°C | ||
Supply AC Voltage 275V ac | ||
Maximum Operating Temperature 60°C | ||
Series 3UG4 | ||
Length 91mm | ||
Height 92mm | ||
Width 22.5mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CZ
Siemens Monitoring Relay, SPDT Contact Configuration, DIN Rail Mount - 3UG4501-1AW30
This monitoring relay serves as an advanced level monitoring device tailored for industrial applications. With dimensions of 92x22.5x91mm, it is designed for compact DIN rail mounting, making it versatile for different installations. It operates effectively within a temperature range of -25 to +60°C, suitable for dynamic environments that demand precise monitoring.
Features & Benefits
• Adjustable response time to meet specific monitoring requirements
• SPDT contact configuration for flexible electrical operations
• Compatible with both AC and DC voltage supply
• High shock resistance for dependable performance in tough conditions
• Removable screw terminal connections for easier installation
• Longevity with up to 10,000,000 mechanical operations
Applications
• Level detection in tanks and reservoirs
• Monitoring of resistance in various industrial processes
• Temperature monitoring in challenging environments
• Enhanced process control in automation systems
• Seamless integration with other electrical monitoring devices
Can it handle different voltage levels?
Yes, it accepts an input range of 24 to 240V AC/DC.
Is it suitable for outdoor installation?
No, this device has a protection class rated at IP20.
Will it indicate a fault during operation?
Yes, the monitoring functionality provides alerts for level violations.
Can it be reset externally?
Yes, it features an external reset function for added convenience.
Is the response delay adjustable?
Yes, the delay time can be adjusted from 0.5 to 10 seconds.
