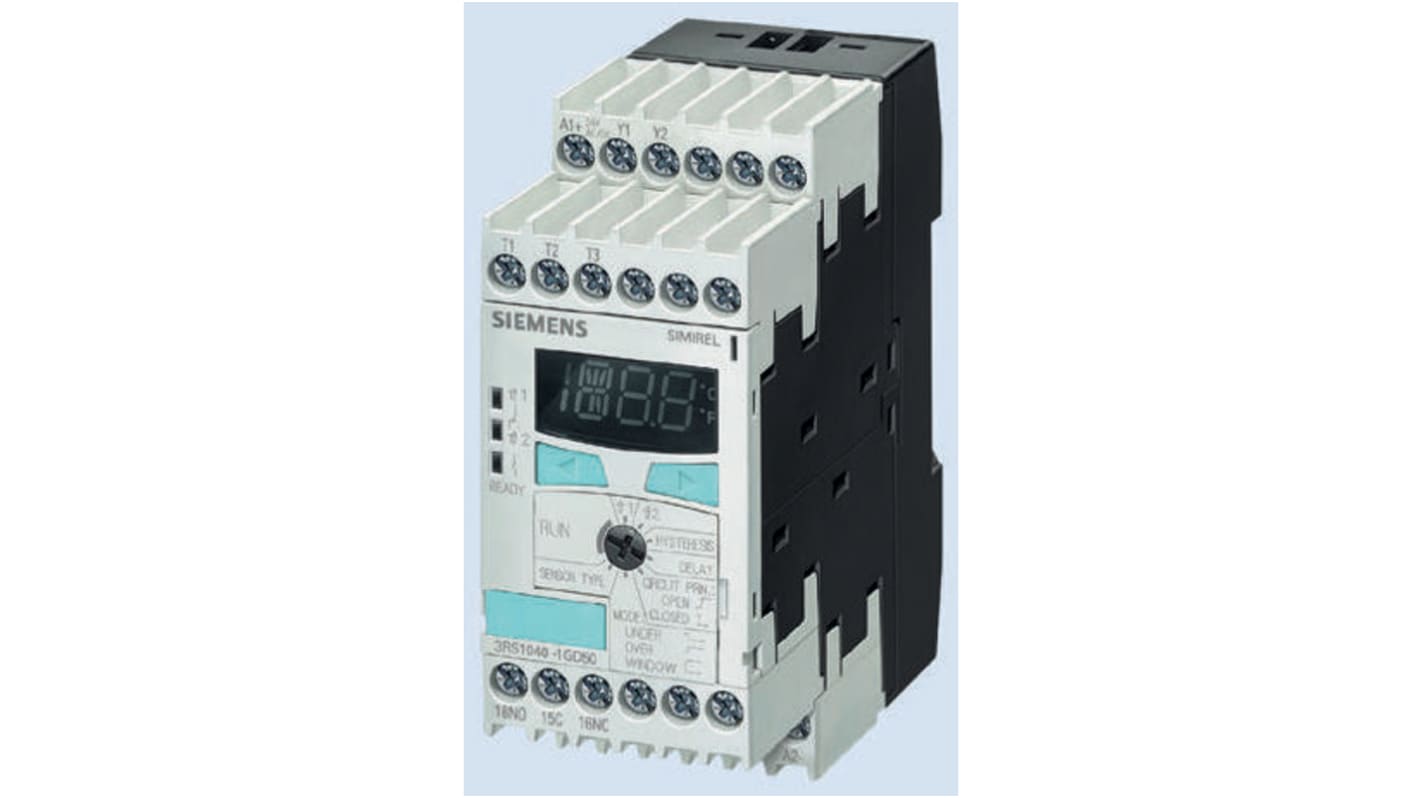

Siemens Temperature Monitoring Relay, DPDT
- RS Stock No.:
- 418-4988
- Mfr. Part No.:
- 3RS1040-1GW50
- Brand:
- Siemens
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£310.62
(exc. VAT)
£372.74
(inc. VAT)
- RS Stock No.:
- 418-4988
- Mfr. Part No.:
- 3RS1040-1GW50
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Monitoring Application | Temperature | |
| Contact Configuration | DPDT | |
| Time Delay | 0 → 999s | |
| Temperature Sensing Range | -50 → +500°C | |
| Temperature Sensitivity | Overtemperature, Undertemperature | |
| Series | 3RS1 | |
| Maximum Temperature Sensed | +500°C | |
| Dimensions | 91 x 45 x 106mm | |
| Height | 106mm | |
| Length | 91mm | |
| Operating Temperature Range | +60°C | |
| Minimum Temperature Sensed | -50°C | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Width | 45mm | |
| Maximum Operating Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Monitoring Application Temperature | ||
Contact Configuration DPDT | ||
Time Delay 0 → 999s | ||
Temperature Sensing Range -50 → +500°C | ||
Temperature Sensitivity Overtemperature, Undertemperature | ||
Series 3RS1 | ||
Maximum Temperature Sensed +500°C | ||
Dimensions 91 x 45 x 106mm | ||
Height 106mm | ||
Length 91mm | ||
Operating Temperature Range +60°C | ||
Minimum Temperature Sensed -50°C | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Width 45mm | ||
Maximum Operating Temperature +60°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Temperature Monitoring Relay, 3RS1040
Extremely simple operation with no complex menu
High-end evaluation units with digital display suitable for wide temperature ranges & variety of sensor types
Settable hysteresis
Fast troubleshooting by detecting wire breakage
Relay configuration: SPCO; SPNO
High-end evaluation units with digital display suitable for wide temperature ranges & variety of sensor types
Settable hysteresis
Fast troubleshooting by detecting wire breakage
Relay configuration: SPCO; SPNO
