Broyce Control Phase, Voltage Monitoring Relay With DPDT Contacts, 400 V ac, 3 Phase

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

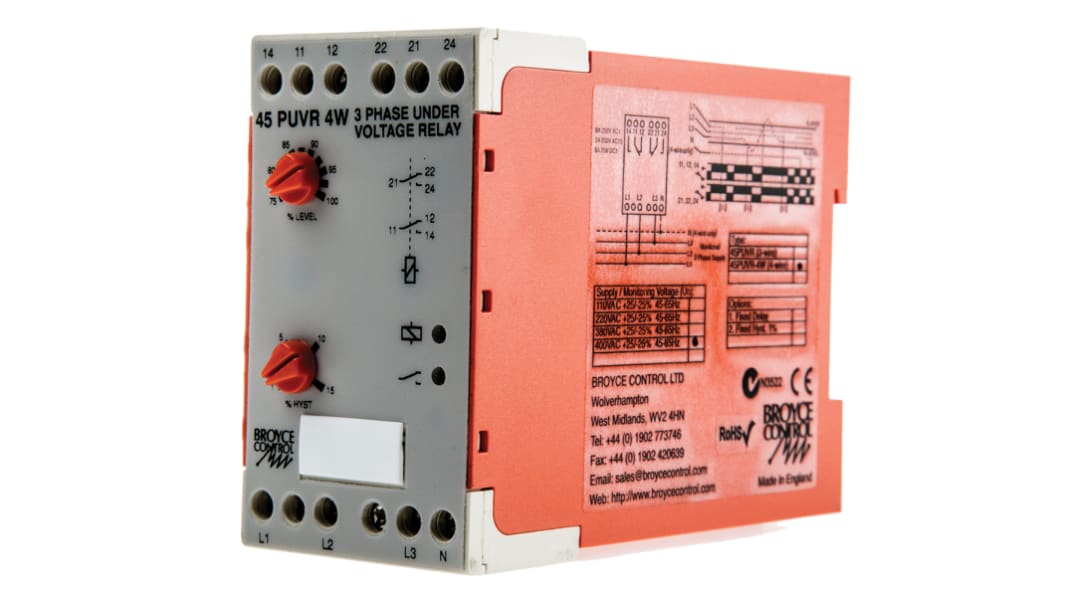

45PUVR - 3 phase Under-Voltage Relay

Detects under-voltage condition
Detects phase loss
Detects neutral loss (4-wire version)
Adjustment for trip level and hysteresis
Monitors own supply
Time delay: 200ms (from fault)
1 x DPDT relay output 8A
LED indication for supply and relay status
DIN rail housing
Write on identification tab
Dimensions: H78 x W45 x D99mm

Broyce Monitor Relays

Relay controllers manufactured using flame retardant material to UL94 VO
Electrical life: ≥150 000 operations
Suitable for use within ambient temperature environments from -20 to +60°C (except stock no. 361-1710 and 361-1681 which are suitable from -20 to +50°C)

Note

Output relay contact rating specified at 250Vac

Specifications
Attribute Value
Monitoring Application Phase, Voltage
Supply Voltage 400 V ac
Contact Configuration DPDT
Voltage Sensitivity Undervoltage
Electrical Phase 3
Voltage Sensing Range Maximum of 400 V ac
Phase Sensitivity Neutral Loss, Phase Loss
Time Delay 200 ms
Maximum Voltage Sensed 400V ac
Minimum Operating Temperature -20°C
Operating Temperature Range -20 → +60 °C
Maximum Operating Temperature +60°C
Height 78mm
Length 99mm
Width 45mm
Dimensions 99 x 45 x 78 mm
Available to back order for despatch 24/01/2020
Price Each
£ 69.22
(exc. VAT)
£ 83.06
(inc. VAT)
Units
Per unit
1 - 4
£69.22
5 +
£66.40
