Broyce Control Phase, Voltage Monitoring Relay, 1 Phase, SPDT, DIN Rail
- RS Stock No.:
- 222-6842
- Mfr. Part No.:
- LXCVR-EV 230VAC
- Brand:
- Broyce Control
Subtotal (1 unit)*
£60.24
(exc. VAT)
£72.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
| Units | Per unit |
|---|---|
| 1 + | £60.24 |
*price indicative
- RS Stock No.:
- 222-6842
- Mfr. Part No.:
- LXCVR-EV 230VAC
- Brand:
- Broyce Control
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
| Select all | Attribute | Value |
|---|---|---|
| Brand | Broyce Control | |
| Monitoring Application | Phase, Voltage | |
| Electrical Phase | 1 | |
| Contact Configuration | SPDT | |
| Voltage Sensitivity | Overvoltage, Undervoltage | |
| Mounting Type | DIN Rail | |
| Phase Sensitivity | Single Phase | |
| Time Delay | 4s | |
| Series | L | |
| Width | 17.5mm | |
| Maximum Operating Temperature | +60°C | |
| Operating Temperature Range | -20 → +60°C | |
| Dimensions | 17.5 x 89 x 66.5mm | |
| Minimum Operating Temperature | -20°C | |
| Length | 66.5mm | |
| Special Features | Fixed Trip Levels and Time Delay | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Select all | ||
|---|---|---|
| Brand Broyce Control | ||
| Monitoring Application Phase, Voltage | ||
| Electrical Phase 1 | ||
| Contact Configuration SPDT | ||
| Voltage Sensitivity Overvoltage, Undervoltage | ||
| Mounting Type DIN Rail | ||
| Phase Sensitivity Single Phase | ||
| Time Delay 4s | ||
| Series L | ||
| Width 17.5mm | ||
| Maximum Operating Temperature +60°C | ||
| Operating Temperature Range -20 → +60°C | ||
| Dimensions 17.5 x 89 x 66.5mm | ||
| Minimum Operating Temperature -20°C | ||
| Length 66.5mm | ||
| Special Features Fixed Trip Levels and Time Delay | ||
| Number of Poles 1 | ||
| Terminal Type Screw | ||
- COO (Country of Origin):
- GB

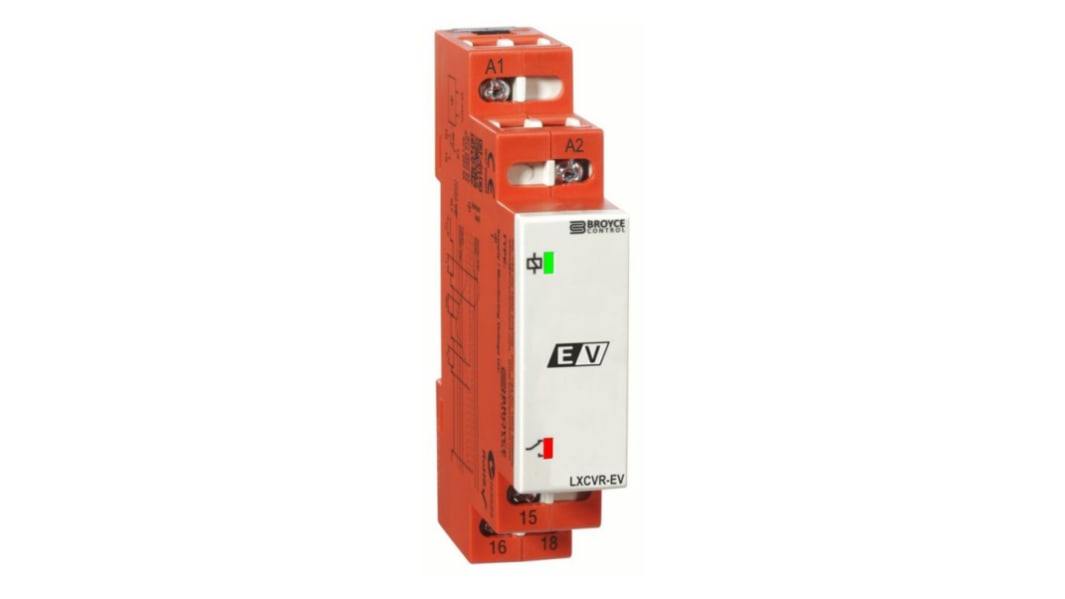

The Broyce Control LXCVR-EV monitor relay is designed for EV charging applications that do not require the use of an earth rod. This monitors the single phase supply voltage to the charger, and in conjunction with a contactor, disconnects the supply to the charger if the voltage exceeds the fixed trip levels.
Fixed Time delay (from Under or Over voltage condition) – 4s
True R.M.S. monitoring
Hysteresis is ≈2%
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay/timing status
17.5mm DIN rail housing
UL Listed
True R.M.S. monitoring
Hysteresis is ≈2%
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay/timing status
17.5mm DIN rail housing
UL Listed
