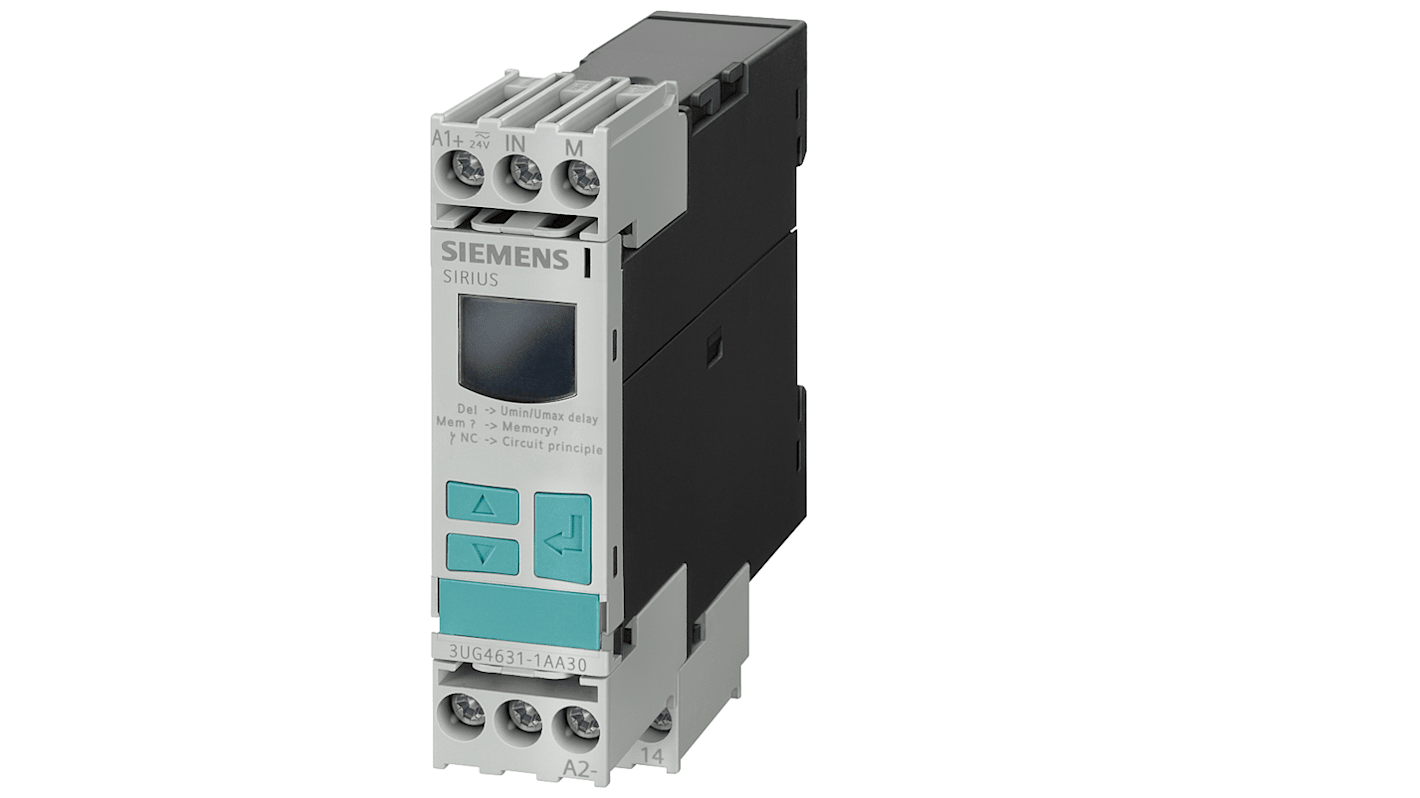

Siemens Monitoring Relay, 1 Phase, SPDT, Snap-On 24 V dc
- RS Stock No.:
- 213-1313
- Mfr. Part No.:
- 3UG4631-1AA30
- Brand:
- Siemens
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£321.41
(exc. VAT)
£385.69
(inc. VAT)
- RS Stock No.:
- 213-1313
- Mfr. Part No.:
- 3UG4631-1AA30
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Monitoring Relay | |
| Function | Overvoltage | |
| Electrical Phase | 1 | |
| Contact Configuration | SPDT | |
| Mount Type | Snap-On | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 5A | |
| Supply DC Voltage | 24 V dc | |
| Maximum Operating Temperature | 60°C | |
| Height | 92mm | |
| Standards/Approvals | UL, RoHS, RCM, EAC, CCC, CE | |
| Series | 3GU | |
| Width | 22.5mm | |
| Length | 91mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Monitoring Relay | ||
Function Overvoltage | ||
Electrical Phase 1 | ||
Contact Configuration SPDT | ||
Mount Type Snap-On | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 5A | ||
Supply DC Voltage 24 V dc | ||
Maximum Operating Temperature 60°C | ||
Height 92mm | ||
Standards/Approvals UL, RoHS, RCM, EAC, CCC, CE | ||
Series 3GU | ||
Width 22.5mm | ||
Length 91mm | ||
- COO (Country of Origin):
- DE
The Siemens 3UG series is a digital monitoring relay. The monitoring function is of phase monitoring. Withh 1 change-over contacts screw terminal connection system.
It has a protection class rating of IP20.
Product function Auto-reset is possible
galvanic isolation between entrance and outlet
