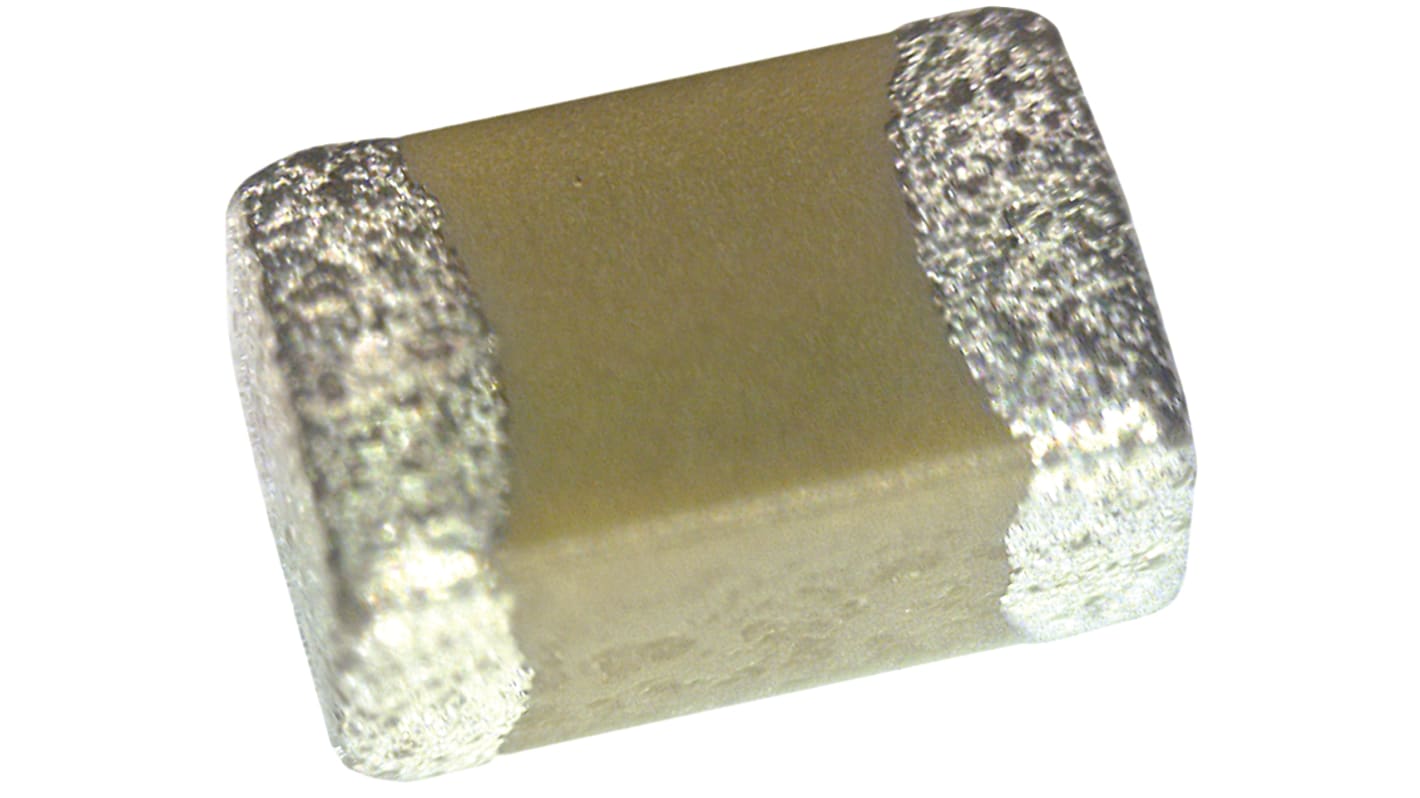

AVX 100nF Multilayer Ceramic Capacitor MLCC, 50V dc V, ±10% , SMD
- RS Stock No.:
- 464-6688P
- Mfr. Part No.:
- 08055C104KAT2A
- Brand:
- AVX
999950 In stock - FREE next working day delivery available
Added
Price Each (Supplied on a Reel) Quantities below 150 on continuous strip
£0.023
(exc. VAT)
£0.028
(inc. VAT)
| Units | Per unit |
| 50 + | £0.023 |
- RS Stock No.:
- 464-6688P
- Mfr. Part No.:
- 08055C104KAT2A
- Brand:
- AVX
Technical Reference
Legislation and Compliance
Product Details
AVX - X7R Dielectric Multilayer Ceramic Capacitors
The X7R dielectric MLCC’s from AVX offer a ’temperature stable’ range of capacitors which can be used in a wide operating temperature range from -55°C to +125°C. These capacitors are an excellent choice for a wide range of applications that have changes in capacitance due to applied voltages.
Features & Benefits
Capacitance ±15% from -55°C to +125°C
’Temperature stable’ range of capacitors
’Temperature stable’ range of capacitors
Applications
Can be used with a wide range of industrial applications where changes in capacitance occur
0805 Range
Nickel barrier terminations covered with a layer of plated Tin (NiSn). Applications include mobile phones, video and tuner designs, COG/NPO is the most popular formulation of the "temperature compensating", EIA Class I ceramic materials, X7R, X5R formulations are called "temperature stable" ceramics and fall into the EIA Class II materials, Y5V, Z5U formulations are for general purpose use in a limited temperature range, EIA Class II materials; these characteristics are ideal for decoupling applications.
Specifications
Attribute | Value |
|---|---|
| Capacitance | 100nF |
| Voltage | 50V dc |
| Package/Case | 0805 (2012M) |
| Mounting Type | Surface Mount |
| Dielectric | X7R |
| Tolerance | ±10% |
| Dimensions | 2.01 x 1.25 x 0.94mm |
| Length | 2.01mm |
| Depth | 1.25mm |
| Height | 0.94mm |
| Series | Standard |
| Terminal Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
