- RS Stock No.:
- 185-3188
- Mfr. Part No.:
- GQM1875C2E101JB12D
- Brand:
- Murata
Available to back order for despatch 09/09/2024
Added
Price Each (On a Reel of 4000)
£0.123
(exc. VAT)
£0.148
(inc. VAT)
Units | Per unit | Per Reel* |
4000 + | £0.123 | £492.00 |
*price indicative |
- RS Stock No.:
- 185-3188
- Mfr. Part No.:
- GQM1875C2E101JB12D
- Brand:
- Murata
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

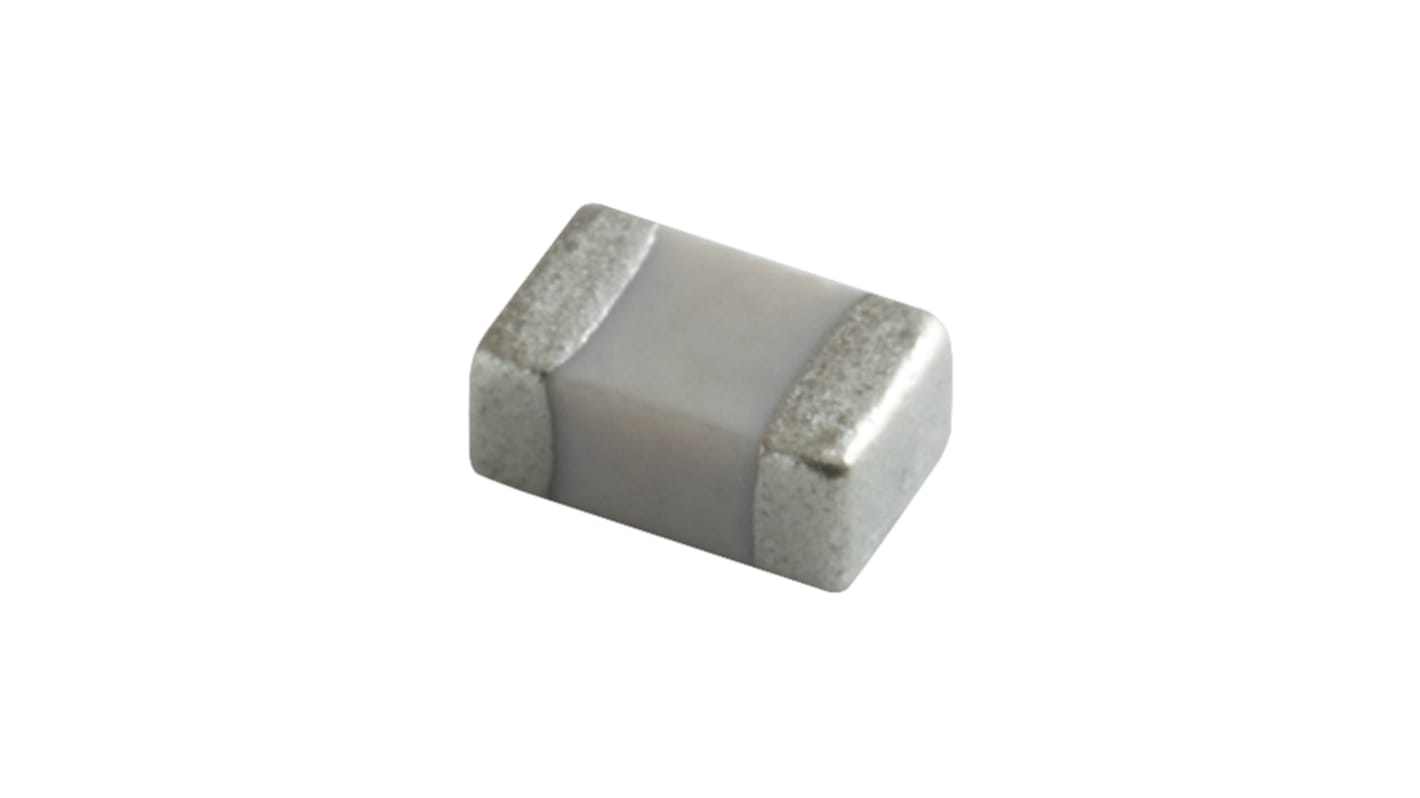

High Frequency Capacitor Ideal for PA Design of Base Stations.
Mainly ideal for base stations of mobile communication devices and temperature compensation of related modules
This product is ideal for temperature compensation of high frequency circuits, such as resonant circuits, tuning circuits, and impedance matching circuits where the operating characteristics of the device are greatly affected by the capacitance fluctuation
High Q and low ESR in VHF, UHF and microwave frequency bands
High Q and low ESR were achieved at a high frequency by adopting ceramic material as the dielectric material which enables an extremely low loss at high frequency, and base metal electrodes as the internal electrodes
Can be used for tight tolerance
In addition to standard tolerance, the allowable range of this product is also suitable for the narrow tolerance
This product is ideal for temperature compensation of high frequency circuits, such as resonant circuits, tuning circuits, and impedance matching circuits where the operating characteristics of the device are greatly affected by the capacitance fluctuation
High Q and low ESR in VHF, UHF and microwave frequency bands
High Q and low ESR were achieved at a high frequency by adopting ceramic material as the dielectric material which enables an extremely low loss at high frequency, and base metal electrodes as the internal electrodes
Can be used for tight tolerance
In addition to standard tolerance, the allowable range of this product is also suitable for the narrow tolerance
Specifications
Attribute | Value |
---|---|
Capacitance | 100pF |
Voltage | 250V dc |
Package/Case | 0603 (1608M) |
Mounting Type | Surface Mount |
Dielectric | C0G |
Tolerance | ±5% |
Dimensions | 1.6 x 0.8 x 0.7mm |
Length | 1.6mm |
Depth | 0.8mm |
Height | 0.7mm |
Series | GQM |
Minimum Operating Temperature | -55°C |
Terminal Type | Solder |
Maximum Operating Temperature | +125°C |
