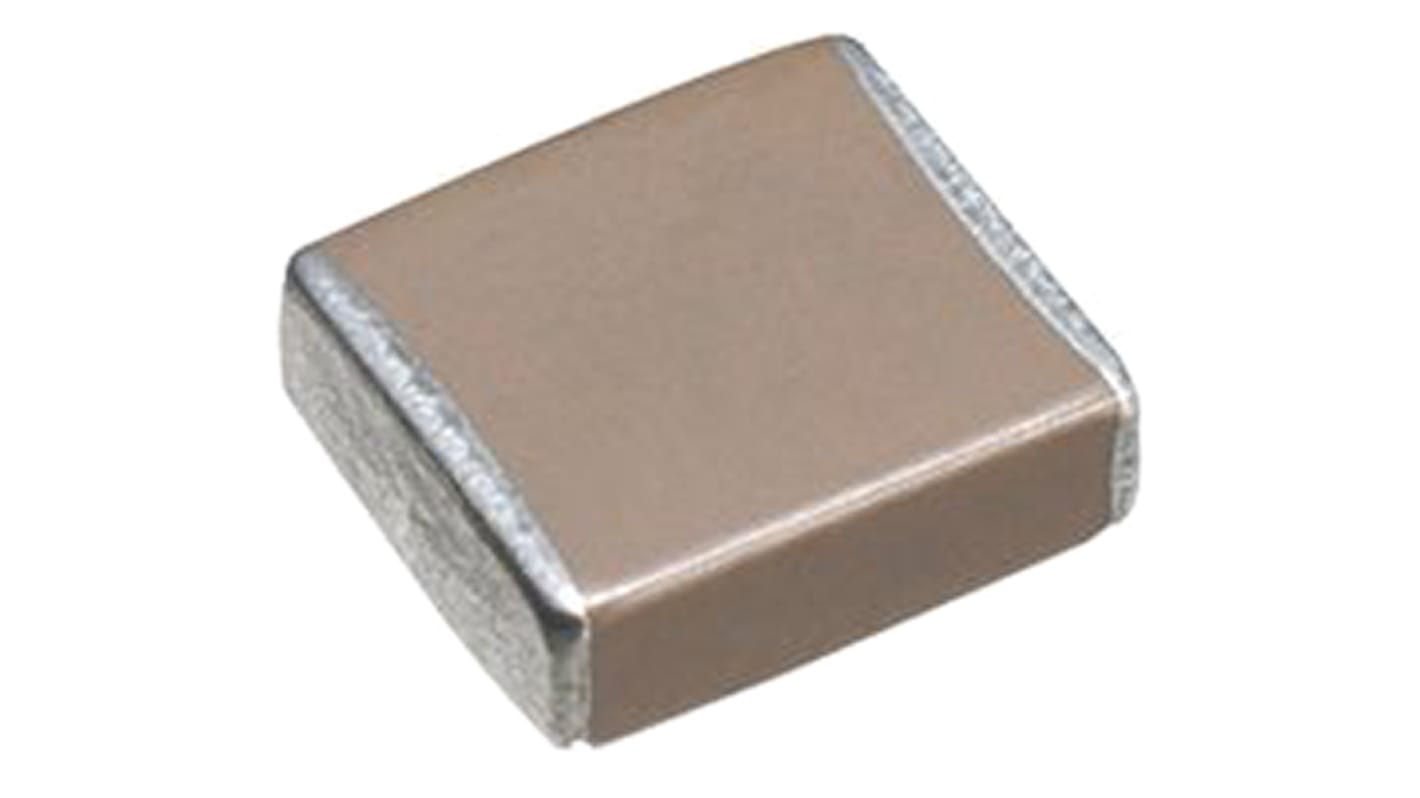

TDK 2.2μF Multilayer Ceramic Capacitor MLCC, 250V dc V, ±20% , SMD
- RS Stock No.:
- 111-0581
- Mfr. Part No.:
- C5750X7T2E225M250KE
- Brand:
- TDK
Discontinued product
- RS Stock No.:
- 111-0581
- Mfr. Part No.:
- C5750X7T2E225M250KE
- Brand:
- TDK
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
TDK C Series 2220 (5750) Soft Terminal
Soft Termination C Series MLCC have improved board bending resistance, drop impact resistance,
thermal shock resistance, and heat cycle properties
thermal shock resistance, and heat cycle properties
• Conductive resin absorb external stress to protect solder joint parts and capacitor body
• Compliance with the RoHS Directive
• Compliance with the RoHS Directive
Applications:
• Switching power supply
• Telecom base station
• Electronic circuits mounted on alumina substrate
• SMT application which requires bending robustness in which solder joint reliability is problematic
• Telecom base station
• Electronic circuits mounted on alumina substrate
• SMT application which requires bending robustness in which solder joint reliability is problematic
Specifications
Attribute | Value |
|---|---|
| Capacitance | 2.2µF |
| Voltage | 250V dc |
| Package/Case | 2220 (5750M) |
| Mounting Type | Surface Mount |
| Dielectric | X7T |
| Tolerance | ±20% |
| Dimensions | 5.7 x 5 x 2.5mm |
| Length | 5.7mm |
| Depth | 5mm |
| Height | 2.5mm |
| Series | C |
| Minimum Operating Temperature | -55°C |
| Terminal Type | Surface Mount |
| Maximum Operating Temperature | +125°C |
