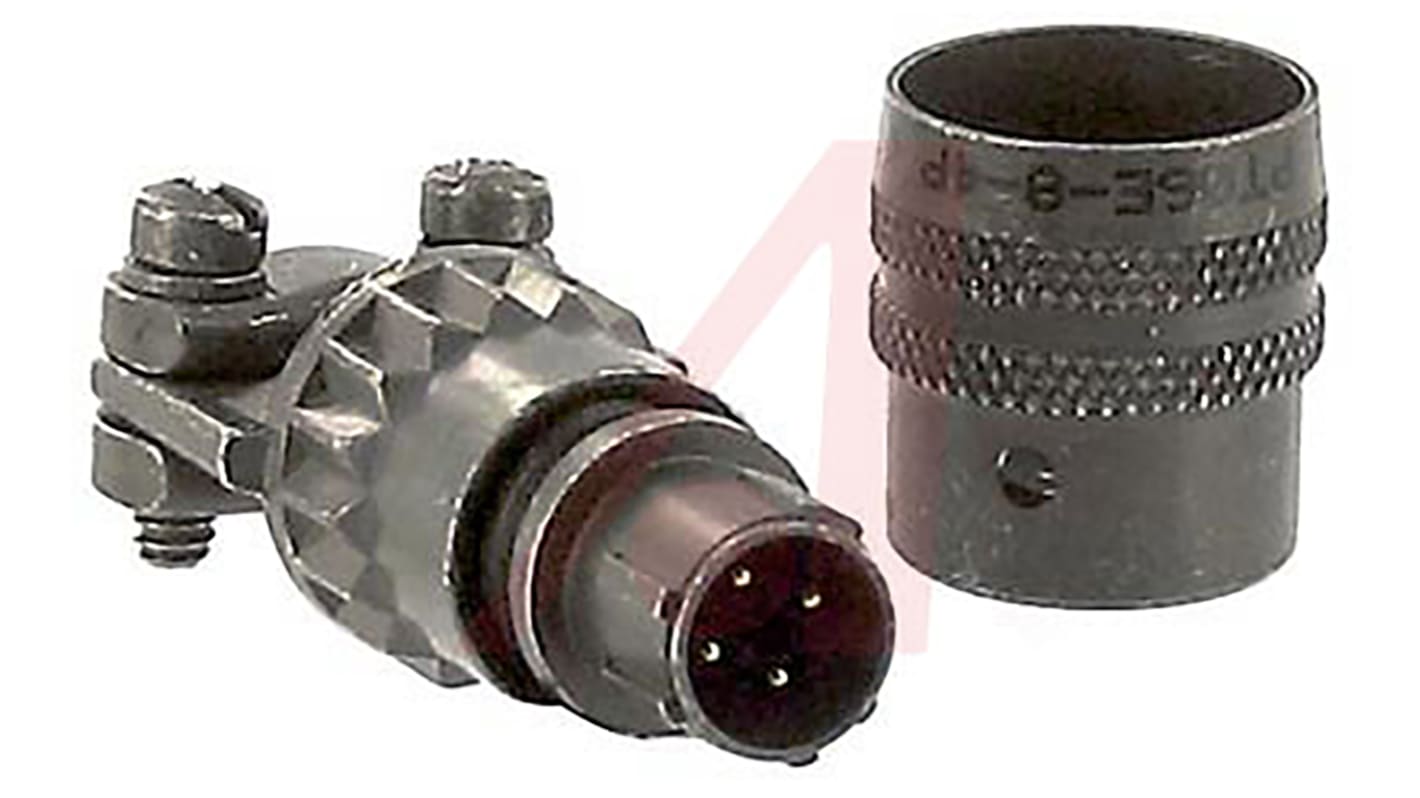

Amphenol Socapex, PT, Copper Alloy 4 Way Cable Mount MIL Spec Circular Connector PlugGreen, Pin Contacts,Shell Size 8,
- RS Stock No.:
- 872-1676
- Mfr. Part No.:
- PT06E-8-4P(SR)
- Brand:
- Amphenol Socapex
Save 10% when you buy 25 units
Subtotal (1 unit)*
£32.98
(exc. VAT)
£39.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 28 unit(s) shipping from 01 October 2025
- Plus 12 unit(s) shipping from 01 October 2025
- Plus 100 unit(s) shipping from 03 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £32.98 |
10 - 24 | £31.33 |
25 + | £29.68 |
*price indicative
- RS Stock No.:
- 872-1676
- Mfr. Part No.:
- PT06E-8-4P(SR)
- Brand:
- Amphenol Socapex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol Socapex | |
Number of Contacts | 4 | |
Gender | Male | |
Contact Gender | Male | |
Voltage Rating | 1 kV ac | |
Shell Size | 8 | |
Mounting Type | Cable Mount | |
Military Standard | MIL-DTL-26482 | |
Termination Method | Solder | |
Mating Type | Bayonet | |
Connector Size | Miniature | |
Body Orientation | Straight | |
Housing Material | Aluminium | |
Series | PT | |
Strain Relief | Yes | |
Colour | Green | |
Minimum Operating Temperature | -55°C | |
Contact Material | Copper Alloy | |
Shell Plating | Cadmium | |
Contact Plating | Gold | |
Maximum Operating Temperature | +125°C | |
Select all | ||
---|---|---|
Brand Amphenol Socapex | ||
Number of Contacts 4 | ||
Gender Male | ||
Contact Gender Male | ||
Voltage Rating 1 kV ac | ||
Shell Size 8 | ||
Mounting Type Cable Mount | ||
Military Standard MIL-DTL-26482 | ||
Termination Method Solder | ||
Mating Type Bayonet | ||
Connector Size Miniature | ||
Body Orientation Straight | ||
Housing Material Aluminium | ||
Series PT | ||
Strain Relief Yes | ||
Colour Green | ||
Minimum Operating Temperature -55°C | ||
Contact Material Copper Alloy | ||
Shell Plating Cadmium | ||
Contact Plating Gold | ||
Maximum Operating Temperature +125°C | ||
Non Compliant
Amphenol PT Series Connectors
The Amphenol PT series connectors, manufactured in accordance with MIL-DTL-26482 Series 1, is a range of high density circular connectors featuring a bayonet coupling mechanism for quick connect and disconnect. A wide range of Insert arrangements are available offering both power and signal contacts from 2 through to 61 circuits. The Amphenol PT series connectors are inter-mountable and interchangeable with other MIL-DTL-26482 connectors.
PT Solder is UL Approved Under File #E115497
Aluminum Shell Components For The Series
5 Key/ Keyway Polarisation With Bayonet Lock Coupling
Wide Range of Shell Sizes (8 Through 24)
Aluminum Shell Components For The Series
5 Key/ Keyway Polarisation With Bayonet Lock Coupling
Wide Range of Shell Sizes (8 Through 24)
Amphenol PT Series Connectors
