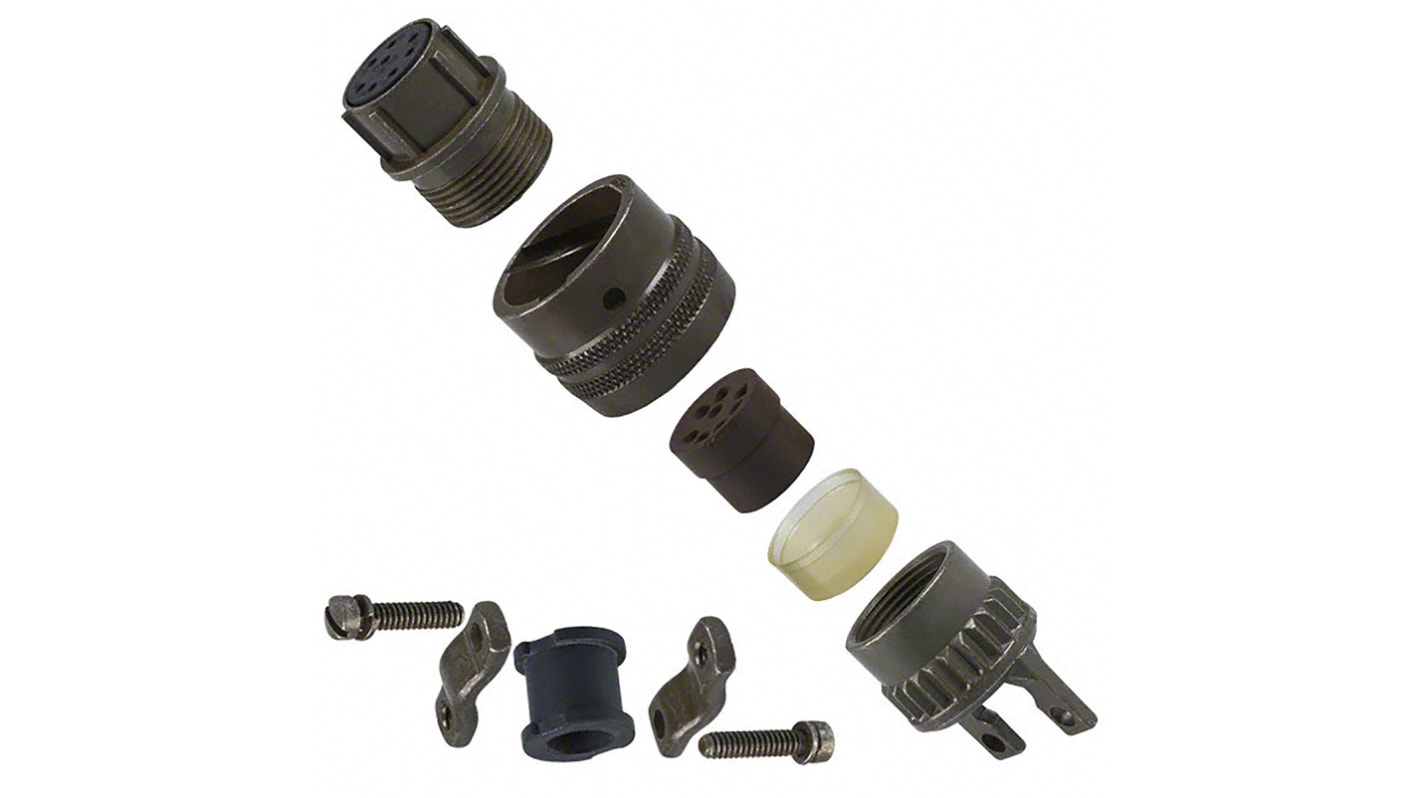

Amphenol Socapex, PT, Copper Alloy 5 Way Cable Mount MIL Spec Circular Connector PlugGreen, Pin Contacts,Shell Size 14,

View this category

Subtotal (1 unit)*

£41.34

(exc. VAT)

£49.61

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 25 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£41.34

*price indicative

RS Stock No.:
872-1651
Mfr. Part No.:
PT06E-14-5P(SR)
Brand:
Amphenol Socapex
Find similar products by selecting one or more attributes.
Select all

Brand

Amphenol Socapex

Number of Contacts

5

Gender

Male

Contact Gender

Male

Voltage Rating

1 kV ac

Shell Size

14

Mounting Type

Cable Mount

Military Standard

MIL-DTL-26482

Termination Method

Solder

Mating Type

Bayonet

Connector Size

Miniature

Body Orientation

Straight

Series

PT

Housing Material

Aluminium

Shell Plating

Cadmium

Contact Plating

Gold

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-55°C

Contact Material

Copper Alloy

Strain Relief

Yes

Colour

Green

Non Compliant

Amphenol PT Series Connectors


The Amphenol PT series connectors, manufactured in accordance with MIL-DTL-26482 Series 1, is a range of high density circular connectors featuring a bayonet coupling mechanism for quick connect and disconnect. A wide range of Insert arrangements are available offering both power and signal contacts from 2 through to 61 circuits. The Amphenol PT series connectors are inter-mountable and interchangeable with other MIL-DTL-26482 connectors.

PT Solder is UL Approved Under File #E115497
Aluminum Shell Components For The Series
5 Key/ Keyway Polarisation With Bayonet Lock Coupling
Wide Range of Shell Sizes (8 Through 24)


Amphenol PT Series Connectors
