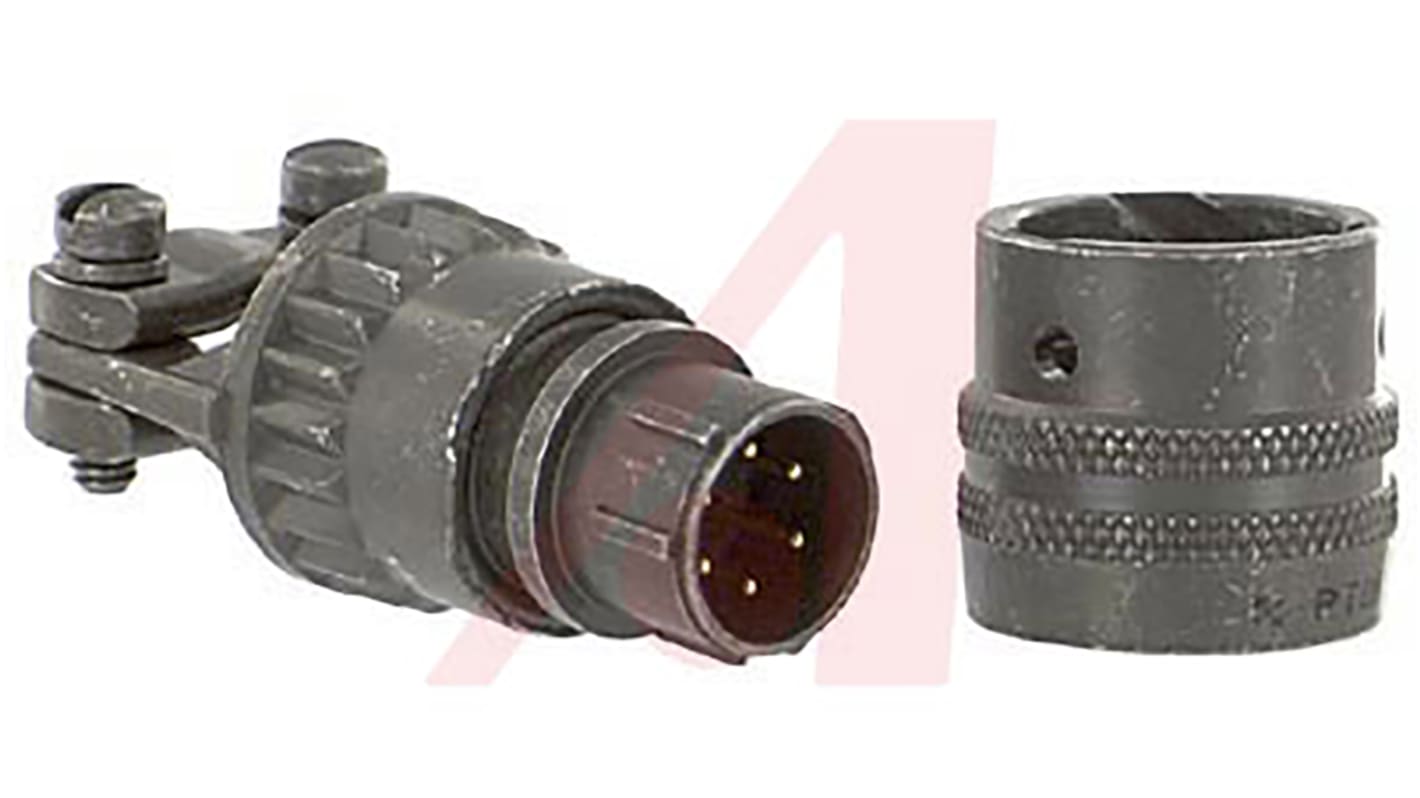

Amphenol Socapex, PT 6 Way Cable Mount MIL Spec Circular Connector Plug, Pin Contacts,Shell Size 10, Bayonet,
- RS Stock No.:
- 872-1607
- Mfr. Part No.:
- PT06E-10-6P(SR)
- Brand:
- Amphenol Socapex
12 In stock - FREE next working day delivery available
Added
Price Each
£33.03
(exc. VAT)
£39.64
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £33.03 |
| 10 - 24 | £31.77 |
| 25 + | £30.85 |
- RS Stock No.:
- 872-1607
- Mfr. Part No.:
- PT06E-10-6P(SR)
- Brand:
- Amphenol Socapex
Technical Reference
Legislation and Compliance
Non Compliant
Product Details
Amphenol PT Series Connectors
The Amphenol PT series connectors, manufactured in accordance with MIL-DTL-26482 Series 1, is a range of high density circular connectors featuring a bayonet coupling mechanism for quick connect and disconnect. A wide range of Insert arrangements are available offering both power and signal contacts from 2 through to 61 circuits. The Amphenol PT series connectors are inter-mountable and interchangeable with other MIL-DTL-26482 connectors.
PT Solder is UL Approved Under File #E115497
Aluminum Shell Components For The Series
5 Key/ Keyway Polarisation With Bayonet Lock Coupling
Wide Range of Shell Sizes (8 Through 24)
Aluminum Shell Components For The Series
5 Key/ Keyway Polarisation With Bayonet Lock Coupling
Wide Range of Shell Sizes (8 Through 24)
Amphenol PT Series Connectors
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 6 |
| Gender | Male |
| Contact Gender | Male |
| Voltage Rating | 1 kV ac |
| Shell Size | 10 |
| Mounting Type | Cable Mount |
| Military Standard | MIL-DTL-26482 |
| Termination Method | Solder |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Body Orientation | Straight |
| Series | PT |
| Housing Material | Aluminium |
| Strain Relief | Yes |
| Maximum Operating Temperature | +125°C |
| Contact Plating | Gold |
| Minimum Operating Temperature | -55°C |
| Contact Material | Copper Alloy |
| Colour | Green |
| Shell Plating | Cadmium |
