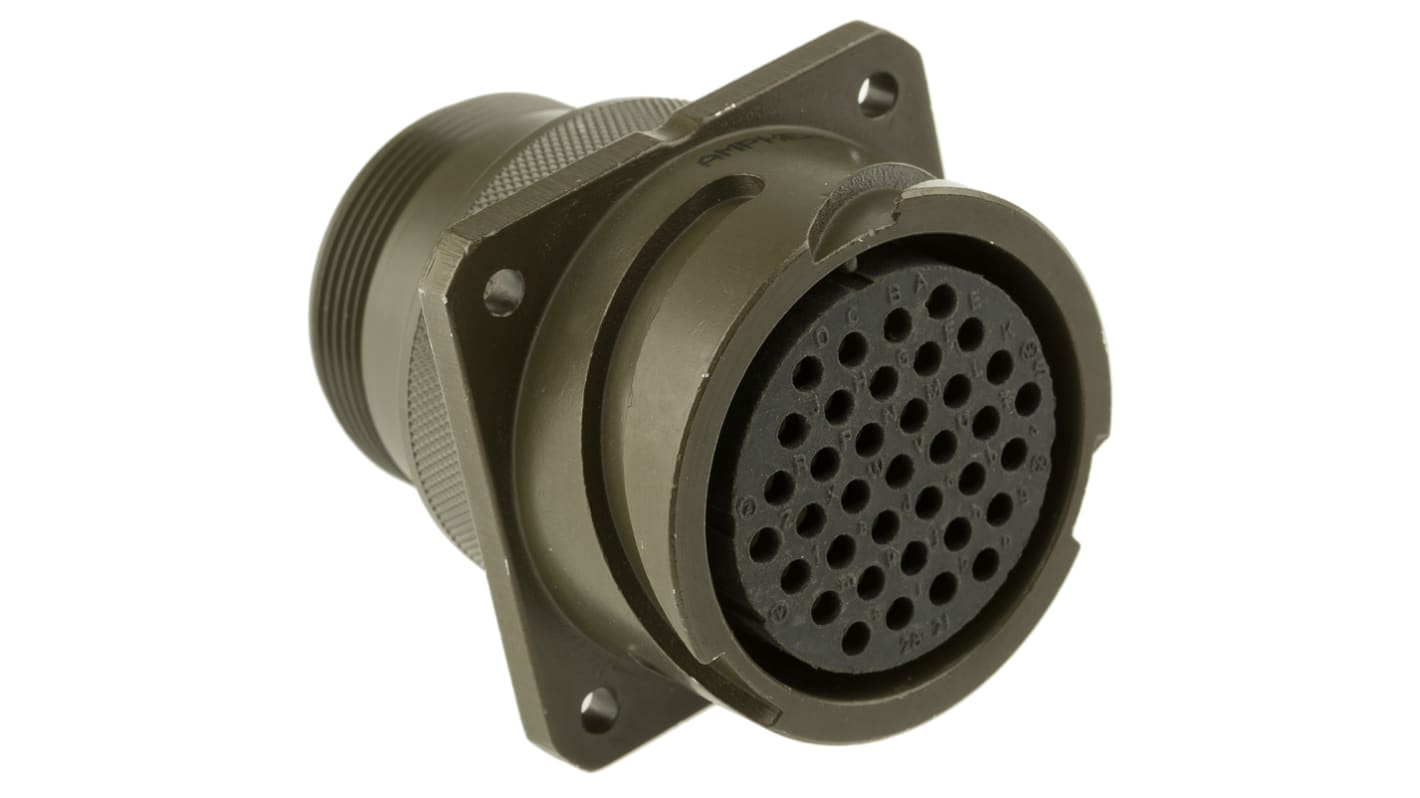

Amphenol Limited, 97B 37 Way Wall Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 28, Bayonet

RS Stock No.:: 442-2729
Mfr. Part No.:: 97B-3100A28-21S
Brand:: Amphenol Limited

Amphenol Limited, 97B 37 Way Wall Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 28, Bayonet

33 In stock - FREE next working day delivery available

Added

Price Each

£41.81

(exc. VAT)

£50.17

(inc. VAT)

Units	Per unit
1 - 4	£41.81
5 - 24	£40.60
25 +	£25.75

RS Stock No.:: 442-2729
Mfr. Part No.:: 97B-3100A28-21S
Brand:: Amphenol Limited

Technical Reference

Legislation and Compliance

Non Compliant

COO (Country of Origin):: IN

Product Details

Chassis Plugs and Sockets

Amphenol 97 Series solder type receptacles are available in a variety of different sizes, featuring 2 to 41 contacts. They offer a durable and reliable connection that is space efficient, and feature a threaded back shell that is suitable for MS/aN fittings. Available for male or female contacts.

Note

Cable-mounting plugs (pin contacts) will only mate with chassis sockets. Cable-mounting sockets will only mate with chassis plugs.

Standards

BS 9522; F0032

Specifications

Attribute	Value
Number of Contacts	37
Gender	Female
Contact Gender	Female
Current Rating	13A
Voltage Rating	500 V ac
Shell Size	28
Mounting Type	Wall Mount
Military Standard	MIL-DTL-5015
Termination Method	Solder
Mating Type	Bayonet Coupling
Body Orientation	Straight
Series	97B
Maximum Operating Temperature	+125°C
Shell Plating	Olive Drab Cadmium
Contact Plating	Silver
Contact Material	Brass
Minimum Operating Temperature	-55°C
