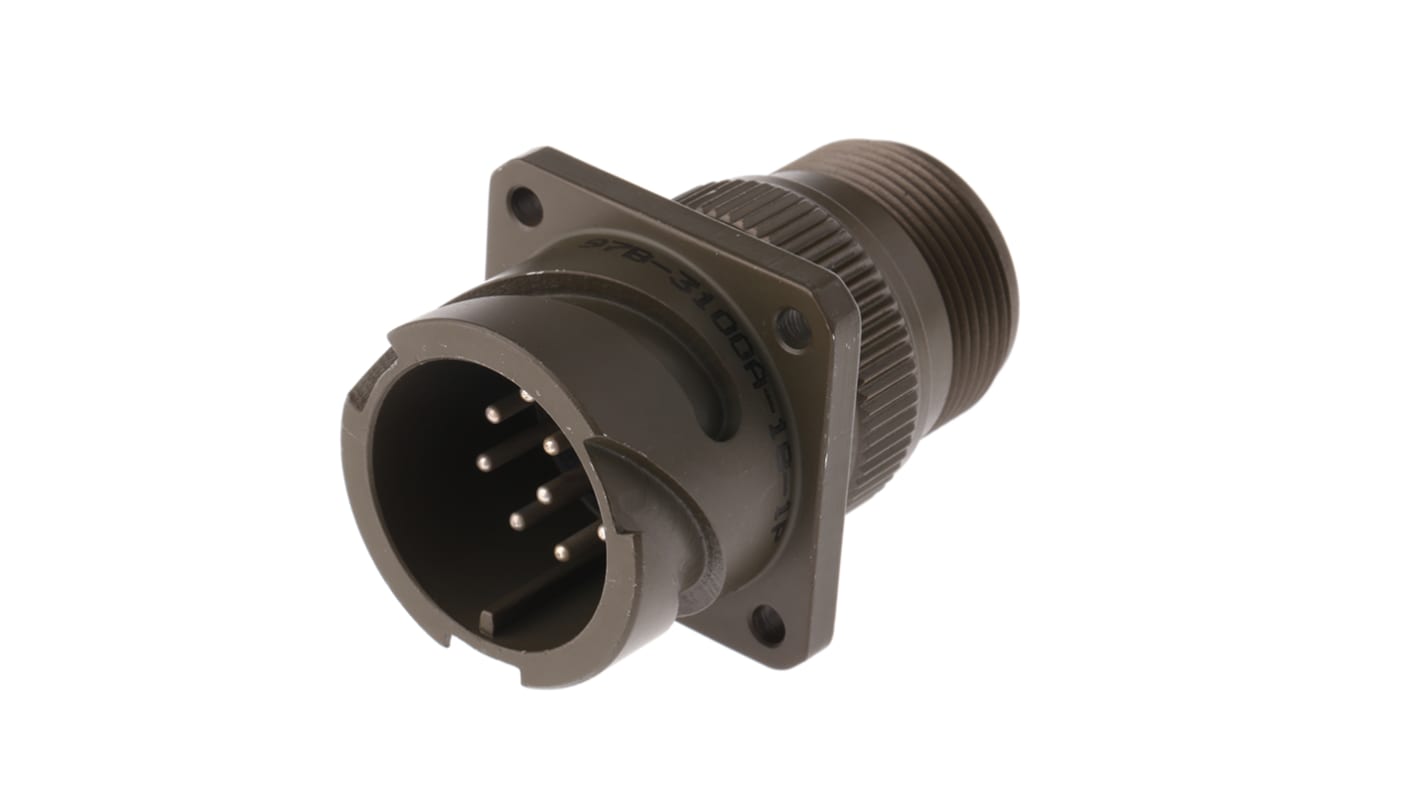

Amphenol Limited, 97B, Brass 10 Way Wall Mount MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 18,

View this category
Bulk discount available

Subtotal (1 unit)*

£16.01

(exc. VAT)

£19.21

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 17 unit(s) ready to ship
  • Plus 25 unit(s) ready to ship from another location
  • Plus 28 unit(s) shipping from 05 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£16.01
5 - 24£15.54
25 +£15.04

*price indicative

RS Stock No.:
442-2498
Mfr. Part No.:
97B-3100A18-1P
Brand:
Amphenol Limited
Find similar products by selecting one or more attributes.
Select all

Brand

Amphenol Limited

Number of Contacts

10

Gender

Female

Contact Gender

Male

Current Rating

13A

Voltage Rating

500 V ac

Shell Size

18

Mounting Type

Wall Mount

Military Standard

MIL-DTL-5015

Termination Method

Solder

Mating Type

Bayonet Coupling

Body Orientation

Straight

Series

97B

Contact Material

Brass

Contact Plating

Silver

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-55°C

Shell Plating

Olive Drab Cadmium

Non Compliant

COO (Country of Origin):
IN

Chassis Plugs and Sockets


Amphenol 97 Series solder type receptacles are available in a variety of different sizes, featuring 2 to 41 contacts. They offer a durable and reliable connection that is space efficient, and feature a threaded back shell that is suitable for MS/aN fittings. Available for male or female contacts.

Note

Cable-mounting plugs (pin contacts) will only mate with chassis sockets. Cable-mounting sockets will only mate with chassis plugs.

Standards

BS 9522; F0032


Olive Drab Mil-C-5015 Bayonet Lock


Bayonet locking, circular connectors which conform to MIL-C-5015 and are interconnectable with BS 9522 F0032 specification connectors.,All connectors, with the exception of four types, have size 16 contacts. The exceptions are as follows, with the contact size indicated within brackets - 20-A9 (size 12), 22-2 (size 8), 22-22 (size 8), and 24-2 (size 12). These connectors have a backshell (spacer tube) which may have to be discarded for certain cable clamps to be fitted.


Shell finish of aluminium alloy with olive drab finish
Polychloroprene insulator
Contacts of copper alloy with hard silver over nickel finish
Cable shells have arctic style finger grips
Solder bucket contacts
