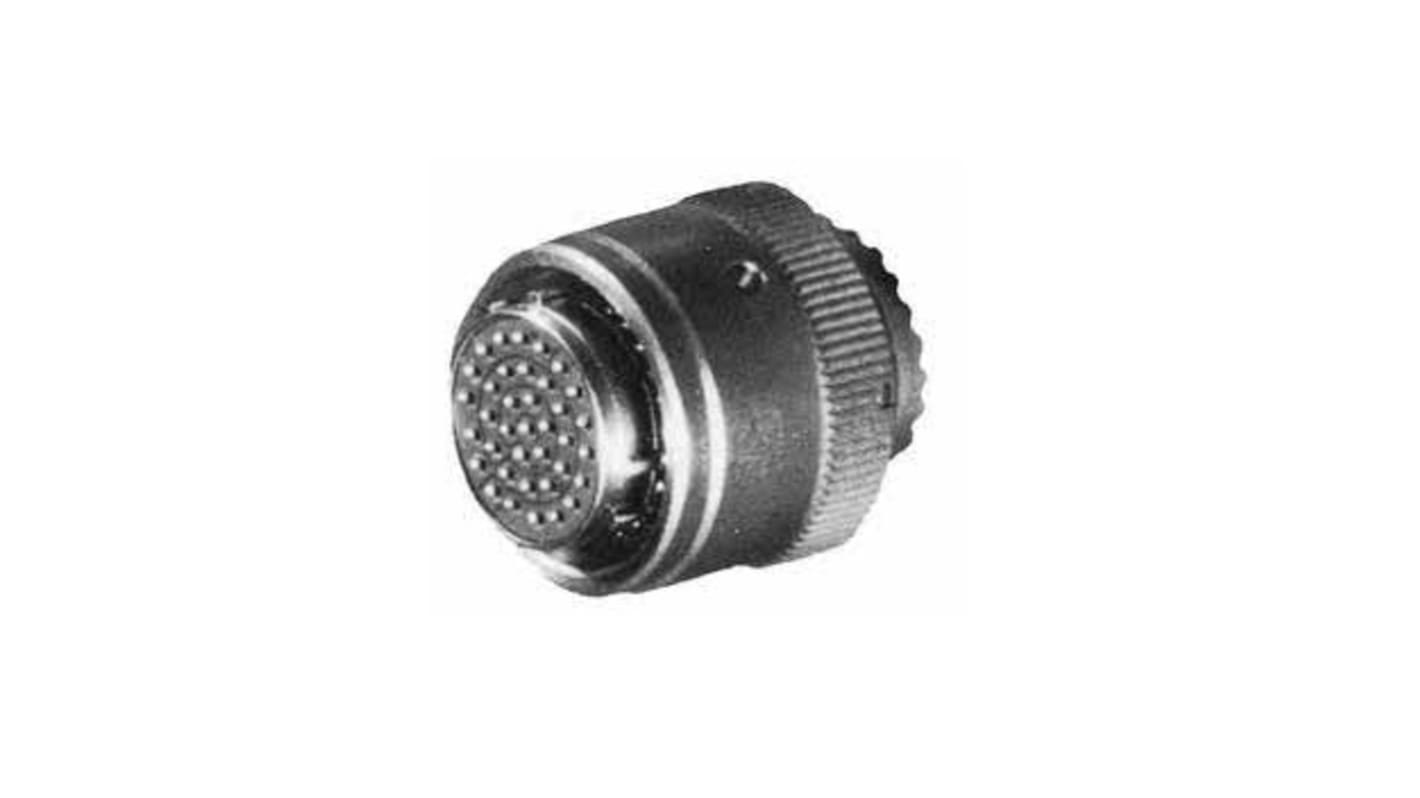

Amphenol Air LB, VG96912, Copper Alloy Straight 41 Way Circular Connector Male Olive Green, Male Contacts,Shell Size 20,
- RS Stock No.:
- 251-2819
- Mfr. Part No.:
- VG96912D20-41PN
- Brand:
- Amphenol Air LB
Bulk discount available
Subtotal (1 unit)*
£109.60
(exc. VAT)
£131.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £109.60 |
| 10 - 24 | £106.44 |
| 25 - 49 | £102.27 |
| 50 - 99 | £99.20 |
| 100 + | £96.56 |
*price indicative
- RS Stock No.:
- 251-2819
- Mfr. Part No.:
- VG96912D20-41PN
- Brand:
- Amphenol Air LB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Air LB | |
| Product Type | Circular Connector | |
| Number of Contacts | 41 | |
| Contact Gender | Male | |
| Current | 23A | |
| Connector Gender | Male | |
| Voltage | 850 V | |
| Shell Size | 20 | |
| Military Standard | MIL-DTL-38999 | |
| Termination Type | Cable | |
| Minimum Operating Temperature | -65°C | |
| Mating Type | Bayonet | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | VG 96912, EFA J 62-017, EN 3372, JN 1003, QPL | |
| Orientation | Straight | |
| Housing Material | Aluminium Alloy | |
| Series | VG96912 | |
| Contact Plating | Gold over Nickel | |
| Strain Relief | No | |
| Colour | Olive Green | |
| Shell Plating | Cadmium | |
| Contact Material | Copper Alloy | |
| Select all | ||
|---|---|---|
Brand Amphenol Air LB | ||
Product Type Circular Connector | ||
Number of Contacts 41 | ||
Contact Gender Male | ||
Current 23A | ||
Connector Gender Male | ||
Voltage 850 V | ||
Shell Size 20 | ||
Military Standard MIL-DTL-38999 | ||
Termination Type Cable | ||
Minimum Operating Temperature -65°C | ||
Mating Type Bayonet | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals VG 96912, EFA J 62-017, EN 3372, JN 1003, QPL | ||
Orientation Straight | ||
Housing Material Aluminium Alloy | ||
Series VG96912 | ||
Contact Plating Gold over Nickel | ||
Strain Relief No | ||
Colour Olive Green | ||
Shell Plating Cadmium | ||
Contact Material Copper Alloy | ||
Non Compliant
- COO (Country of Origin):
- DE
The Amphenol Air LB plug crimp is well suited for new technologies in the industrial and military sectors as well as aerospace applications where size, weight and reliability are of crucial importance.
Moisture proof
Numerous contact arrangements
