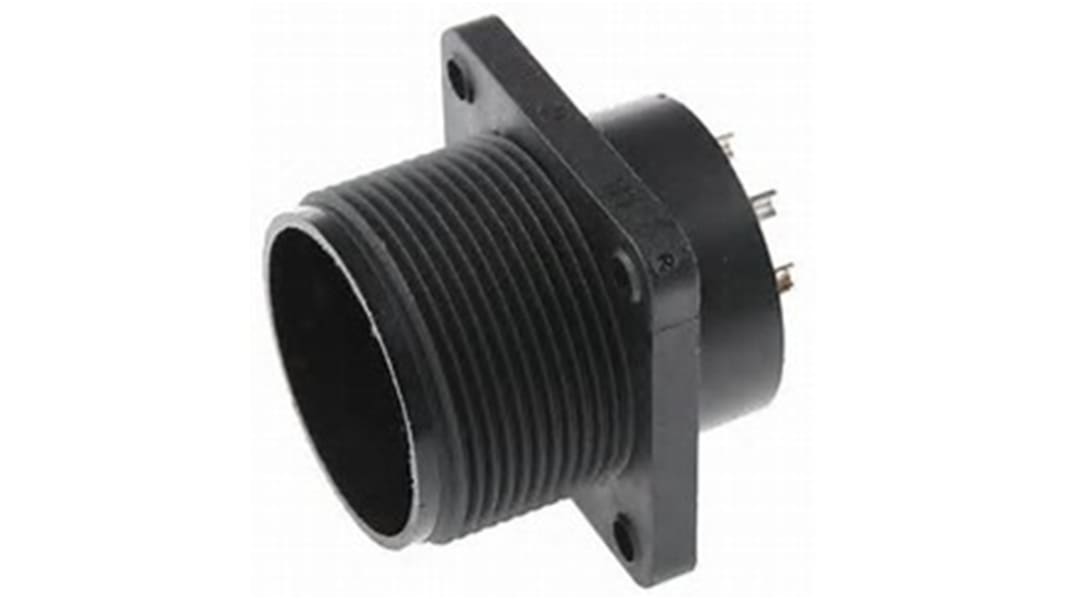

Hirschmann 14 Way Panel Mount MIL Spec Circular Connector, Pin Contacts,Shell Size 20, Screw Coupling, MIL-DTL-5015

View this category

Subtotal (1 bag of 200 units)*

£1,530.80

(exc. VAT)

£1,837.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,800 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
200 +£7.654£1,530.80

*price indicative

RS Stock No.:
168-5629
Mfr. Part No.:
933062100 CM 02 E 20-27 P
Brand:
Hirschmann
Find similar products by selecting one or more attributes.
Select all

Brand

Hirschmann

Number of Contacts

14

Contact Gender

Male

Current Rating

10A

Voltage Rating

50 V ac/dc

Shell Size

20

Mounting Type

Panel Mount

Military Standard

MIL-DTL-5015

Termination Method

Solder

Mating Type

Screw Coupling

Body Orientation

Straight

Maximum Operating Temperature

+90°C

Minimum Operating Temperature

-40°C

Contact Plating

Silver

CM Cable Sockets and Panel Plugs


These Hirschmann CM Glass-fibre reinforced polyamide connectors give a viable alternative to metal style military connector ranges. The Hirschman CM range gives options of 3 to 17 poles in 14S and 20 shell sizes, are designed to MIL-C-5015 & VG95342, and have the same mounting dimensions and contact arrangements as other manufacturers making them interchangeable with other screw locking types. They are also widely used for connecting continuous action and proportional action valves to DIN43563.


Hirschmann CA series connectors – Protection Class IP67


Threaded locking connectors, protection class up to IP67 DIN40050
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor
