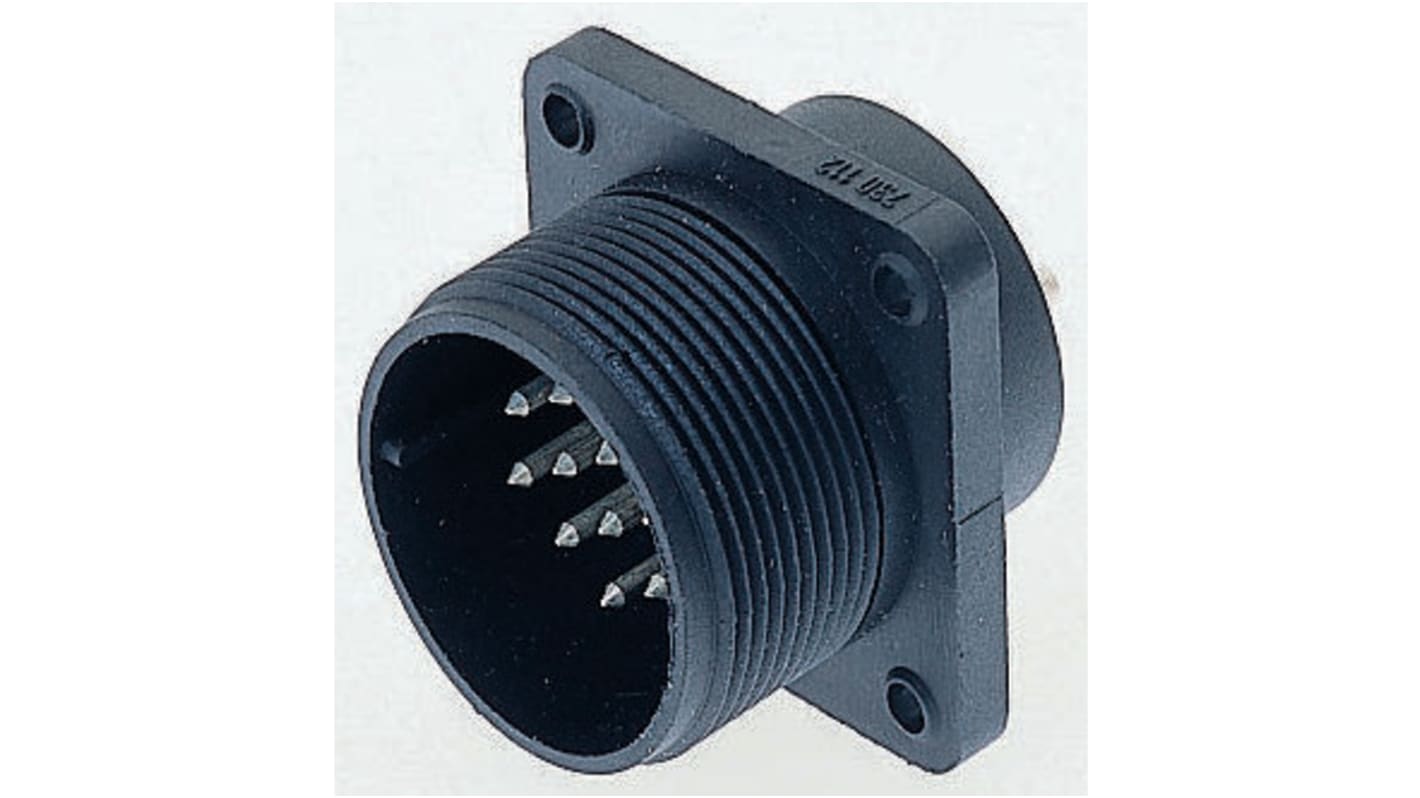

Hirschmann 6 Way Panel Mount MIL Spec Circular Connector, Pin Contacts,Shell Size 14, Screw Coupling, MIL-DTL-5015
- RS Stock No.:
- 168-5626
- Mfr. Part No.:
- 932451100 CM 02 E 14S-6 P
- Brand:
- Hirschmann
Available to back order for despatch 07/06/2024
Added
Price Each (In a Bag of 200)
£4.299
(exc. VAT)
£5.159
(inc. VAT)
| Units | Per unit | Per Bag* |
| 200 + | £4.299 | £859.80 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 168-5626
- Mfr. Part No.:
- 932451100 CM 02 E 14S-6 P
- Brand:
- Hirschmann
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
CM Cable Sockets and Panel Plugs
These Hirschmann CM Glass-fibre reinforced polyamide connectors give a viable alternative to metal style military connector ranges. The Hirschman CM range gives options of 3 to 17 poles in 14S and 20 shell sizes, are designed to MIL-C-5015 & VG95342, and have the same mounting dimensions and contact arrangements as other manufacturers making them interchangeable with other screw locking types. They are also widely used for connecting continuous action and proportional action valves to DIN43563.
Hirschmann CA series connectors – Protection Class IP67
Threaded locking connectors, protection class up to IP67 DIN40050
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 6 |
| Contact Gender | Male |
| Current Rating | 10A |
| Voltage Rating | 50 V ac/dc |
| Shell Size | 14 |
| Mounting Type | Panel Mount |
| Military Standard | MIL-DTL-5015 |
| Termination Method | Solder |
| Mating Type | Screw Coupling |
| Body Orientation | Straight |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +90°C |
| Contact Plating | Silver |
- RS Stock No.:
- 168-5626
- Mfr. Part No.:
- 932451100 CM 02 E 14S-6 P
- Brand:
- Hirschmann
