Subtotal (1 unit)*
£35.15
(exc. VAT)
£42.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 58 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £35.15 |
*price indicative
- RS Stock No.:
- 785-7878
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Accuracy | 0.003 mm | |
Resolution | 0.01 mm | |
Imperial or Metric | Both | |
Micrometer Type | Depth | |
Battery Operated | No | |
Set Contents | Barrel, Sleeve, Adjustment Tools | |
Maximum Measurement | 25mm | |
Minimum Measurement | 0mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Accuracy 0.003 mm | ||
Resolution 0.01 mm | ||
Imperial or Metric Both | ||
Micrometer Type Depth | ||
Battery Operated No | ||
Set Contents Barrel, Sleeve, Adjustment Tools | ||
Maximum Measurement 25mm | ||
Minimum Measurement 0mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

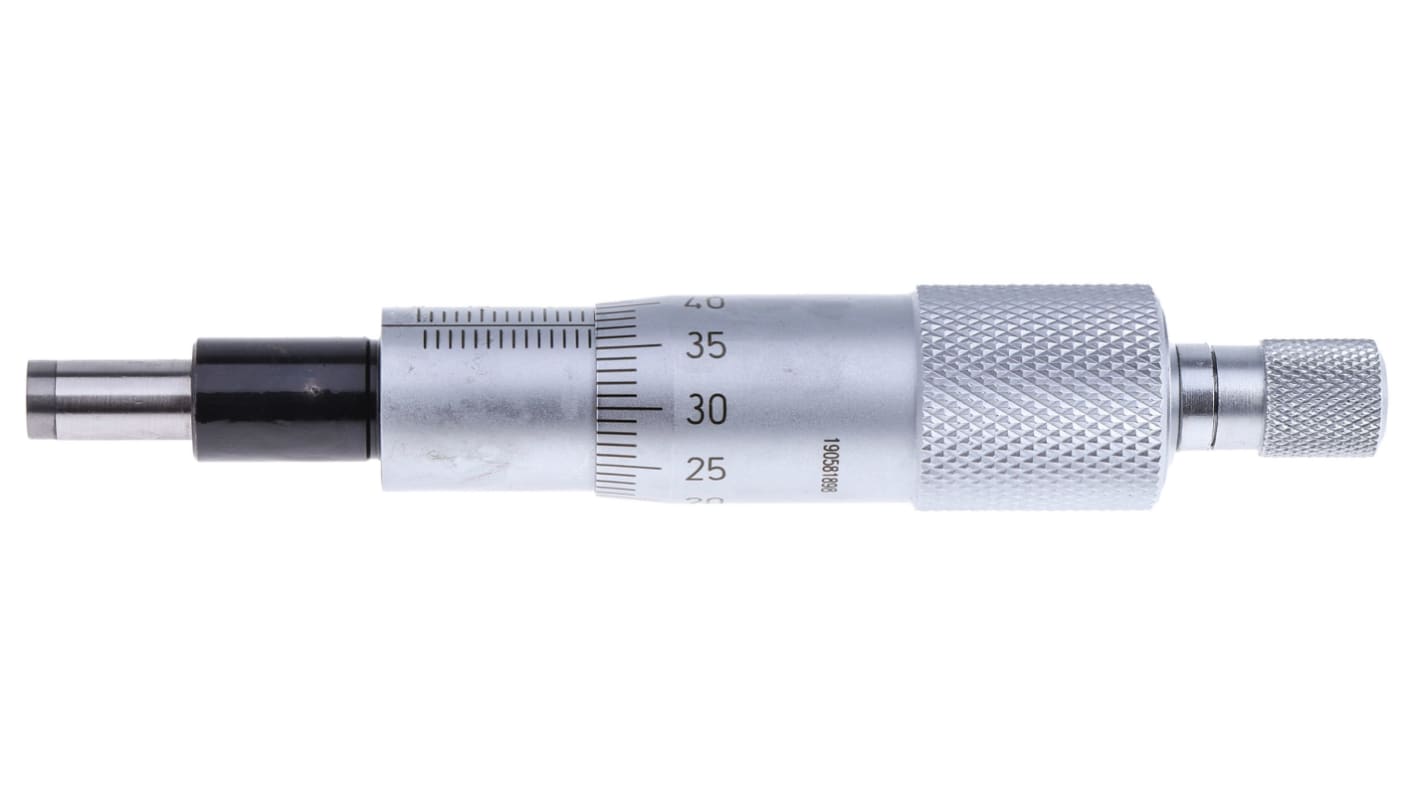

RS PRO Special Micrometer
This mechanical micrometer head is for use with a special micrometer. It has micro-fine graduations for accurate readings of up to 25 mm in engineering and maintenance applications.
The micrometer head has an anti-glare satin chrome finish, which won't reflect light sources and makes it easier to read the measurements. It's supplied with an adjustment tool for setting the anvils back to zero and calibrating for accuracy. Use it to take measurements in both metric and imperial units to an accuracy within 0.003 mm (0.0001 in).
As part of the RS PRO range, this micrometer has been thoroughly tested for reliability and quality. It conforms with DIN 863 standards for micrometer accuracy so you'll experience a minimal degree of measurement error.
This micrometer head is most commonly used in engineering workshops for accurately measuring the inner or outer dimensions of objects such as pipes.
The micrometer head has an anti-glare satin chrome finish, which won't reflect light sources and makes it easier to read the measurements. It's supplied with an adjustment tool for setting the anvils back to zero and calibrating for accuracy. Use it to take measurements in both metric and imperial units to an accuracy within 0.003 mm (0.0001 in).
As part of the RS PRO range, this micrometer has been thoroughly tested for reliability and quality. It conforms with DIN 863 standards for micrometer accuracy so you'll experience a minimal degree of measurement error.
This micrometer head is most commonly used in engineering workshops for accurately measuring the inner or outer dimensions of objects such as pipes.
Features and Benefits
• Special micrometer head
• Imperial and metric units
• Anti-glare satin chrome finish
• Minimum measurement of 0 mm
• Maximum measurement of 25 mm
• No batteries required
• Accuracy of ±0.003 mm
• Resolution of 0.01 mm
• Set contains a micrometer barrel, sleeve and adjustment tool
• Conforms to DIN 863 standards for micrometer accuracy
• Imperial and metric units
• Anti-glare satin chrome finish
• Minimum measurement of 0 mm
• Maximum measurement of 25 mm
• No batteries required
• Accuracy of ±0.003 mm
• Resolution of 0.01 mm
• Set contains a micrometer barrel, sleeve and adjustment tool
• Conforms to DIN 863 standards for micrometer accuracy
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
